Home > Electrical & Electronics > Electronic Tube & Transistor > Rectifier Diode > UV LED 280 NM 5050 Deep UV LED Sterization/ Test For Equiment

UV LED 280 NM 5050 Deep UV LED Sterization/ Test For Equiment

Name: UV LED 280 NM 5050 Deep UV LED Sterization/ Test For Equiment
Brand: sfleds
SKU: 124043385
Availability: InStock

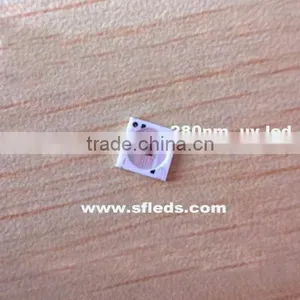

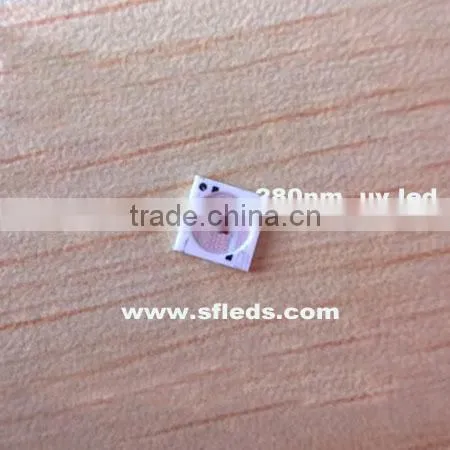

UV LED 280 NM 5050 Deep UV LED Sterization/ Test For Equiment thumbnail-1

UV LED 280 NM 5050 Deep UV LED Sterization/ Test For Equiment photo-1

US$ 36.57 - 38 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

sfleds

Model Number:

sf-uv280-5050

Contact Supplier Request Quote Chat Now

Shenzhen Shining Future LED Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenshen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name sfleds

Model Number sf-uv280-5050

Type LED

Package Type Surface Mount

Max. Forward Voltage 5.0-7.0V

Max. Reverse Voltage N/A

Max. Forward Current 20mA

Max. Reverse Current N/A

UV LED 280 NM 5050 deep UV LED sterization/ test For equiment

Product Description

Specification:

280NM SMD5050 UVC LED For Surface Sterilization
(1) 280NM
(2) 1.0-1.5MW
(3) 140 degrees
(4) 4. 5.0-7.0V, 20MA

Electrical&Optical Characteristics of 280nm UVC LED for surface sterilization

Wavelength (nm)	Part No.	Dimension (mm)	Optical Output Power Po[mW]		Voltage VF[V]		Viewing Angle	Half peak width
			IF /20mA		Voltage VF[V]		Viewing Angle	nm
			min	max	min	Max	2θ1/2(°)	Typ
277-280-283	sfleds-UV280-5050	5.451.5	1.0	1.5	6.8	7.5	140	10

Absolute Parameters of 280nm UVC LED for surface sterilization

Parameter	Unit	Max
Input Power	mW	200
Operative Current	mA	25
Pulse(frequency 1kHz,duty cycle 5%)	mA	100
Operative Voltage	V	8 (CW), 10 (Pulse)
Operative Temperature	°C	-30~+55
Storage Temperature	°C	-30~+55
Working/storage environment humidity	%	0~80

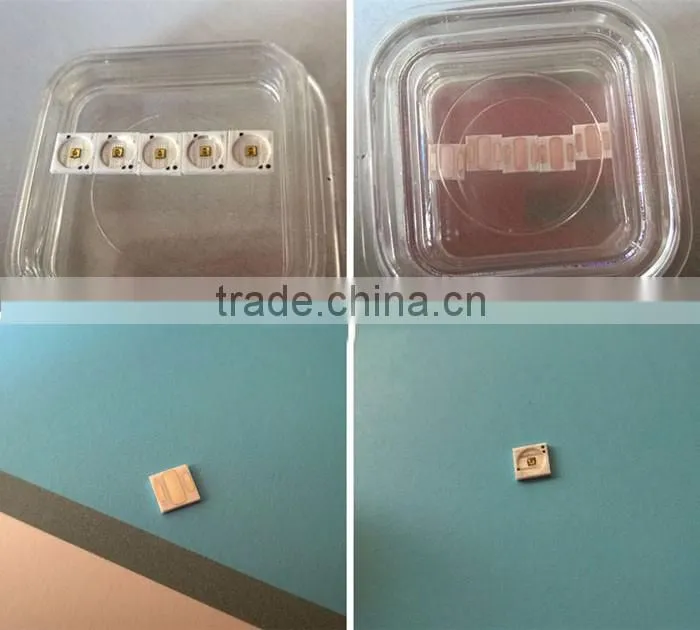

Packaging & Shipping

Packaging: 1000pcs reel

More UV led

Application list of UVLED :

Optical sensors and instruments (230-400nm)

UV authentication, barcode (230-280nm)

Surface water sterilization (240-280nm)

Detection and identification and analysis of body fluids (250-405nm)

Medical sterilization (254-280nm)

Protein analysis and drug discovery (270-300nm)

Medical light therapy (300-320nm)

Polymers and inks (300-365nm)

Multinational paper money sorter (365-375nm)

Leak (look for tiny cracks) (365-375nm)

Distinguishing (375-395nm)

Counting Detector (375-395nm)

Photocatalyst technology (375nm-400nm)

Surface sterilization / Beauty sterilization (390-410nm)

Nail (nail polish / light therapy cure) (nail polish: 395nm; extend phototherapy A: 360-370nm)
