Integrated sk6812rgbw programmable addressble rgbw led pixel tape strip
1. This is a new arrival led strip named Integrated sk6812rgbw programmable addressble rgbw led pixel tape strip are incredibly, indrecibly cool. Why we say this? Not your average RGB led strip! Not only are these can be addressable,programmed, individually cuttable, but each LED have 4 chips ( R,G,B,W) for excellent lighting effects,
2. Lit up these RGBW led strips are insanely bright and can be controlled with 8-bit PWM per channel (8 x 4 channels = 32-bit color overall). Great for adding lots of colorful + Warm white / Netrual White / Cool White.
3. The Integrated sk6812rgbw programmable addressble rgbw led pixel tape strip likes our APA102, WS2812B led strips with an embedded microcontroller inside the LED, named SK6812RGBW. You can set the brightness of each R/G/B/W. Each LED acts like a shift register, reading incoming data ont he input pins and then shifting the previous data out on the output pin .
4. Pleasae note, this Integrated sk6812rgbw addressble rgbw led pixel tape strip isn't the led strip with RGB LED + White LED or every 3pcs RGBW LEDs per copper unit.You can find the comparison between these RGBW led strips that makes you clearly.
Mechanical Dimensions:

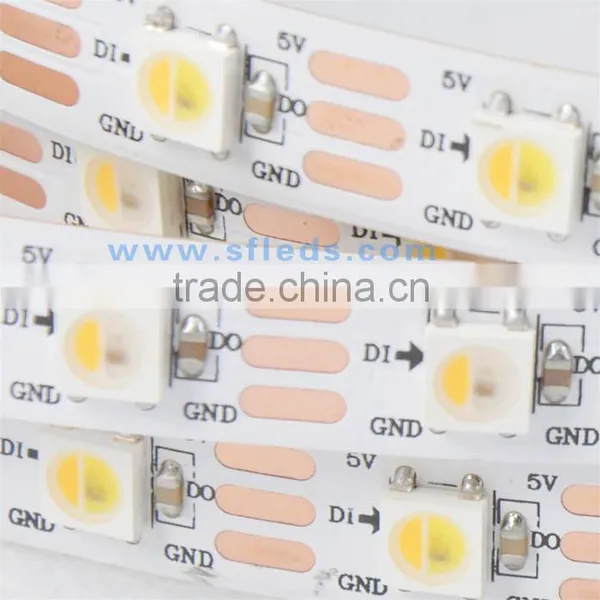

Pin figuration
NO. |
Symbol |
Function description |
|
1 |
VDD |
Power supply LED |
|
2 |
DOUT |
Control data signal output |
|
3 |
VSS |
Ground |
|
4 |
DIN |
Control data signal input
|
Name : SK6812 led strip (It can be 30led/m,60led/m72led/m 144led/m)
1. This Integrated sk6812rgbw programmable addressble rgbw led pixel tape strip noramlly is 5 meter long flexible strip of 60 individually controllable RGBW Leds, the 'W' means "white" contains Warm white , Netrual White, Cool White.

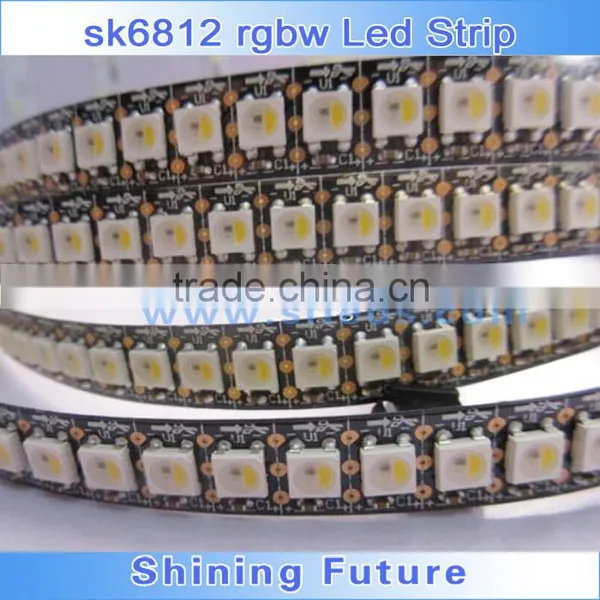

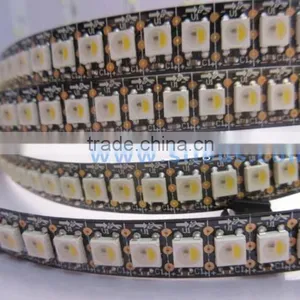

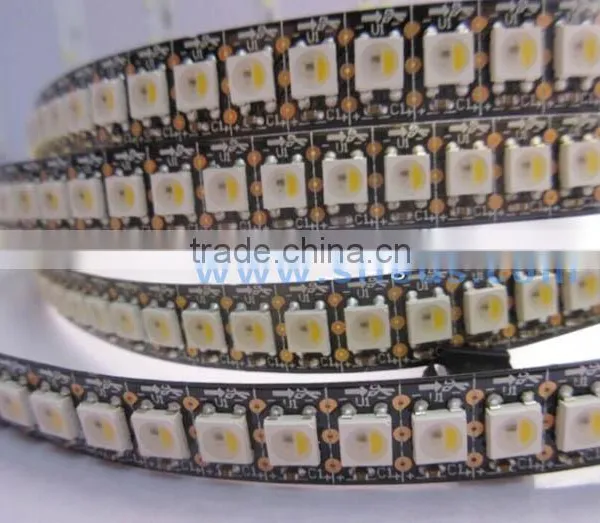

2. The RGBW led strip uses the SK6812RGBW chip, 30 leds, 60 leds and 144 leds are available.
3. The LEDs are controlled by shift-registers built into each lamp. In order to drive the strip you need 5v, GND and Data - easy! Once the registers are loaded, you can stop sending data.
4. Strip can be cut into sections and still work, or, if you need something longer, they can be daisy chained with other strips to build huge displays capable of basic video frame rates
5. These strips have a maximum voltage of 5V - anything higher will blow them up!
Example Compare between 60 leds RGBW led strip
|
Product
|
Addressable RGBW LED strip |
RGBW LED strip |
RGB LED + White LED strip |
|
Operating voltage
|
DC5V |
DC12V / 24V |
DC12V |
|
Integrated IC driverr
|
SK6812RGBW |
TM1814 |
none |
|
LEDs quantity
|
60 RGBW leds |
60 RGBW leds |
30 RGB leds + 30 White LEDs |
|
Control model
|
Addressable |
Every 3 pcs / 6 pcs leds |
RGB changing + static white color |
Image |
|
|
|
Cuttable length |
16.66mm |
5cm / 10cm |
10cm |
Bare board color |
White and Black |
White |
White |
|
Standard length
|
5m/roll |
5m/roll |
5m/roll |

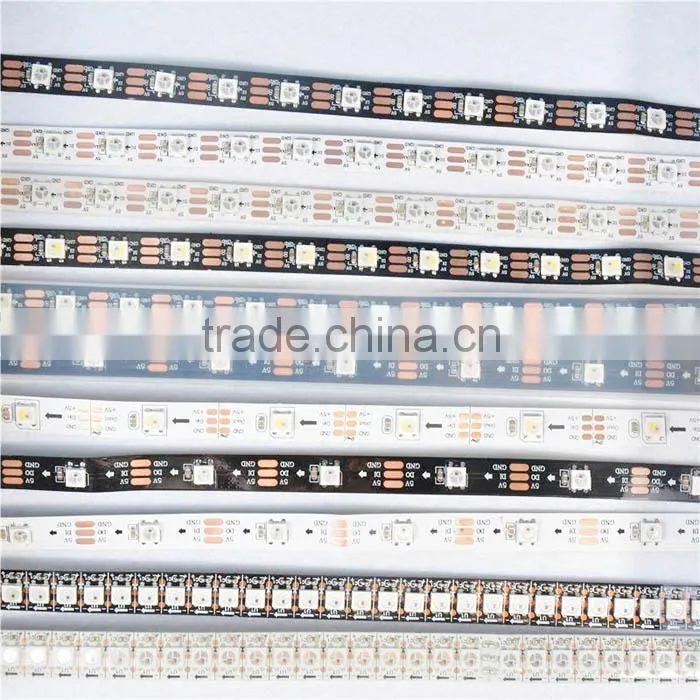

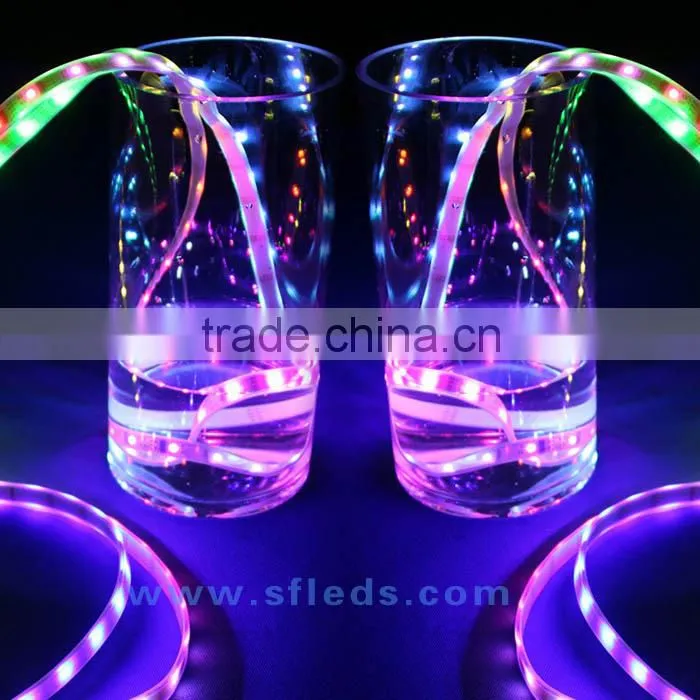

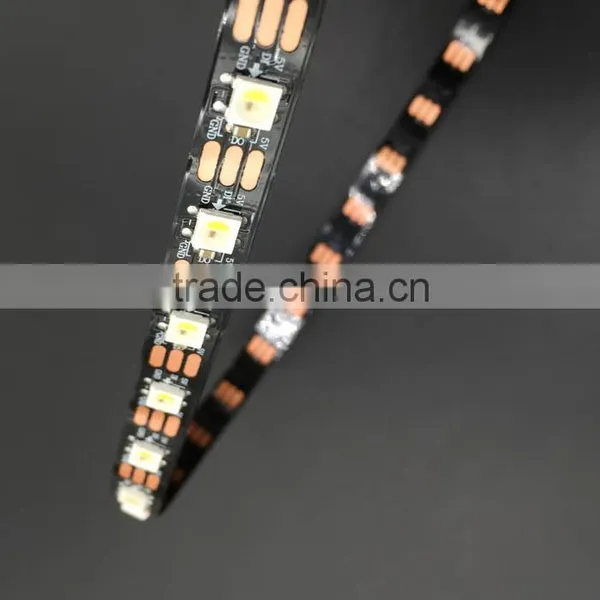

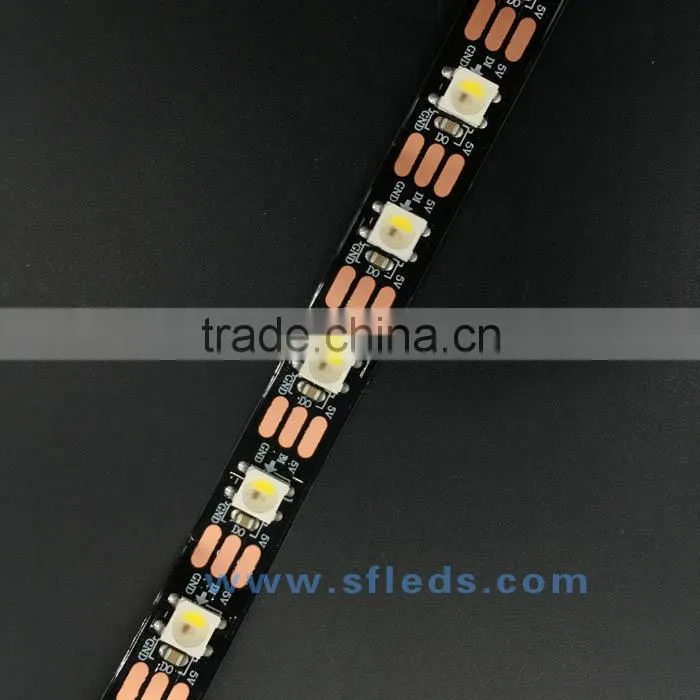

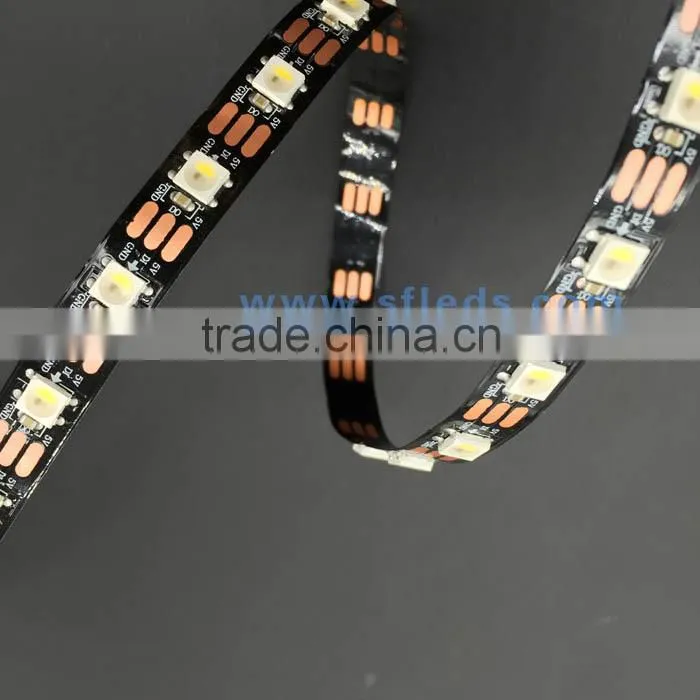

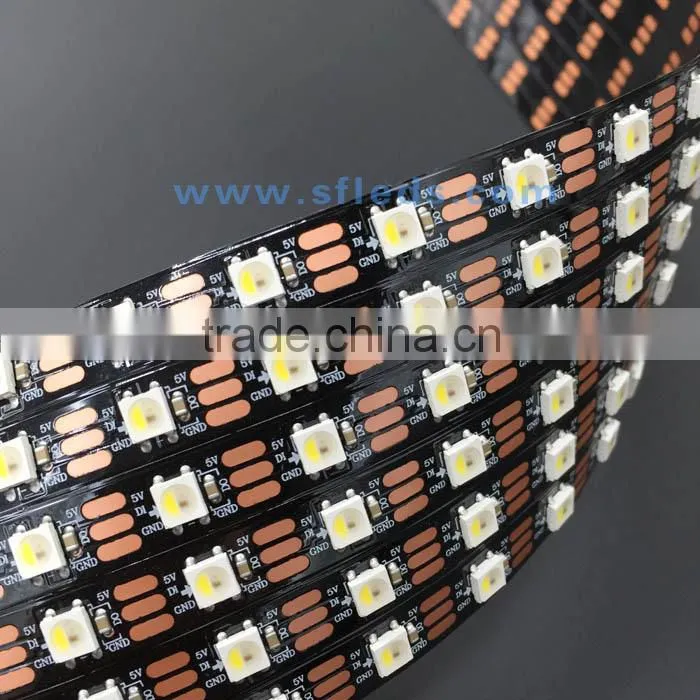

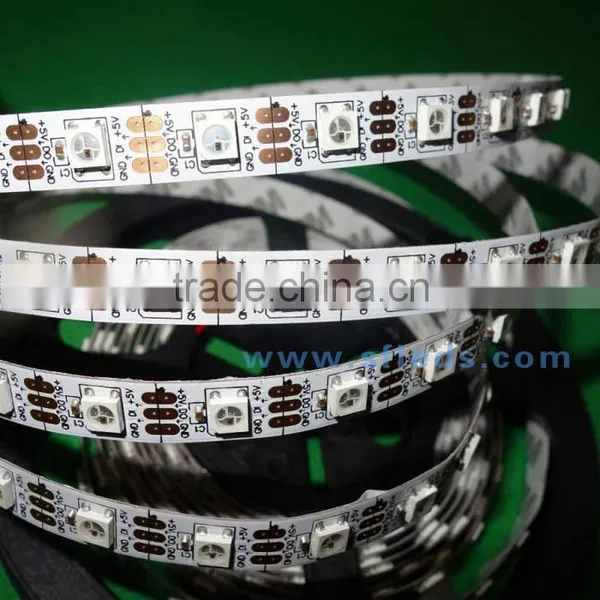

Show pictures:
SK6812 LED Strip is our new design, it use SK6812 LED to be the light source, it is similar as WS2812B LED Strip, to some extent it can instead of WS2812B, Since it can be compatible with WS2812b controller and have the same function with WS2812B. Of course it also have 3 Wire output : Data ,GND ,Anode, build-in IC, white/black PCB optional. 256 gray levels, the effect can be achieved by controller, such as letters, numbers, pictures, animations, and so on.
