Specifications
LPD8806 LED Strip 1.Colorful and waterproof 2.High quality and reasonable price

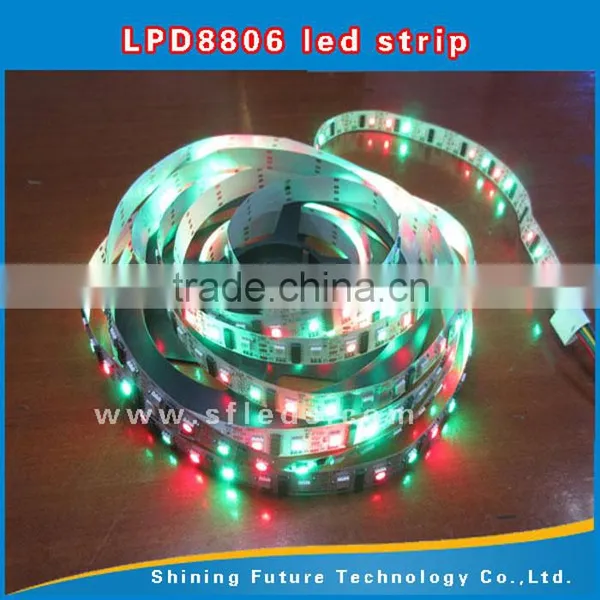

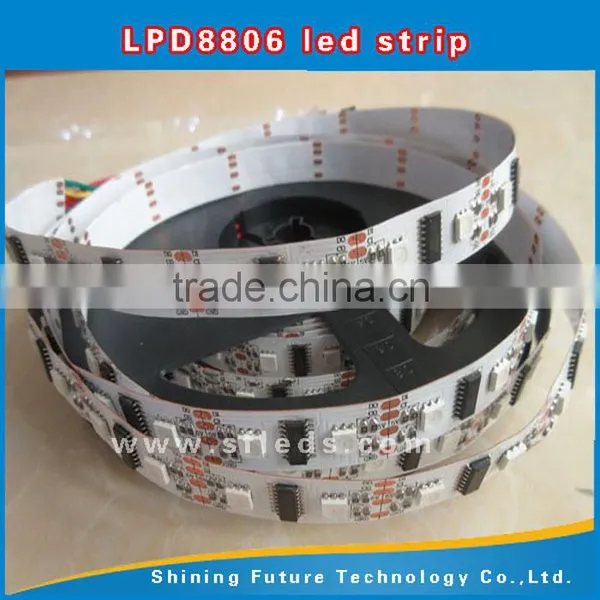

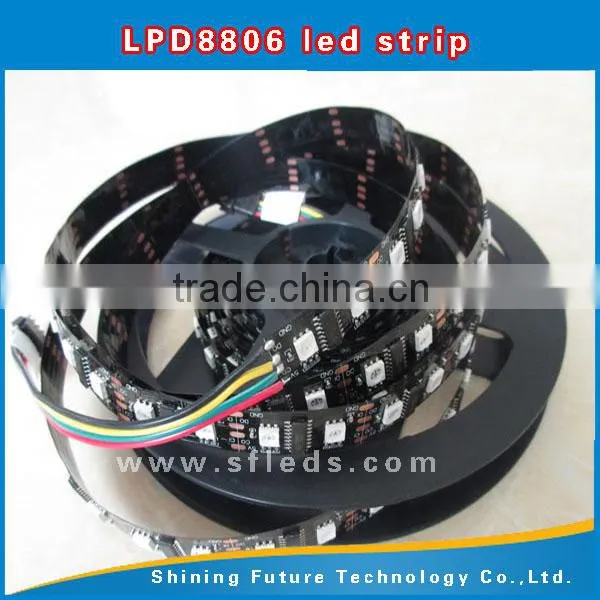

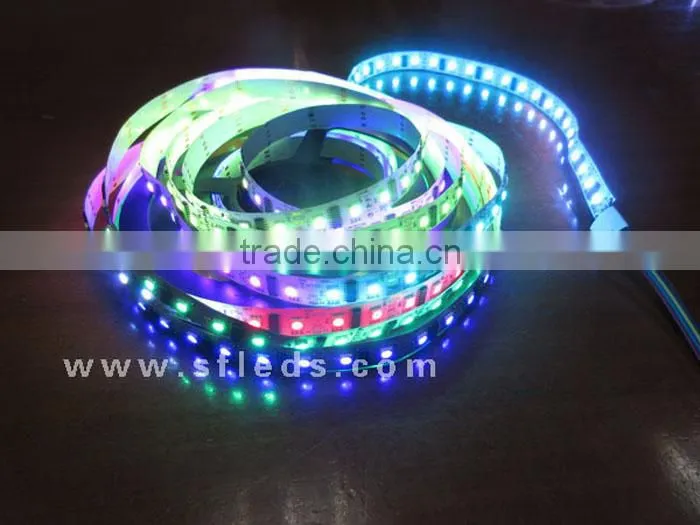

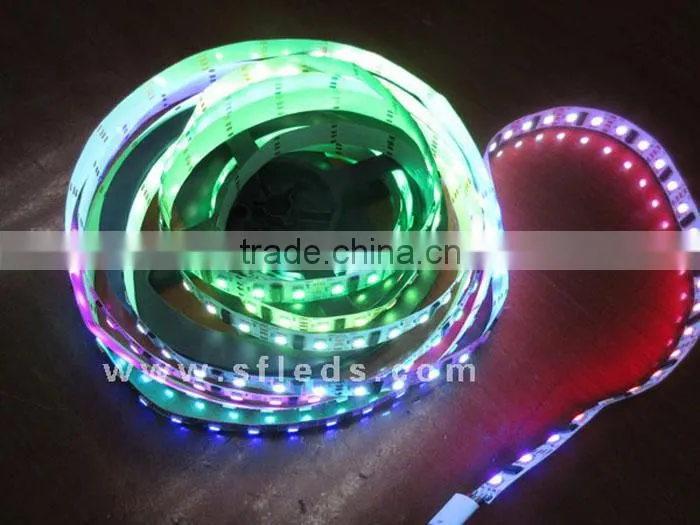

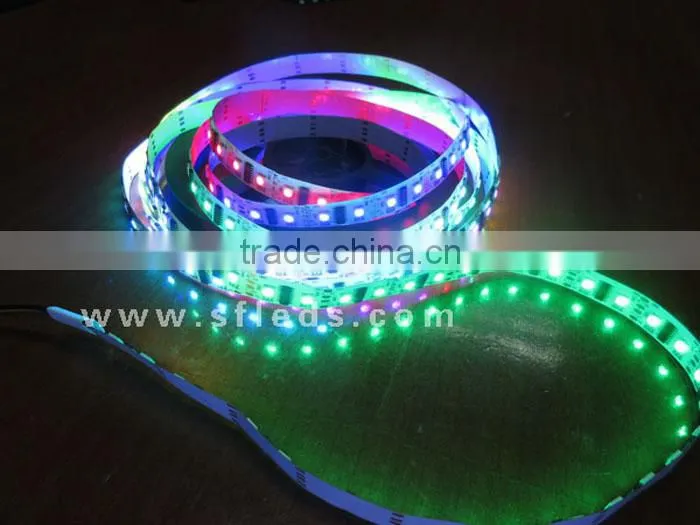

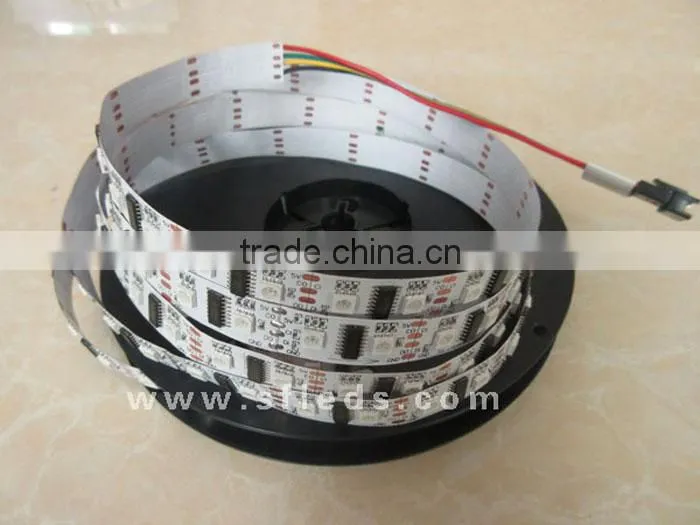

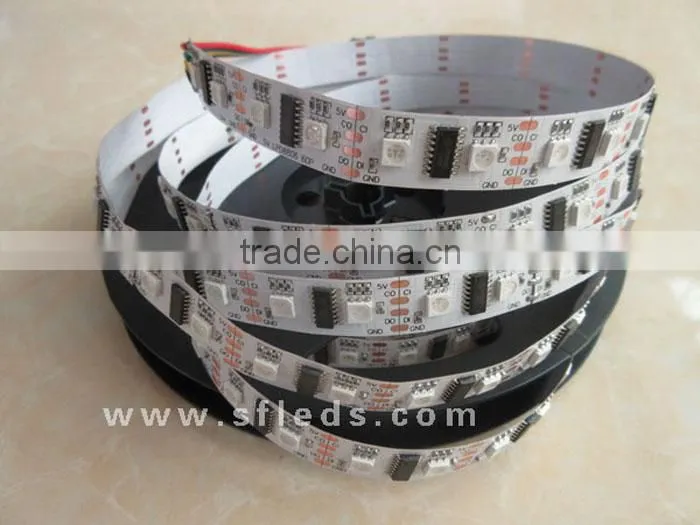

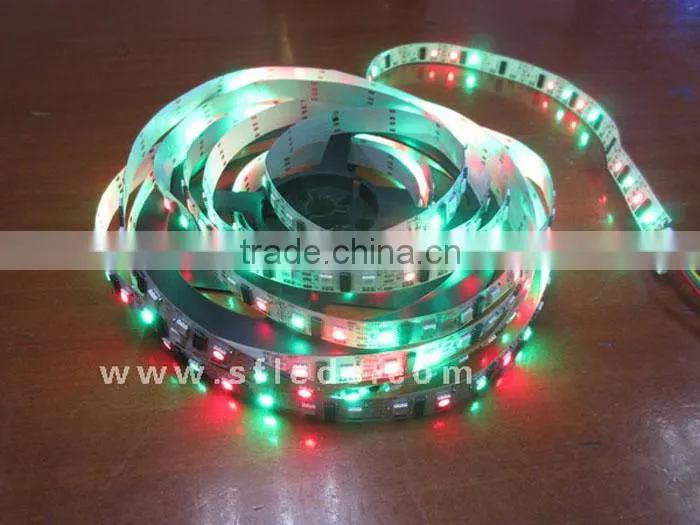

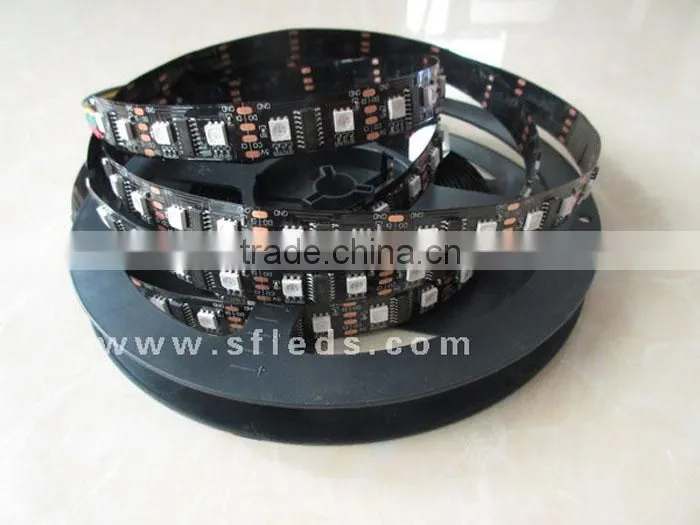

LPD8806 36LEDs/m led strip adressable 12v
These digital addressable LPD8806 LED strips can display 2 million colors per pixel and each LED can be controlled individually The LPD8806 is a lot like the WS2801 with the following differences:. It works from 2.7V up and has six channels allowing it to control two RGB LEDs. The downside is that it only does 7 bit PWM, making 127 brightness levels per LED for up to 21 bit color (2 million colors). An addressable RGB LED strip is a long flexible strand of LEDs each of which can be individually set to a certain color... (hence: addressable) By varying the level of red, green and blue (RGB) per LED many color combinations can be made The chips between the LEDs listen to commands from a controller This can be an Arduino or other microcontroller or a controller specifically designed for LED strips.These intelligent LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
Related Products

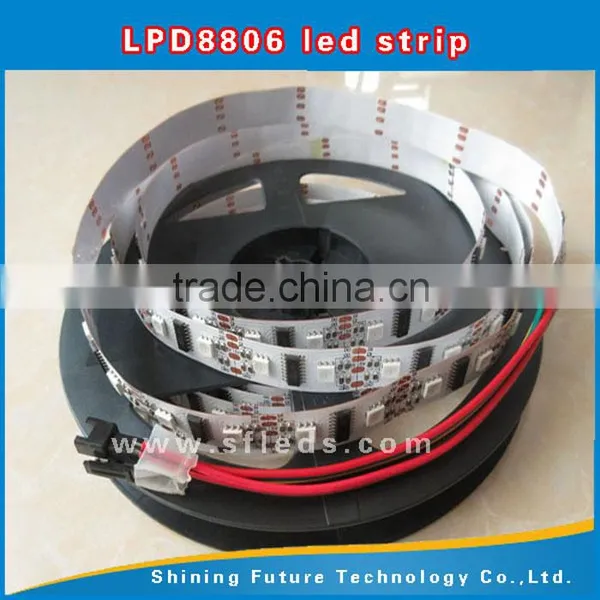

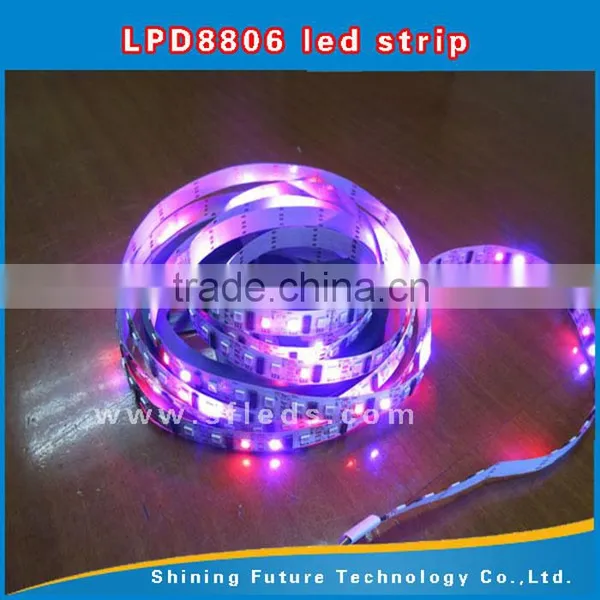

DC 5V RGB IC Flexible Led Strips: LPD8806 LED strip
Item number: SFLEDS-5050RGB-PLD8806-5V
Quick Details:
- LED Light Source: LED
- Type: Flex LED Strips
- Input Voltage(V): 5V DC
- Lamp Power: 10W/M.15.6W/M
- CRI (Ra>): 80
- Color Temperature(CCT): RGB
- Working Temperature(°C): -20 - 50
- Working Lifetime(Hour): 50000
- Lamp Body Material: Copper
- Certification: CE, RoHS
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: SFLEDS
- Model Number: SFLEDS-5050RGB-LPD8806-5V
- IP rating: IP20/IP65/IP67
- Emitting color: Super bright RGB
- Package: 5m/reel
- LED Light Source: SMD5050
- IC Type: LPD8806
- IC quantity:30/32/48/52/60pcs/meter
- Led quantity: 15/16/24/26/30pcs/meter
- Size: 5000*15*2.5 (non-waterproof)
Advantages
+ 5V
GND
CLK
DAT
1,One data line,one Clock line, two power lines
2,15MM wide white plates, 256 gray scale
3,the controller can achieve any effect can also be achieved, text, numbers, English, pictures, animations, and so on. Matching controller: Sf-T1000S
Installation :
1.Signal wire:DC+,DAT,CLK,GND
2.DC+ and GND connnect to power ,DAT, CLK and GND connect to controller

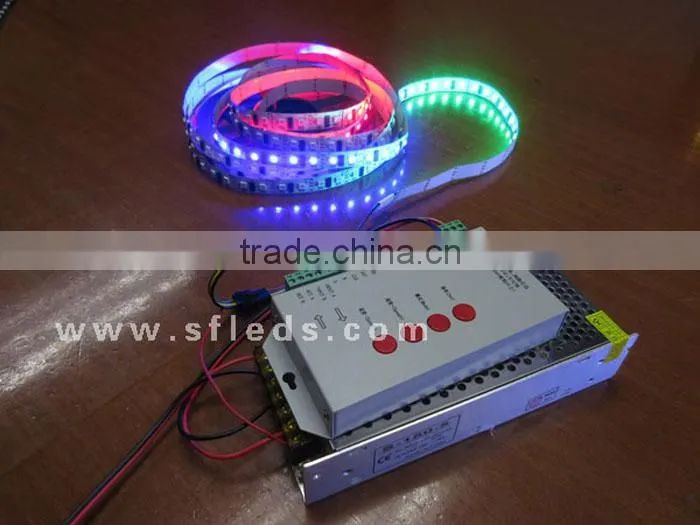

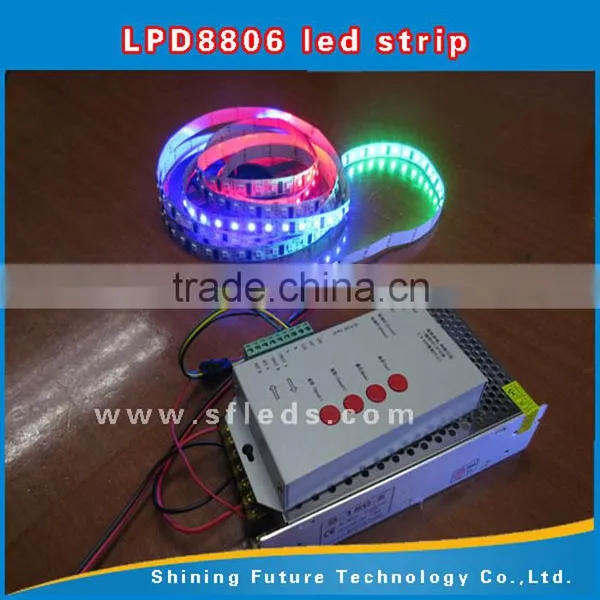

3.Relative controller:SPI controller support lpd8806,when use DMX decorder ,can connect to DMX system.
Sf-T-1000S,Sf-T-8000C for off-line working, Sf-T-200K,300K for on-line working, they are compatible with DMX,arduino as well.
Application:
1) Ideal for decoration of building outlines, landscape illumination, amusement themes,
2) Holiday light sculpture, decorative figure, active signs, displays, shop windows
3) And storefronts, bar, nightclub, street, sidewalk, deck, park, porch, staircase, railing, ceiling, or driveway.

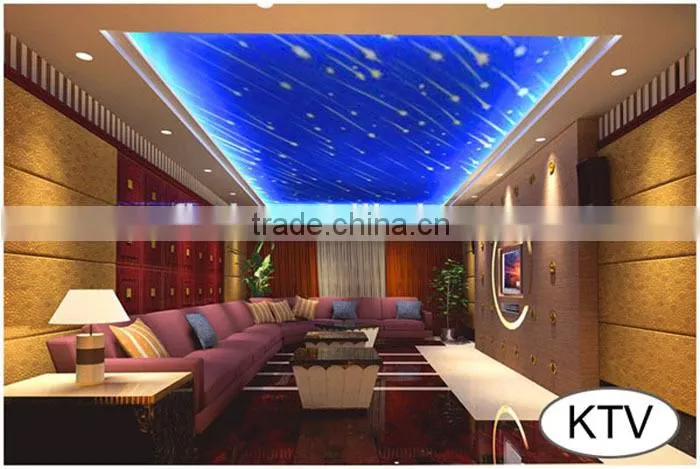

4) For villa decorative lighting, shopping malls decorative lighting, bridge lighting, squares lighting, suitable for restaurant, hotel, KTV, disco, night clubs,
5) such as the beautiful landscape of the high-end entertainment. High brightness, good flexibility, easy device, colorful diverse, home decoration, concerts, fashion shows, and so on, can be used as the preferred.
What are our advantages.
1.5 years experience in led emitting diodes and 3 years experience in led indoor and outdoor illumination.
2.2 years warranty of quality.
3.3 to 7 work days lead time.
4.paypal, west union or T/T payment terms.
If the product has something bad, the next order we will supply to you. Large orders, we will send a little more spare products to you.
Send your Inquiry Details in the Below, Click "Send" Now!
For more pictures and catalogue, please ask for us freely, thanks a lot!
For more products,please see our websites
Welcome your inquire,thank you!!
