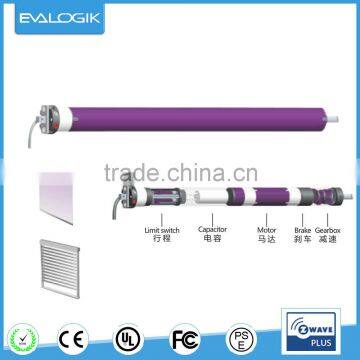

High Quality Smart Home Auto-curtain Motor With CE Certificate(ZW42B)
US$ 55 - 98
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
EVA LOGIK
Model Number:
ZW42B
Type:
Other, Synchronous Motor, Curtain Poles, Tracks & Accessories
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CE Certiified Smart Home Auto-curtain Motor (ZW42A)US$ 60 - 100MOQ: 1 Piece -
CE Certiified Tubular Motor for Roller Shutter, Smart Home SystemUS$ 55 - 98MOQ: 1 Piece
-
CE Certified Automatic Window Opener for Smart Home System (ZW43)US$ 110 - 161MOQ: 1 Piece
-
CE Certified Tubular Motor for Roller Shutter, Home AutomationUS$ 55 - 98MOQ: 1 Piece
-
Z-Wave Smart Tubular Motor for Roller Shutter ,home AutomationUS$ 55 - 98MOQ: 1 Piece
Brand Name
EVA LOGIK
Model Number
ZW42B
Type
Other, Synchronous Motor, Curtain Poles, Tracks & Accessories
Frequency
Trinal-Beams-active-Infrared-zigbee-sensor, 868.2MHz/865.2MHz/908.2MHz/921.2 MHz/869.0MHz
Output Power
40W
Protect Feature
Totally Enclosed
Phase
Single-phase
Certification
CE, ROHS
AC Voltage
208-230 / 240 V
Place of Origin
Guangdong, China
Efficiency
IE 2
Technical data & Instructions
Introduction
This Z-wave motor is a standard motor, smooth running, low noise & easy installation, suitable for electric blinds,electric shutter, electricscreens etc..
Technical data
| Rated voltage | AC 230V 50Hz / 120V input |
| Rated currency | 0.6A |
| Rated power | 140W |
| Rated torque | 10N.m |
| Rail | not include (sample included 1m rail) |
| Roller curtain including control panel | |
| Range | Min 30m line of sight |
| Frequency | 868.2MHz/865.2MHz/908.2MHz/921.2 MHz/869.0MHz |

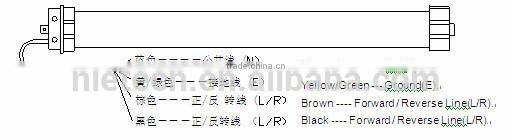

Control Panel Wiring Diagram
The switch on Panel(On, Stop & Off) control motor’s CW, Stop & CCW.
Quickly press panel switch 3 times to add in to Gateway.
Safety and maintenance instruction
- Make sure that all electric connections and connection cables meet the pertaining regulations and are in conformity with the operating instruction.
- Do not overload electrical outlets or extension cords, fire or electric shocks can be the result.
- Please contact an expert in case you have any doubts about the mode of operation, the safety or connecting the appliances.
- Keep all parts away from young children’s reach.
- Do not store this item on wet, very cold or warm places, this can damage the electronic circuit boards.
- Avoid dropping or shocks, this can damage the electronic boards.
- Never replace damaged power cables yourself! In such case, remove them from the net and take the devices to a workshop.
Maintenance
The devices are maintenance-free, so never open them. The guarantee becomes void when you open the appliance. Only clean the outside of the devices with a soft, dry cloth or a brush. Prior to cleaning, remove the devices from all voltage sources.
Warranty 1 year
