Specifications
CNC 1325 Wood Cutting Machine1. Lifetime technical support
2. Factory price
3. World top components
4. CE, ISO
CNC 1325 Wood Cutting Machine with 16 Years Experience
This type CNC is a great choice for sign making, parts fabrication and simple woodworking. It offers economical routing of complex or simple designs along with dependability, ease-of-use, and minimal maintenance. The cut quality will impress both end users and your customers.
Both the steel table-frame and gantry are manufactured to the highest standard, ensuring outstanding rigidity. All 3 axes are powered by economical, reliable and quiet Stepper motorswhich provide a good mix of torque and power. Upgrades to AC Servo motors are available. The X and Y axes run on Taiwan linear bearings and rails to ensure smooth and accurate travel. These bearings are factory-sealed and provide maintenance free reliability.

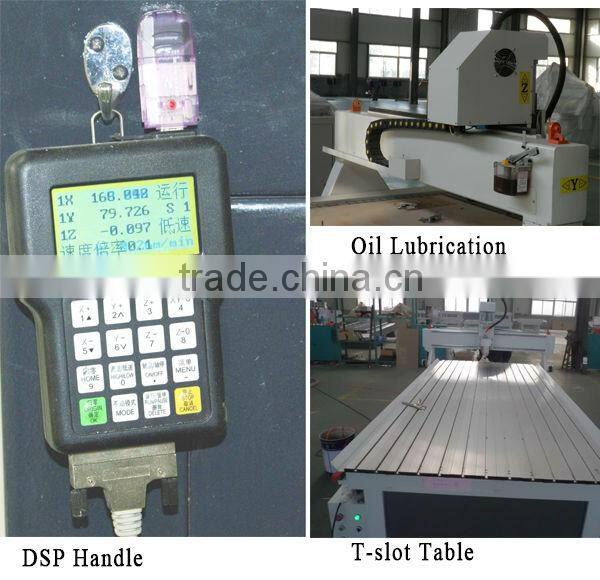

Materials are held down with aluminum T slot and its fixtures. All these components are driven by the easy-to-use DSP handle CNC controller.
Key features:
1. Seamless steel lathe bed
2. Taiwan linear guide
3. Helical rack and pinion
4. Well compatibility: type 3, castmate, artcam, etc
5. Re-carving function after power failure
6. Stepper motors
7. Oil-injection system
Standard sizes:
1300mm*2500mm
1500mm*3000mm
2000mm*3000mm
2000mm*4000mm
Custom sizes and upgrades for the components are available on request.
SPECIFICATION |
GY-M1325B |
GY-M1530B |
GY-M2030B |
GY-M2040B |
|
Working Area (X Axis) |
1300mm |
1500mm |
2000mm |
2000mm |
|
Working Area (Y Axis) |
2500mm |
3000mm |
3000mm |
4000mm |
Clearance (Z Axis) |
200mm |
|||
Spindle |
3.5kw air-cooled/3kw water-cooled |
|||
Spindle Speed |
Adjustable 0-24,000 rpm |
|||
Tool Change |
Manual Tool-Change |
|||
|
Drive System (X & Y Axes) |
Helical Rack & Pinion |
|||
|
Drive System (Z Axis) |
Ball Screw |
|||
Drive Motors |
Stepper/servo motors |
|||
Inverter |
Fuling |
|||
Driver |
Yako |
|||
Command |
G code |
|||
Cutter diameter |
φ3.175-φ12.7mm |
|||
Maximum Travel Speed |
35m/min |
|||
Table Top |
T slot hold down fixtures (aluminum T slot is protected with PVC) |
|||
Controller |
DSP handle |
|||
Power Requirements |
3-phase 380V/50HZ, 220V for option |
|||
Note:
All the parts of machine can do some changes to meet your requirements.
Such as the motor (stepper motor or servo motor), spindle (air cooled or water cooled, HSD or Chinese brand), table of the machine (vacuum table, T-slot table or combination of T-slot & vacuum table) and operating system (DSP, Weihong or Syntec), etc.
Optional parts:
1. Rotary axis
2. Alignment pop-up pins/stoppers
3. Gang drill CNC 1325 Wood Cutting Machine
4. More spindles
5. Heavy duty lathe bed, etc.
Ideal for:
1. Timber
2. MDF CNC 1325 Wood Cutting Machine
3. Plastics
4. Aluminum composite
5. Soft metals
6. Acrylic and much more
Processing effect:
Engraving, cutting, drilling, milling, enchase, relief, etc.

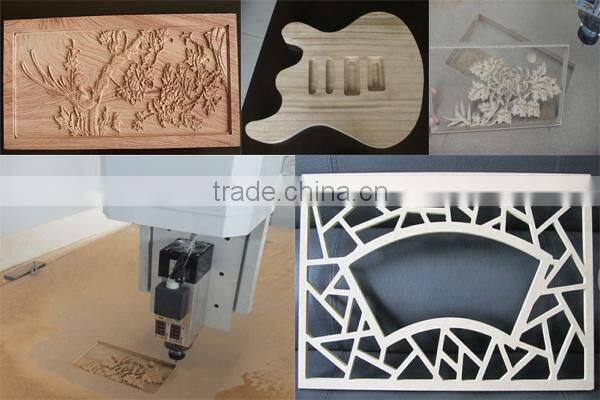

Samples:
Service & guarantee:
1. Technical supports and suggestions before you order a machine according to your work piece.
2. Professional instruction for the operation of the machine
3. One year warranty, we will provide the consumable parts at cost price after the warranty period.
4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications.
5. 24-hour technical support by email or calling.
1. How could I know if this machine is suitable for me?
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided.
2. Is your machine cost-effective?
Our factory was established in 1998, with years of experience and countless tests, we have groped the perfect standard configurations for each type of the machine. You can be rest assured about the high performance of our machine.
3. How does it work?
Under CNC Machining, machine tools function through numerical control. A computer program is customized for an object and the machines are programmed with CNC machining language (called G-code) that essentially controls all features like feed rate, coordination, location and speeds. With CNC machining, the computer can control exact positioning and velocity.
