Specifications
Big Size CNC Machine1. Facotry price
2. Customized service
3. Lifetime technical support

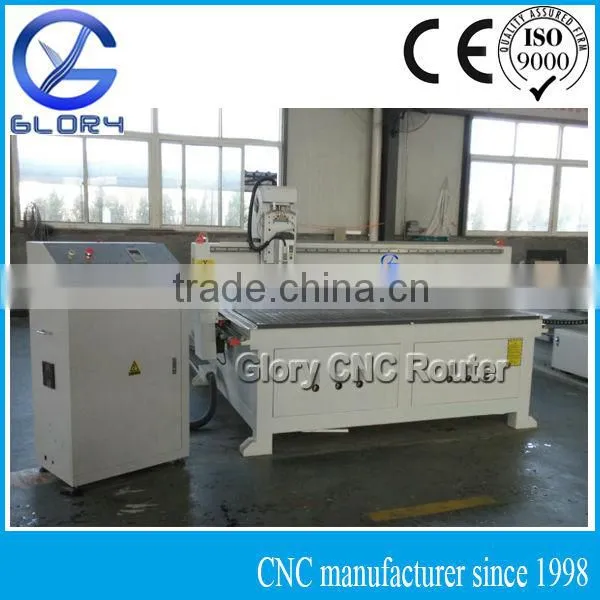

Big Size CNC Machine with 2030 Working Area
Key features:
1. Seamless steel lathe bed
2. Taiwan linear guide
3. Helical rack and pinion
4. Well compatibility: type 3, castmate, artcam, etc
5. Re-carving function after power failure
6. Stepper motors
7. Oil-injection system big size cnc machine
Ideal for:
1. Timber
2. MDF
3. Plastics
4. Aluminum composite
5. Soft metals
6. Acrylic and much more big size cnc machine
Processing effect:
Engraving, cutting, drilling, milling, enchase, relief, etc.
Standard sizes:
1300mm*2500mm
1500mm*3000mm
2000mm*3000mm
2000mm*4000mm
etc big size cnc machine
Custom sizes and upgrades for the components are available on request.
SPECIFICATION |
GY-M2030A |
|
Working Area (X Axis) |
2000mm |
|
Working Area (Y Axis) |
3000mm |
Clearance (Z Axis) |
200mm (300mm optional) |
Spindle |
4.5kw air-cooled |
Spindle Speed |
Adjustable 0-18,000 rpm |
Tool Change |
Manual Tool-Change |
|
Drive System (X & Y Axes) |
Helical Rack & Pinion |
|
Drive System (Z Axis) |
Taiwan ball screw |
Drive Motors |
4 sets stepper/servo motors (servo suggested) |
Inverter |
Fuling/Delta |
Driver |
Yako/Yaskawa |
Command |
G code |
Cutter diameter |
φ3.175-φ12.7mm |
Maximum Travel Speed |
35m/min |
Table Top |
Grid/vacuum table tops with absorption function |
Vacuum pump |
5.5kw water cooled |
Controller |
DSP handle |
Power Requirements |
3-phase 380V/50HZ, 220V optional |
Optional parts:
1. Rotary axis
2. Alignment pop-up pins
3. Gang drill
4. More spindles
5. Heavy duty lathe bed, etc. big size cnc machine
Service & guarantee:
1. Technical supports and suggestions before you order a machine according to your work piece.
2. Professional instruction for the operation of the machine
3. One year warranty, we will provide the consumable parts at cost price after the warranty period.
4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications.
5. 24-hour technical support by email or calling. big size cnc machine
Samples
Related machines
Factory
Welcome to visit our factory at any time. : )
Skype/Wechat: jeanh007
Facebook&LinkedIn: Jinan Glory Import and Export Trading Co.,Ltd
