Specifications
CNC Router with Rotary Axis1. 2D&3D effect
2. Multi function,save cost
3. Factory price
4. Customized service
Glory Multi Function CNC Router with Rotary Axis
Product Highlights:
1. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.
2. Three axes adopt Taiwan brand linear guide rail with high precision.
Z axis adopts imported Germany or Taiwan made ball screw, so high precision and long life time using are assured. cnc router with rotary axis

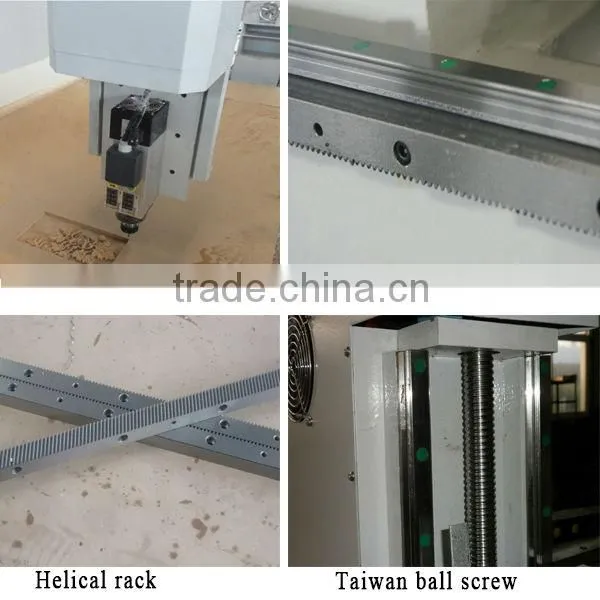

3. X and Y axis is transmitted by helical rack and pinion. This makes the machine work faster and has larger cutting force compared with ball screw transmission.
4. Well compatibility: CAD/CAM designing software, such as type3/castmate/wenti/artcam, etc.
5. This machine has the function of re-carvingafter break point or power failure and it can estimate the processing time.
6. Manual/automatic oil-injection system allows the machine maintenance mush easier.

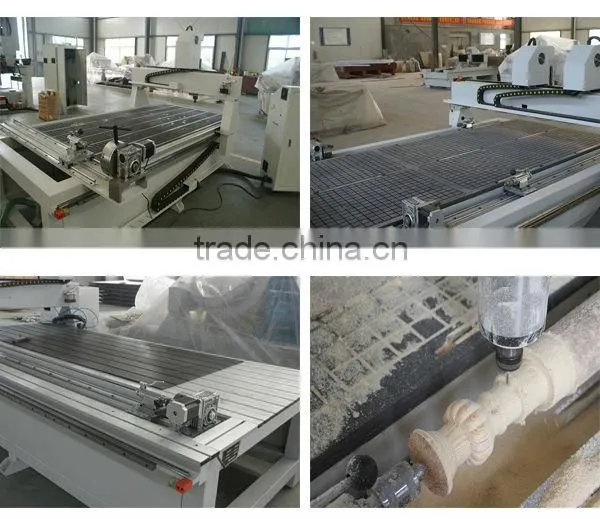

7. The 4th rotary system, so the machine can be cylinder working and plane working.
8. Dust-collection device and considerate oil plate can always keep the working table clean.
9. High soft and famous brand electric cables with high abrasion, fold, high temperature, acid or alkali resistance.
10. We will provide you several kinds of software for free, with English and multilingual versions. Also you will get the picture storage with thousands of 2D and 3D designs.
11. Along with the machine, some spare parts, work fixtures and tools will be packed into the tool box. cnc router with rotary axis
12. Whole machine packed with fumigation-free IPPC wooden case.
Description |
Parameter |
Optional |
X Y working area |
1300*2500mm |
1500*3000mm 2000*3000mm etc |
Z working area |
300mm |
|
4th rotary axis diamter |
200mm |
|
Table size |
1440*3040mm |
|
Resolution |
0.01mm |
|
Max idling speed |
35m/min |
|
Spindle |
3.5kw |
Italy HSD |
Working mode |
Stepper |
Servo |
Operating system |
DSP handle/Weihong |
|
Cooling mode |
Air-cooled |
|
Fixing |
By suction and clamp |
|
Ball screw |
Taiwan brand |
HIWIN |

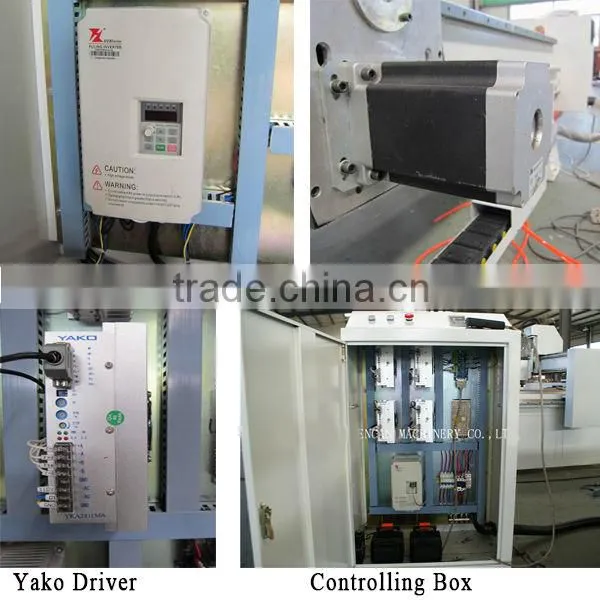

Driver |
Yako drivers |
Servo drivers and motors |
Inverter |
Fuling brand |
|
Spindle rotating speed |
0-24000r/min |
0-18000r/min |
Power supply |
AC220V/50-60Hz or 380V/50-60HZ |
|
Command |
G code, HPGL, U00, mmg, plt |
|
Rack and pinion |
Helical, module 1.25 |
|
Diameter of cutter |
φ3.175-φ12.7mm |
|
Weight |
Approx 1500kg |
|
Custom sizes and upgrades for the components are available on request.
Optional parts:
1. Weihong/Syntec controller
2. Alignment pop-up pins
3. Aluminum T slot table
4. More or less spindles cnc router with rotary axis
5. Heavy duty lathe bed
6. Water-cooled spindles
7. Different power requirements
8. Servo motors, etc.

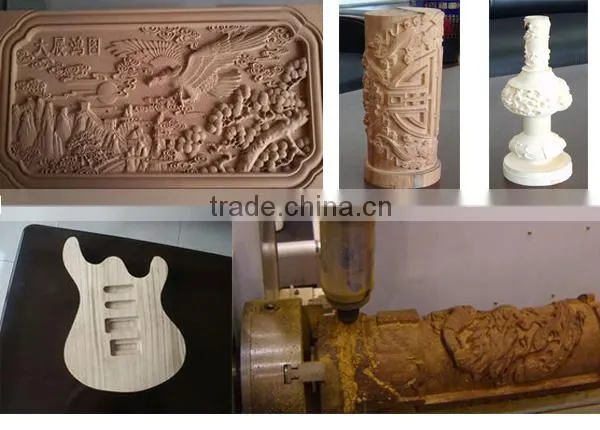

Processing effect:
Engraving, cutting, milling, drilling, shade vulture, relief, etc. cnc router with rotary axis
Applicable materials:
Wood, aluminum board, plastic, density board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials.
Applicable industries:
1.Wood processing: processing of various furniture such as door, window, cabinet, craft wooden door, screen and so on. cnc router with rotary axis
2.Advertisement: engraving and cutting various labels and number plate.
3.Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Service & guarantee:
1. Technical supports and suggestions before you order a machine according to your work piece.
2. Professional instruction for the operation of the machine
3. One year warranty, we will provide the consumable parts at cost price after the warranty period. cnc router with rotary axis
4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications.
5. 24-hour technical support by email or calling.
1. I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or Skype.
Moreover, you could come to our factory to learn how to use it before shipment. Our technician will give you professional guidance.
2. How could I know if this machine is suitable for me?
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided.outer with rotary axis
3. How does it work?
Under CNC Machining, machine tools function through numerical control. A computer program is customized for an object and the machines are programmed with CNC machining language (called G-code) that essentially controls all features like feed rate, coordination, location and speeds. With CNC machining, the computer can control exact positioning and velocity.
