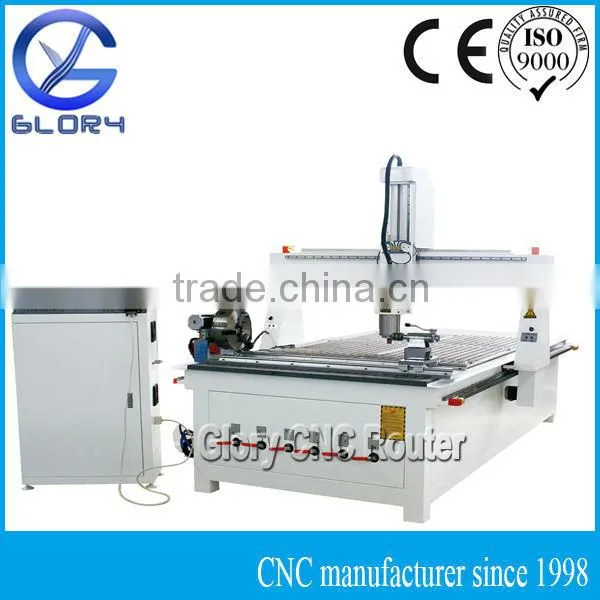

3D CNC Machine for Making and Engraving

Name: 3D CNC Machine for Making and Engraving
Brand: Glory
Price: USD $5,000 - 8,000 / Set

FOB Price

USD $5,000 - $8,000 / Set

1 Set(Min.Order)

Product Details

Condition:	New	CNC or Not:	CNC	Place of Origin:	Shandong, China
Brand Name:	Glory	Model Number:	GY-M1325AG	Voltage:	220V/380V
Power(W):	varied	Dimension(LWH):	305020001780mm	Weight:	1600kg
Certification:	CE, ISO	Warranty:	1 year	After-sales Service Provided:	Engineers available to service machinery overseas

CNC Machine
4 axis
2D and 3D effect
Factory price
ISO, CE certified

CNC Machine

Product Features
1.	Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe bodyis stabilized and will not be deformed forever.
2.	Axes adopt Taiwan brand linear guide rail with high precision.
3.	Z axis adopts imported Germany or Taiwan made ball screw, so high precision and long life time using are assured.
4.	X and Y axis is transmitted by helical rack and pinion. This makes the machine work faster and has larger cutting force compared with ball screw transmission.
5.	Well compatibility: CAD/CAM designing software, such as type3/castmate/wentai/artcam/autocad, etc.
6.	This machine has the function of re-carving after break point or power failure and it can estimate the processing time.
7.	Manual/automatic oil-injection system allows the machine maintenance mush easier.
8.	Dust-collection device and considerate oil plate can always keep the working table clean.
9.	High soft and famous brand electric cables with high abrasion, fold, high temperature, acid or alkali resistance.
10.	We will provide you several kinds of software for free, with English and multilingual versions. Also you will get the picture storage with thousands of 2D and 3D designs.
11.	Along with the machine, some spare parts, work fixtures and tools will be packed into the tool box.
12.	Whole machine will be wrapped with cling plastic and then packed into fumigation-free IPPC wooden case.

Technical Parameters
X axis working area	1300mm
Y axis working area	2500mm
Z axis working area	300mm
Rotary axis	125mm/200mm*1500mm
Precision	0.01mm
Spindle	3.5kw air cooled/3kw water cooled
Spindle Speed	Adjustable 0-18,000 rpm
Drive System (X & Y Axes)	Diagonal rack & pinion
Drive System (Z Axis)	Taiwan/German ball screw
Guide Rail	Taiwan square guide rail
Lubrication	Manual oil-injection system
Drive Motors	Stepper motors
Driver	Yako
Inverter	Fuling
Command	G code
Cutter diameter	3.175-20mm
Maximum Idling Speed	60m/min
Maximum Engraving Speed	30m/min
Table Top	Vacuum table/T slots table
Controller	DSP handle/NC Studio
Power Requirements	380V, 3ph We can change it to your local voltage
Other table sizes	600900mm 12001200mm 15003000mm 20004000mm,etc
Optional	1. Alignment pop-up pins/stoppers 2. Gang drill 3. Customized table size 4. Other working area for rotary axis 5. Automatic oil-injection system,etc

Application
1. Timber/wood/foam/bamboo cylinders, etc.
2. Flat board and rare shaped work piece with material like timber, MDF, HDF,plastics, soft metal, acrylic and so on.
Samples


FAQ
1. I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or Skype. Moreover, you could come to our factory to learn how to use it before shipment. Our technician will give you professional guidance.
2. If the machine has problems, what can you do to help?
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. Our after-sales staff can come to your workshop if the problem still can not be fixed.
3. How could I know if this machine is suitable for me?
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided.

Related Machines

Service and Guarantee
1. Technical supports and suggestions before you order a machine according to your work piece. 2. Professional instruction for the operation of the machine. 3. One year warranty, we will provide the consumable parts at cost price after the warranty period. 4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications. 5. 24-hour technical support by email or calling.
Part Replacement
Customers have to send the broken parts to us within one week to our factory address: West Mingjia Road, Qihe Economic Development Zone, Shandong Province. We will check and send you the new one within one week. 1. Customer has to bear the cost of returning the broken parts. 2. If the broken parts is not man-made damaged, we will afford the cost of the new parts and its freight cost.
