Price of PN 1.25 PN 1.6 cold water transfer pipes ppr
Product Specification
| Item | Specification | ||||
| Normal standard | Product grade: | S5 | S4 | S3.2 | S2.5 |
| Nominal diameter (dn) | wall thickness:(en) | ||||
| 20mm | 2.0mm | 2.3mm | 2.8mm | 3.4mm | |
| 25mm | 2.3mm | 2.8mm | 3.5mm | 4.2mm | |
| 32mm | 3.0mm | 3.6mm | 4.4mm | 5.4mm | |
| 40mm | 3.7mm | 4.6mm | 5.5mm | 6.7mm | |
| 50mm | 4.6mm | 5.6mm | 6.9mm | 8.3mm | |
| 63mm | 5.8mm | 7.1mm | 8.6mm | 10.5mm | |
| Length | standard :4m, can be produced as ur demands according to lenght of container | ||||
| Color | white,green,grey,blue | ||||
| Pressure grade | 1.25mpa to 2.5mpa or PN10 to PN20 | ||||
| Package | surrouned by the plastic woven bag | ||||

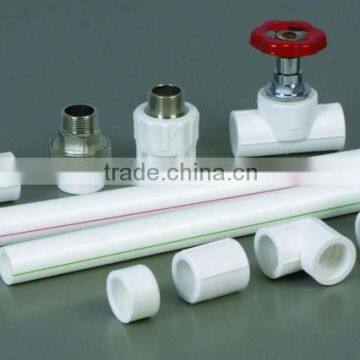

| Accessory | Socket,tee,elbow,stop valve,end cap,union,flange,etc | ||||
| Connected way | Hot melt socket way | ||||
| Certification | ISO9001:200,CE,BV,SGS | ||||
| Tolerance | Thickness:+-0.3m diameter:+-0.4mm | ||||
Advantages:
1.High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.
2.Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe..
3.Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
4.Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system
5.Recycled and Environment-friendly
6.Long Life: more than 50 years under normal conditions
7.Excellent ability in chemical corrosion resistantce.
Company Information
We Hebei Yunkai Steel Plastic Composite Pipe Co.,Ltd was founded in 2006, is a leading manufacturer that specialized in high quality PPR pipe, lining plastic composite pipes, PE coated steel pipes, epoxy coated steel pipes, Galvanized steel pipe etc.

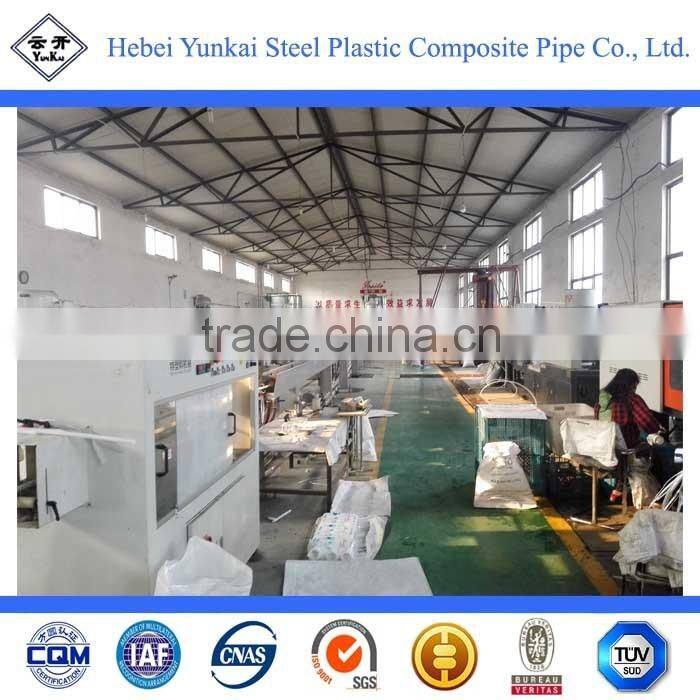

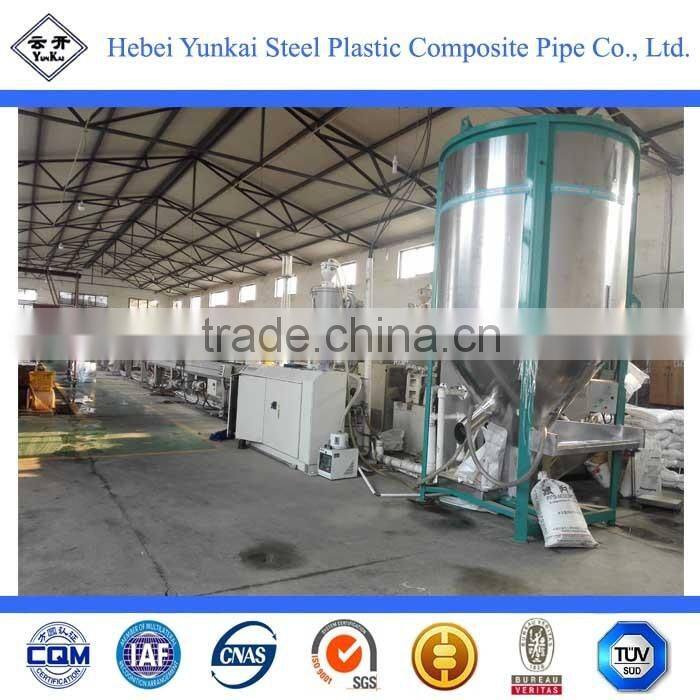

Located in Shijiazhuang city, Hebei province, China. Our factory is 30,000 square meters with annual production capacity over 200,000MT and has 120 employees. our company has advanced technical force and perfect testing equipment, through the national testing center of detection, established a perfect quality management system. We believe quality and service is the core of company.
Contact Us
Welcome to contact us!
