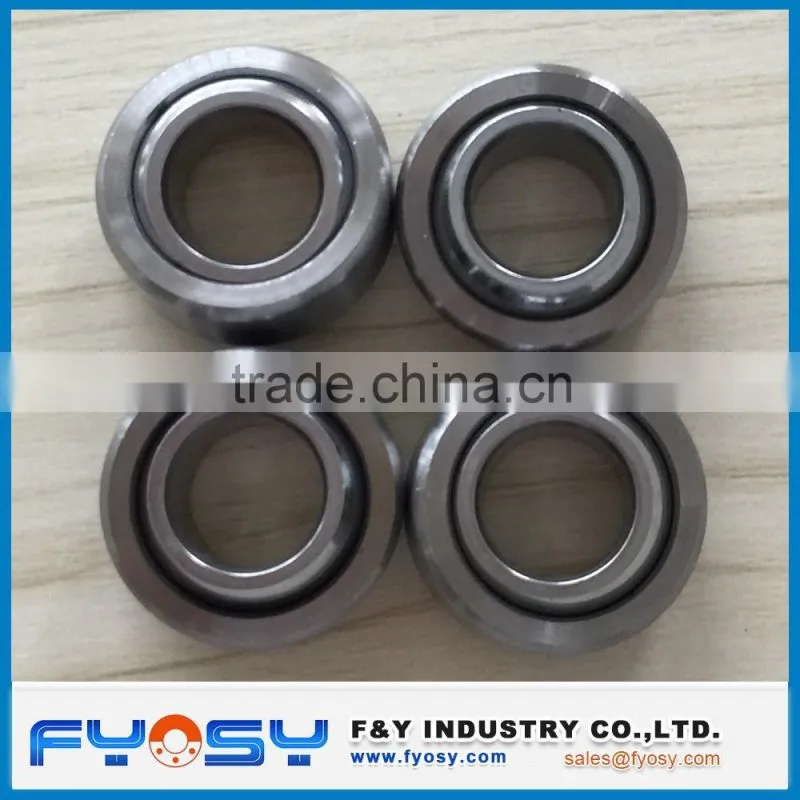

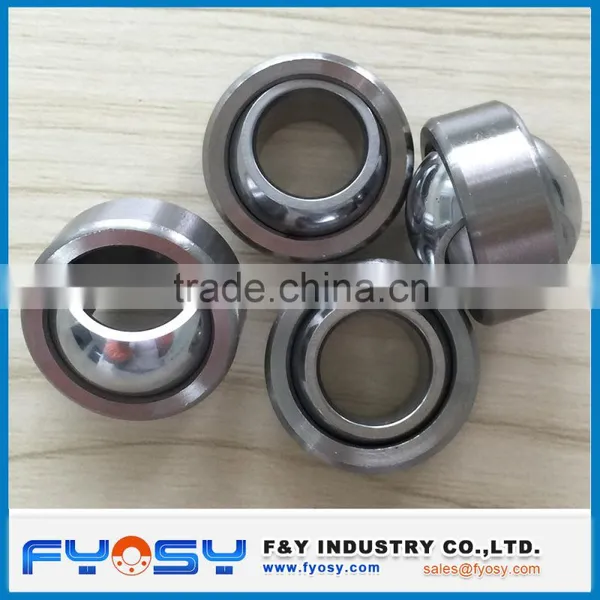

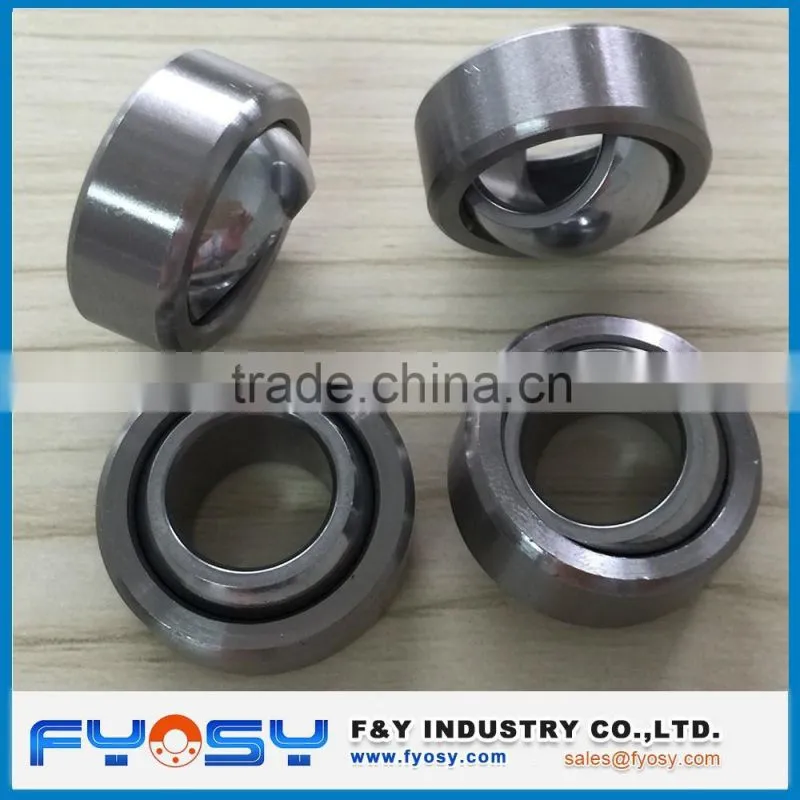

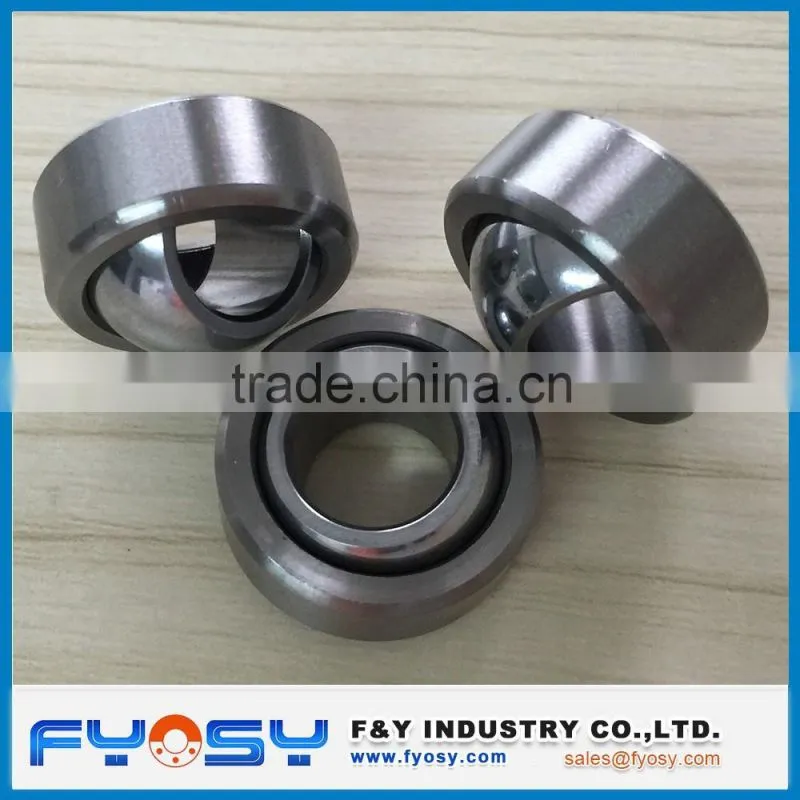

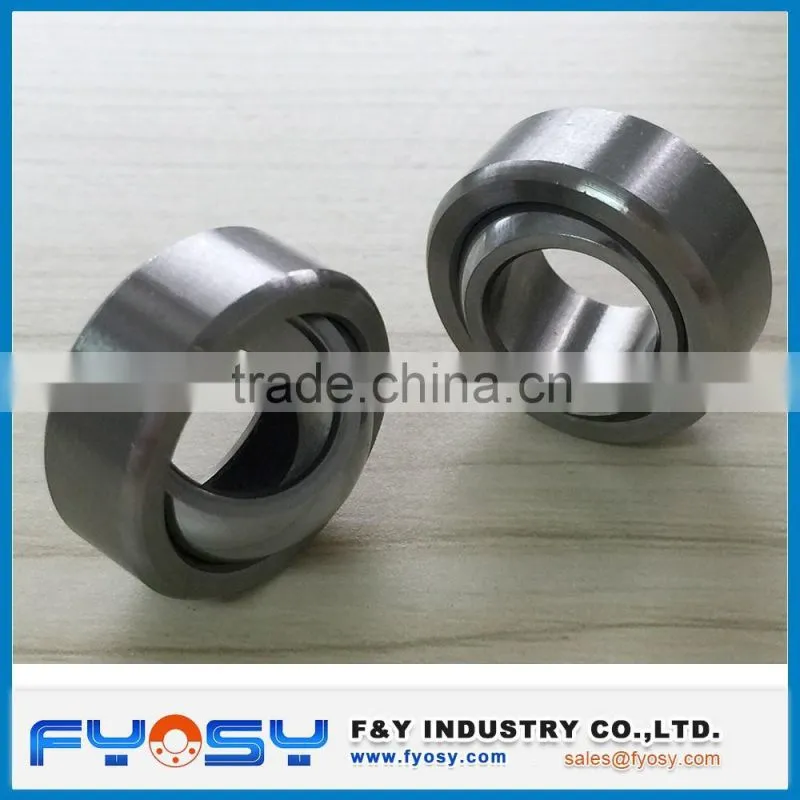

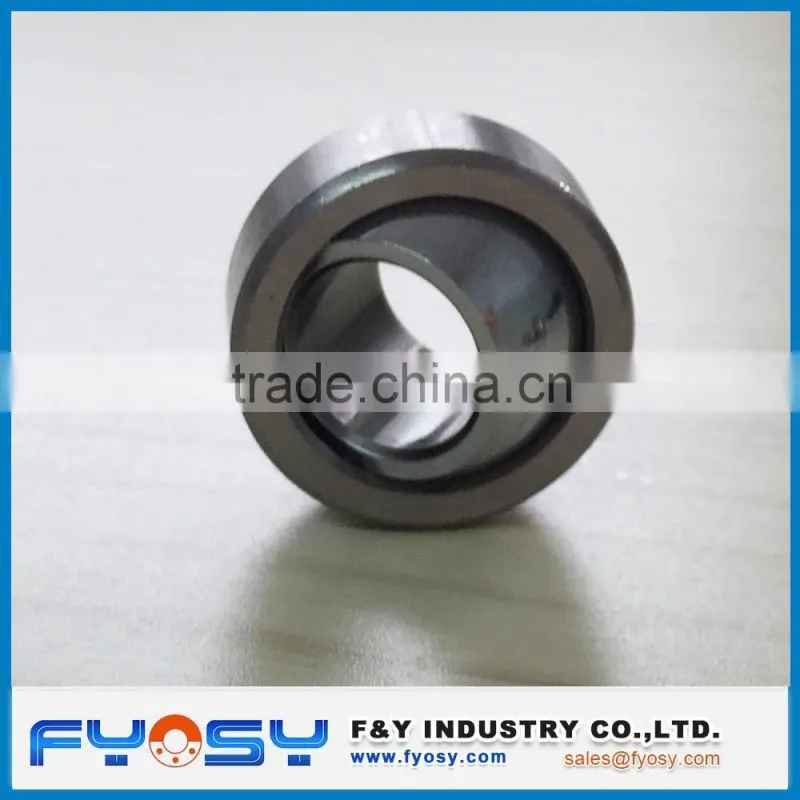

bearing COM3T COM4T COM5T COM6T COM7T spherical plain bearing self-lubricating bearing rod end bearing
bearing COM3T COM4T COM5T COM6T COM7T spherical plain bearing self-lubricating bearing rod end bearing
spherical bearing self-lubricating bearing COM3T COM4T COM5T COM6T COM7T COM8T COM9T COM10T COM12T COM14T COM16T
name: spherical bearing self-lubricating bearing
type: rod end
model no.: COM3T COM4T COM5T COM6T COM7T COM8T COM9T COM10T COM12T COM14T COM16T
self-lubricating bearing COM8 T, rod end bearing COM 8T, COM 8T bearing
size: as bleow
material: 52100 chrome steel, carbon steel, stainless steel 420 440
Joint bearing is dominated by an inner and outer sphere within a spherical outer ring, can withstand
a greater load. According to their different types and structures that can withstand the
radial load, axial load or radial, axial joint load.
Since the inner surface of the outer sphere inlaid composite materials, so that the work
can be generated in the bearing selflubricating. Generally used for slower swing movement,
but also for the tilt angle within a certain range of motion, when the supporting shaft and shaft
misalignment large shell hole, still work properly. Selflubricating auxiliary bearing joints used in
water conservancy, specialized machinery and other industries.
| Category | Series | Item NO. | Bore Diameter(mm) |
| Spherical Plain Radial bearings | GE..ES(-2RS) | GE4E~GE260ES | 4~260 |
| GEG..ES(-2RS) | GEG4~GEG260ES | 4~260 | |
| GEEW..ES(-2RS) | GEEW12ES~GEEW320ES | 12~320 | |
| GE..C | GE4C~GE30C | 4~30 | |
| GEG..C | GEG4C~GEG30C | 4~30 | |
| GEK..XS-2RS | GEK25XS-2RS~GEK60XS-2RS | 25~60 | |
| GEBK..S | GEBK5S~GEBK30S | 5~30 | |
| GE..UK | GE6UK~GE30UK | 6~30 | |
| GE..XS/K | GE12XS/K~GE150XS/K | 12~150 | |
| GEZ..ES(-2RS) | GEZ12ES~GEZ203ES | 12.7~203.2(1/2"~8") | |
| Designation | d | D | B | α | Dynamic | Static | Weight |
| load | load | (Kg) | |||||
| (KN) | (KN) | ||||||
| COM3T | 4.83 | 14.29 | 7.14 | 11 | 5.1 | 12.8 | 0.006 |
| COM4T | 6.35 | 16.67 | 8.71 | 13.5 | 7.2 | 18.4 | 0.01 |
| COM5T | 7.94 | 19.05 | 9.53 | 12 | 9.1 | 22.8 | 0.014 |
| COM6T | 9.53 | 20.64 | 10.31 | 10 | 11.8 | 29.6 | 0.017 |
| COM7T | 11.11 | 23.02 | 11.1 | 8 | 13.6 | 34.1 | 0.021 |
| COM8T | 12.7 | 25.4 | 12.7 | 9.5 | 18.4 | 46 | 0.029 |
| COM9T | 14.29 | 27.78 | 14.27 | 9.5 | 23 | 57.4 | 0.039 |
| COM10T | 15.88 | 30.16 | 15.88 | 9.5 | 29 | 72.5 | 0.05 |
| COM12T | 19.05 | 36.51 | 19.05 | 9 | 40.8 | 102.1 | 0.093 |
| COM14T | 22.23 | 39.69 | 22.23 | 9.5 | 53.5 | 133.8 | 0.119 |
| COM16T | 25.4 | 44.45 | 25.4 | 10 | 69.4 | 173.5 | 0.175 |
We are manufacturing and marketing all kinds of bearings, deep groove ball bearing, non-standard bearing, track roller bearing, taper roller bearing, cylindrical roller bearing, needle roller bearing, thrust ball bearing, angular contact ball bearing etc. we also can produce bearings according to customers' drawings or samples. OEM is welcome.
Our Advantage:

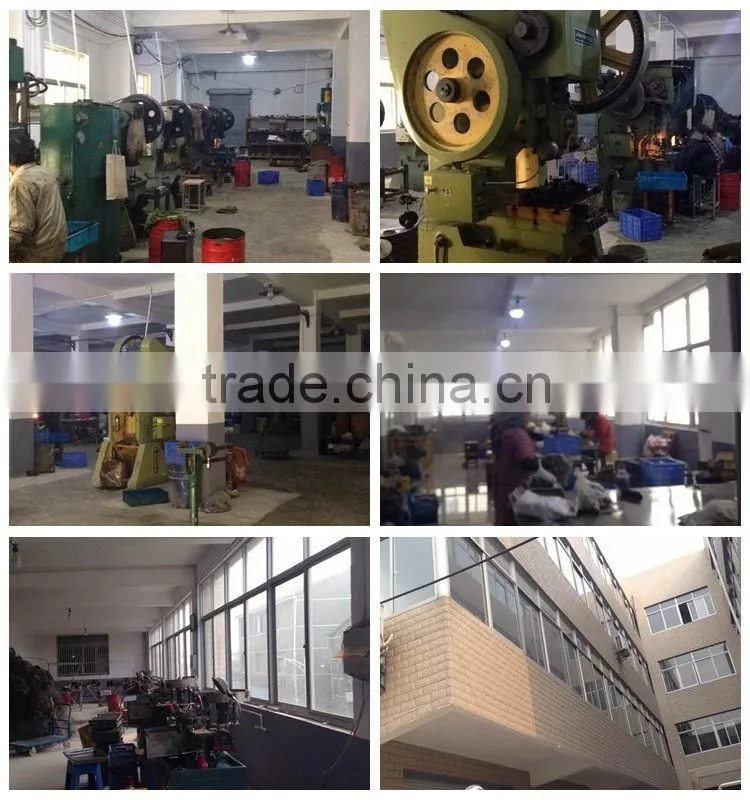

1).Factory
2).Small order accepted
3).OEM service, Customers' drawing or samples accepted
4) .Good service, good quality, low price, prompt delivery
Quick reply
We will reply to your inquiry within 12 hours , phone, email and skype/ whatsapp/ wechat prompt reply.
Free samples supply
If you need samples, we can provide free samples of small quantity reassure you do business. If you need large quantity samples, you have to pay the samples charges.
After sale
For after -sales problems , we solved promptly and carefully, to make sure you satisfied
Customized service
OEM&ODM hydraulic hose fitting available. We can make the production as customers’ drawing or samples. We provide OEM custom packaging service to customers in order to produce the strongest support
