Help Center1000V SMD Bridge Rectifier DIODE MB10S
US$ 0.001 - 0.1
MOQ: 3000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hottech
Model Number:
MB10S
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SOT23 Transistors MMBT5401US$ 0.01 - 0.02MOQ: 3000 Pieces -
Transistor882 2SD882 2SB772US$ 0.01 - 0.02MOQ: 1000 Pieces
-
Electronic Components Power Transistor D882US$ 0.01 - 0.02MOQ: 3000 Pieces
-
2SD882P NPN Transistors 2SD882 TO-92 D882US$ 0.01 - 0.02MOQ: 3000 Pieces
-
D882 TO-252 NPN POWER TRANSISTOR D882US$ 0.01 - 0.02MOQ: 3000 Pieces
Place of Origin
Guangdong, China
Brand Name
Hottech
Model Number
MB10S
Type
Bridge Rectifier
Application
Inverter / Converter
Package Type
Surface Mount
Peak Repetitive Reverse Voltage
Email us
Peak Non-Repetitive Reverse Voltage
Email us for more
Mean On-State Current
1A
Dimensions
Contact us

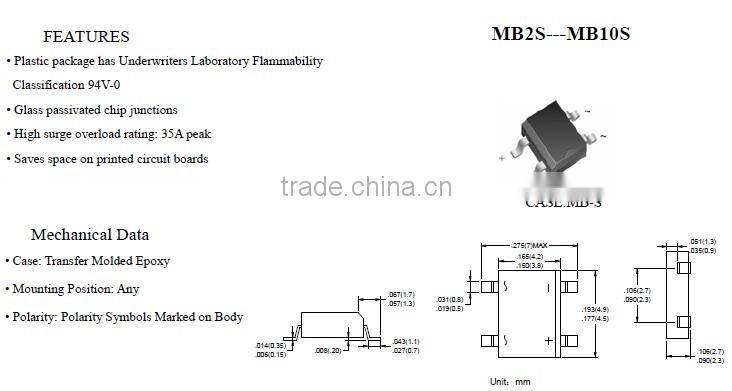

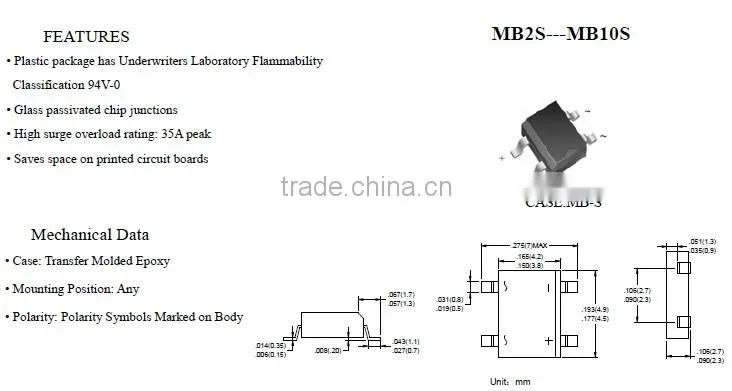

Features
| High Reverse Voltage to 1000V |
| Low Leakage Current |
| Plastic package has Underwriters Laboratory Flammability Classification 94V-0 |
| Glass passivated chip junctions |
| High surge overload rating: 35A peak |
| Saves space on printed circuit boards |
| High temperature soldering guaranteed: 260 C/10 seconds |
| High Reliability |
| ROHS compliant, lead free |
| Qualifications: ROHS, ISO9001:2008, ISO14001:2004 |
Applications
Bridge rectifiers are largely used in Converters and inverters for industrial, commercial and other fields.

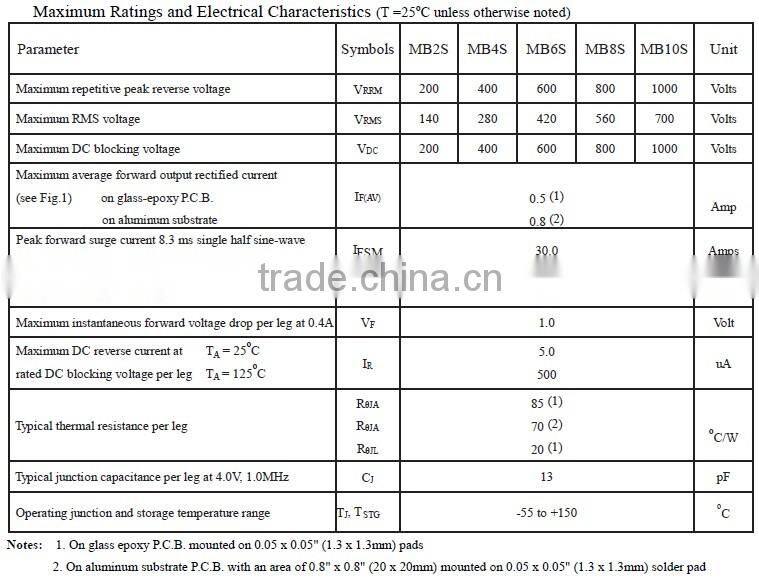

Main Characteristics
| Product | 1000V SMD Bridge Rectifier DIODE MB10S |
| Maximum repetitive peak reverse voltage | 1000V |
| Maximum RMS voltage | 700V |
| Maximum average forward output rectified current |
0.5A on glass-exposy PCB 0.8A on aluminum substrate |
| Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load (JEDEC Method) |
30A |
| Typical thermal resistance | 70°c/W |
| Typical junction capacitance per leg at 4.0V, 1.0MHz | 13pF |
| Operating junction and storage temperature range | -55 to +150 °c |
| Brand | Hottech, chinese supplier |
| Case type | MB-S, transfer Molded Epoxy |
| Package | Tape, Reel or Bulk |
| Packing reel | 2.500 units per reel |
| Reliability | High Reliability |
| We manufacture all kinds of electronic components including Capacitors, Resistors, Diodes, Transistors and Mosfets with with excellent quality, best price and fast delivery. | |

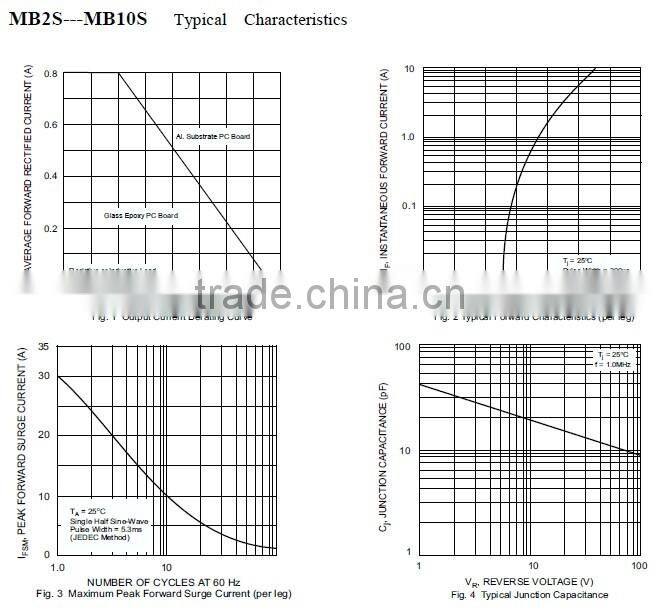

Detailed Datas

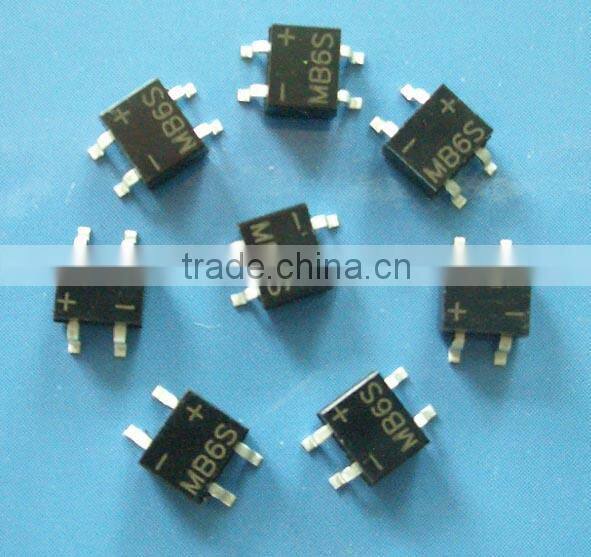

Example of MB-S Bridge Rectifiers
| Contact | Ms Bella |
| Tel | 86-0769-38914999-8318 |
Skype |
bella-hou |
| 2355563453 | |
| see website | |
| Websitie | |
| Welcome you for any inquiries! | |
