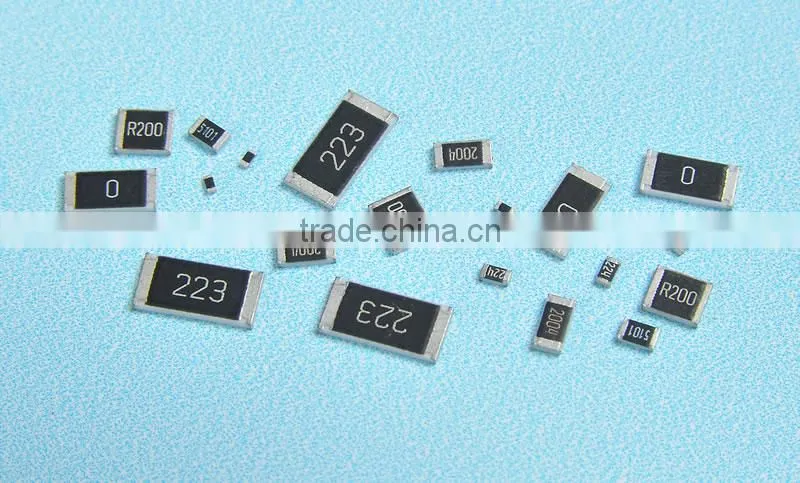

SMD Resistor 0805 1/8W 1K

US$ 0.01 - 0.02 MOQ: 10000 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

HKT

Model Number:

0805

Guangdong Hottech Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name HKT

Model Number 0805

Type Fixed Resistor

Technology Thick Film

Package Type Surface Mount

Resistance 1k Ohms

Resistance Tolerance 5%

Rated Power 1/8W

Temperature Coefficient Email us

Operating Temperature -55℃-+125℃

Features

SMD Resistor 0805 5%

Power Rating: 1/8W, other powers are available.

Working Voltage: 150V

Resistance Tolerance: 5%, tighter Tolerances are available.

Small Package Case, light weight

Compliance with ROHS, lead free

Professional production and strict management for high quality products

Good Performance and technical characteristics

Applications

Largely use in industrial, commercial and other fields.

Main Characteristics

Product	SMD Resistor 0805 5% 1/8W in stock

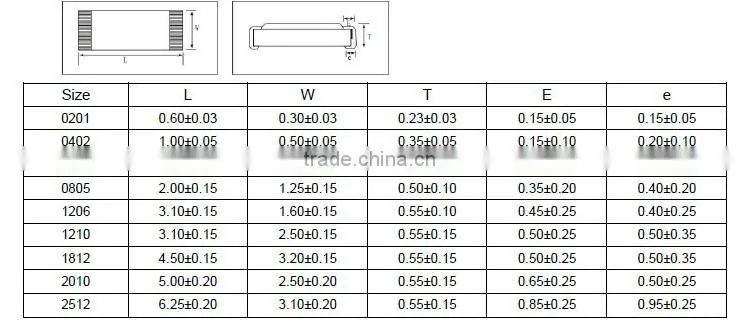

Type	0805, other sizes available (0402, 0603, 1206, 1210, 2010 and so on)
Resistance Range	1M-10M

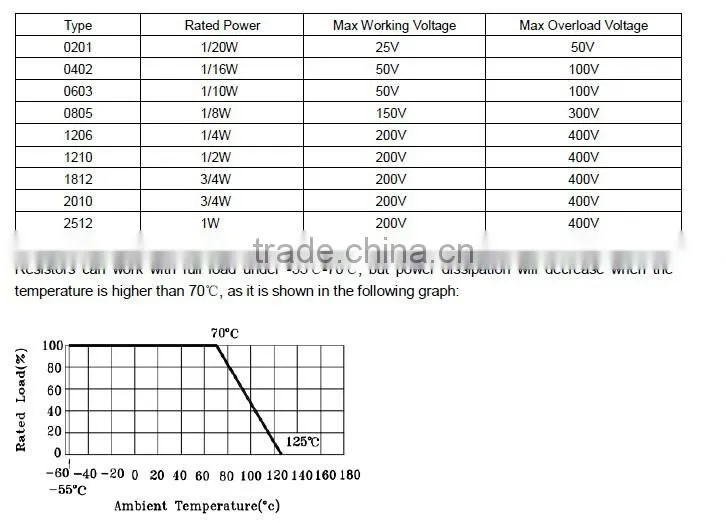

Rated Power	1/8W, other standard powers available
Max. Working Voltage	150V
Max. Overload Voltage	300V
Typical operating temperature Range	-55°C to +125°C
Resistance Tolerance	5%, other tighter tolerances are also available.
Material	Thick Film
Mounting type	SMD (Surface mounted device)

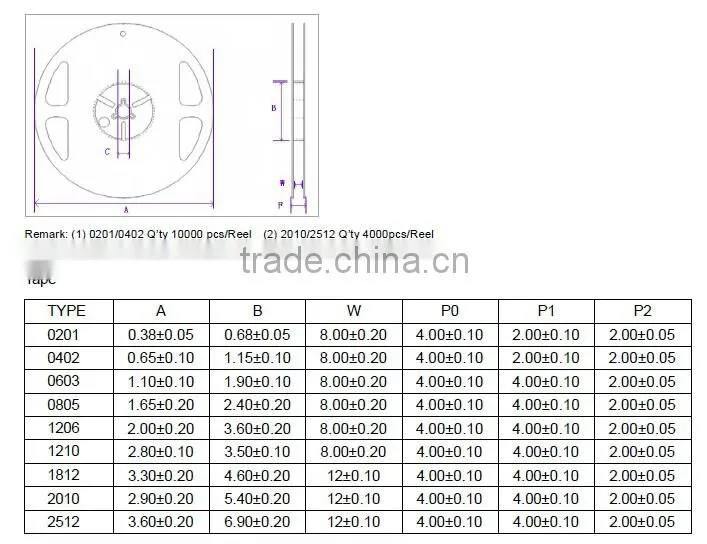

Packing type	Tape, Reel or bulk
Standard Pakcage quantity	10K units per Reel
0ohm Jumper	50mΩ MAX
Supplier	HKT, chinese band manufacturer
Qualification	Rohs compliant, lead free
Solderability	Min. 95% covered
We can supply all kinds of electronic components including Capacitors, Resistors, Diodes, Transistors and Mosfets with with excellent quality, best price and fast delivery.
