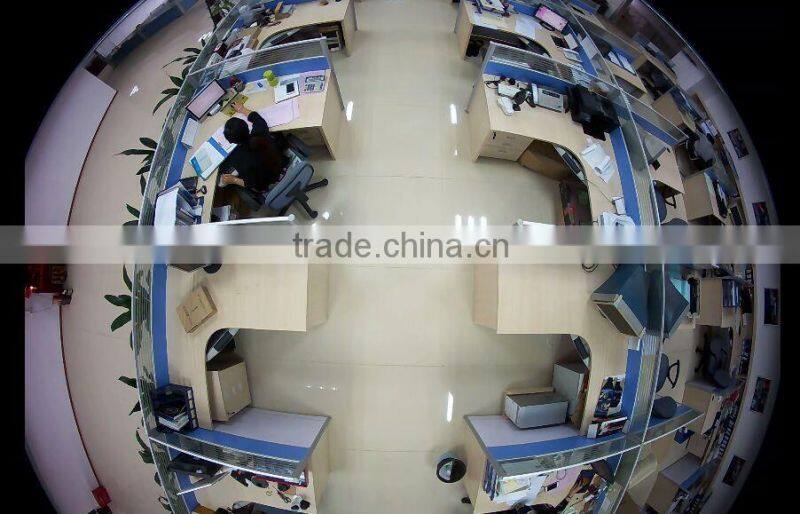

Help CenterVehicle 1.3 Megapixels ,360 Degree Fisheye Panoramic Camera
Related Products
-
High Resolution Wide View Mini Waterproof IR Camera-MC812IR Car Surveillance EquipmentNegotiableMOQ: 1 Piece -
120 Degree Wide Angle Car Camera IR 2.5mm Lens For Taxi ,SUV , Bus Surveillance CameraNegotiableMOQ: 1 Piece
-
720P Mobile NVR ,GPS,3G, WIFI, 8-channel MNVRNegotiableMOQ: 1 Piece
-
WIFI Police Mobile DVR With External IR CameraNegotiableMOQ: 1 Piece
-
G-sensor GPS Vehicle Mobile DVR H.264 HDD 4 Channel 4G Online For BusNegotiableMOQ: 1 Piece
QOHO Electronics(shenzhen) Co., Ltd found on 2005 year, which is a professional high-tech security manufacturer, we specialized in manufacturing, developing Vehicle Mobile equipment include Mobile DVR and vehicle cameras product. We provide comprehensive services that cover Research&Development, produce, sales,and after sales service. We keep pursuing constantly science technology breakthrough and innovation in intelligentizing field.Our brand is QOHO.Our factory address is located at Bao’an district,shenzhen city,china.And our branch office is in Hongkong(QOHO Technologoy(HK) Co., Ltd).
QOHO Electronics(shenzhen) Co., Ltd(QOHO CCTV) has strong production and R&D strength. QOHO products pass CE,RoHS certificate.And factory got ISO2000 standard. So that Our factory is well equipped with advance production line and all products must pass through severe QC procedures before shipping. At the full of opportunity and challenge time,QOHO consist on “Technology is Hard-cord,Serve client is our tenet.”Multi-success” management concept, create win-win situation with customers. Our products have been great recognized in USA,European, Australia, South Africa marketing etc.
Welcome your OEM&ODM design, welcome all of you are from all around the world!, Sincerely hope we can establish long-term business relationship with the worldwide customers, create brilliant together!
• High-performance DSP processor and CMOS image sensor, the image is clear;
• Advanced H.264 HP video compression technology to achieve ultra-low bit-rate, high-definition picture quality;
• Progressive scan CMOS, Megapixel Resolution, high sensitivity to capture moving images without jagged;
• Support dual-stream, multiple network cloud services to open security cloud monitoring ;
• Support ICR filter switching function, achiveing the real day and night surveillance ;
• Supports P2P technology, do not open ports, true plug and play,achieving remote monitoring via DNS ;
• Support network adaptive technology, according to the network bandwidth automatically adjust video frame rate, abnormal self-recovery function, network interruption automatic reconnection functions ;
• Support ONVIF2.0 standard, perfectly achieve a variety of large platform HVR / NVR butt ;
• Supports all types of mobile remote monitoring(Windows Mobile,BlackBerry,Android etc).
Product Technical parameters:
| Camera | Main processor | High-performance DSP |
| Image sensor | 1/3″Min.Illumination progressive scan CMOS | |
| Horizontal Resolution | 1.3Megapixel | |
| Min.Illumination | Color:0.01Lux/F1.2(0Lux IR ON) | |
| S/N Ratio | ≥52dB | |
| Day/Night mode | ICR IR filter automatically switches | |
| Lens | 1.44mm Megapixel lens | |
| Electronic shutter | 1/25S~1/10000S | |
| IR LEDs | 12pcs IR LEDs | |
| IR distance | 8~10M | |
| Image | Video compression standard | H.264/M-JPEG |
| Video resolution | ain stream:1280*960,Sub stream:704*576/704*480 | |
| Video frame rate | 50Hz:704*576@25fps 60Hz:704*480@30fps | |
| Compression standard | Compression output rate | 48K~8M Bps |
| Audio compression standard | G.711/G.726 | |
| Audio compression bit rate | 64Kbps(G.711) / 16Kbps(G.726) | |
| Audio Input | Optional | |
| Audio Output | Optional | |
| Network function | Interface Protocol | ONVIF,Support GB GB28181 agreement |
| Support agreement | TCP/IP,UDP,SMTP,HTTP,FTP,PPPOE,DHCP,DNS,DDNS,NTP,UPNP,( RTP/RTSP,SIP,IPv4 optional) | |
| Common functions | Anti-flicker, dual-stream, mirroring, multi-level user | |
| Ports | Communication interface | 1CH 10/100M Ethernet,RJ45 port |
| General specification | Ingress Protection | IP66 TVS 4000V Lightning protection, anti-surge, anti-wave |
| POE power supply | Option | |
| Operating Temp. | -20°C~+70°C | |
| Power supply | DC12V±10% | |
| Power consumption | ≤ 7W | |
| Dimension | 120mm*66mm(H) |
Product Technical parameters:
| Camera | Main processor | High-performance DSP |
| Image sensor | 1/3″Min.Illumination progressive scan CMOS | |
| Horizontal Resolution | 1.3Megapixel | |
| Min.Illumination | Color:0.01Lux/F1.2(0Lux IR ON) | |
| S/N Ratio | ≥52dB | |
| Day/Night mode | ICR IR filter automatically switches | |
| Lens | 1.44mm Megapixel lens | |
| Electronic shutter | 1/25S~1/10000S | |
| IR LEDs | 12pcs IR LEDs | |
| IR distance | 8~10M | |
| Image | Video compression standard | H.264/M-JPEG |
| Video resolution | ain stream:1280*960,Sub stream:704*576/704*480 | |
| Video frame rate | 50Hz:704*576@25fps 60Hz:704*480@30fps | |
| Compression standard | Compression output rate | 48K~8M Bps |
| Audio compression standard | G.711/G.726 | |
| Audio compression bit rate | 64Kbps(G.711) / 16Kbps(G.726) | |
| Audio Input | Optional | |
| Audio Output | Optional | |
| Network function | Interface Protocol | ONVIF,Support GB GB28181 agreement |
| Support agreement | TCP/IP,UDP,SMTP,HTTP,FTP,PPPOE,DHCP,DNS,DDNS,NTP,UPNP,( RTP/RTSP,SIP,IPv4 optional) | |
| Common functions | Anti-flicker, dual-stream, mirroring, multi-level user | |
| Ports | Communication interface | 1CH 10/100M Ethernet,RJ45 port |
| General specification | Ingress Protection | IP66 TVS 4000V Lightning protection, anti-surge, anti-wave |
| POE power supply | Option | |
| Operating Temp. | -20°C~+70°C | |
| Power supply | DC12V±10% | |
| Power consumption | ≤ 7W | |
| Dimension | 120mm*66mm(H) |

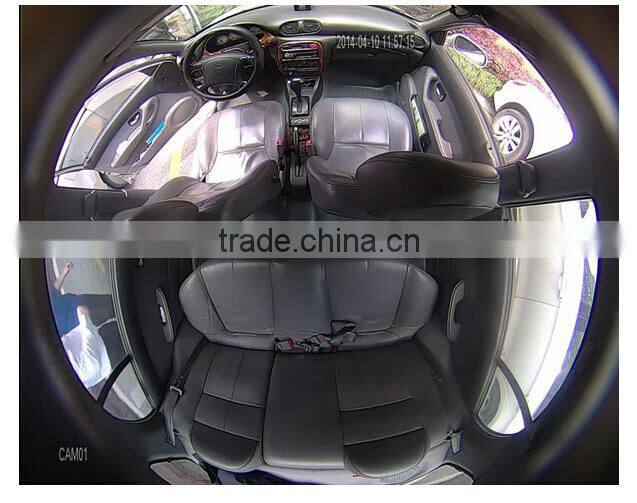

Installation picture:
Good effect from show of all over the world!
INTERSEC dubai,MIPS Moscow,ISAF turkey,Securex poland etc....
E-mark for E-9 certificate
CE FCC
