WIFI Police Mobile DVR With External IR Camera
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
QOHO
Model Number:
QH-M8001DVR, QH-M8001DVR
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
G-sensor GPS Vehicle Mobile DVR H.264 HDD 4 Channel 4G Online For BusNegotiableMOQ: 1 Piece -
LED Panel Work With Mobile DVR to Show StatusNegotiableMOQ: 1 Piece
-
Double Lens Wide Angle Car Camera With 130 Degree Viewing Angle for Rear and Front Road ViewingNegotiableMOQ: 1 Piece
-
Tripod Rapid PTZ Equipment Include 10x PTZ,GPS/3G SD Card MDVR and UPS Battery , PTZM804NegotiableMOQ: 1 Piece
-
8-CH HDD/SSD Vehicle Mobile DVR,UPS Battery,Alarm Button,RFID IC Reader for School BusNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
QOHO
Model Number
QH-M8001DVR, QH-M8001DVR

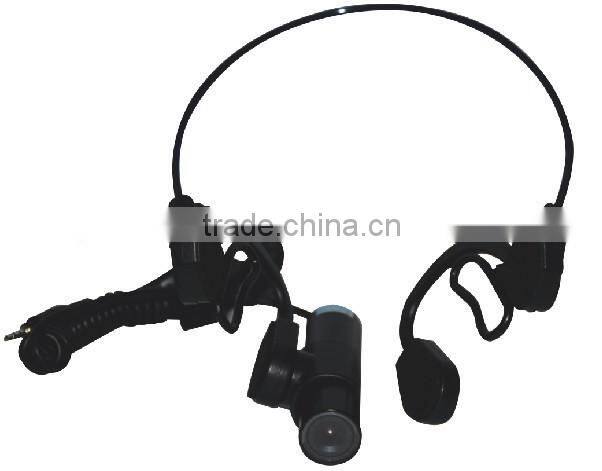

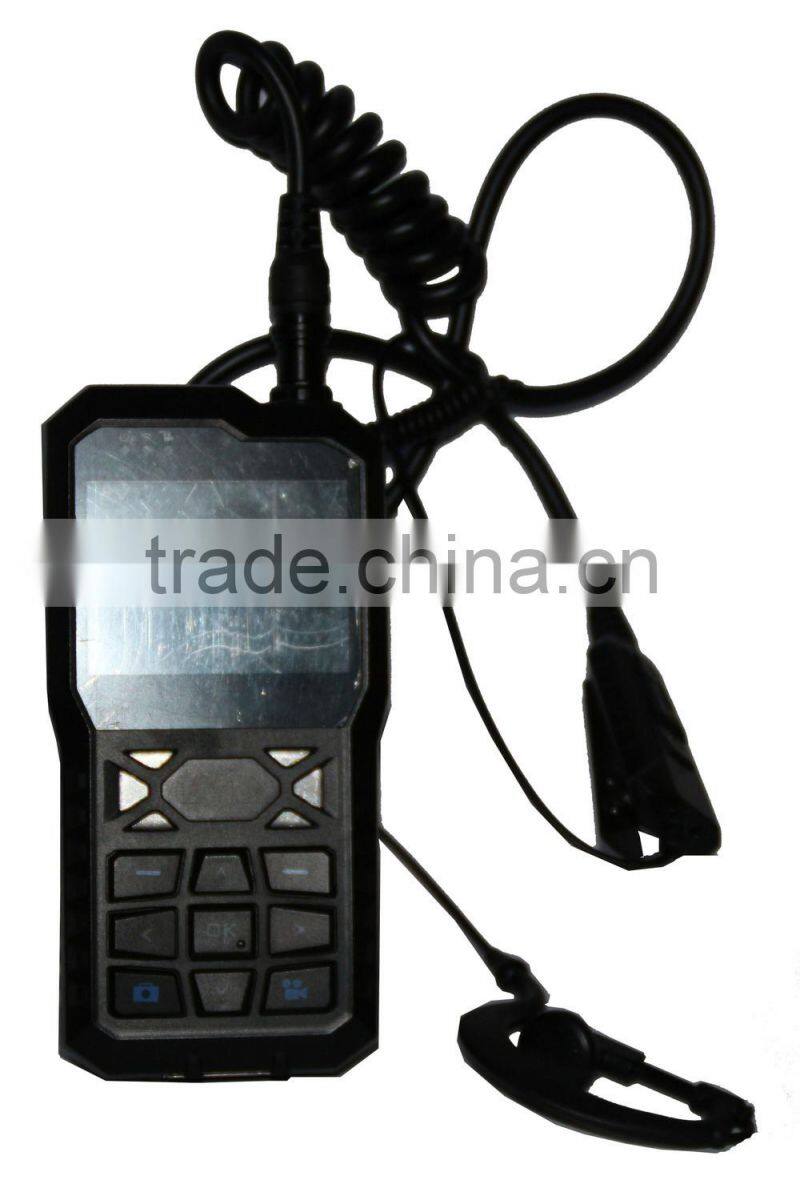

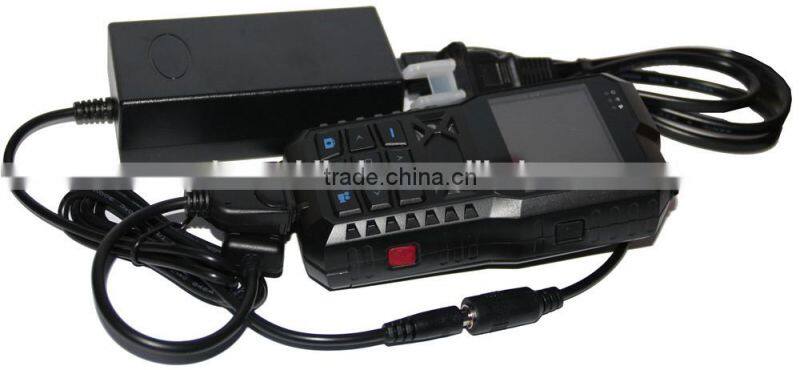

WIFI Police Mobile DVR with External IR Camera
Product specification:
2.4" TFT, resolution:480*240, Image is exquisite,colour is real,provides prefect display effect;
Ware comfortable casual,for handheld, his hips and shoulders wear to wear a variety of ways,
Overall the characteristics of both the practicial and concise design.IP65 Industrial level material;
Power on quiickly;
It uses the high speed processor and Linux OS, powerful CMS software.
Main device and camera separated design;
Lithium battery power supply;
Support GPS,3G/4G and built-in WIF function;
Working time >=5 hours;
A variety of network function,including real-time preview,remote playback,remote download,raido,intercom,message;
Support different transport quality;
64G one micro-SD card;
IP intercom(optional);
Support mobile control management platform(optional).
Support charge on table/stand(optional).
Specification:
| System | Linux | |
| Language | English | |
| Security | User password management | |
| Video and preview | Video input | External camera |
| OSD | Overlays letters… like date & time information and vehicle ID on video streaming | |
| Video Compression | H.264 | |
| Dual stream | Support | |
| Preview | Real time live/record video preview | |
| Resolution | D1/CIF | |
| Video quality | 1-4 levels, 1 is the highest level | |
| Video Bit Rate | CIF: 400Kbps ~ 1.5Mbps | |
| D1: 1000kbps ~ 2Mbps | ||
| Audio | Audio input/output | MIC input; Headphone output |
| Compression | G.726 | |
| Storage | Micro-SD card: support 1G~64G | |
| Record | File system | FAT32 |
| Recording Mode | Default auto recording after power on, support manual recording | |
| Video Search | Search video by time, type | |
| Video playback | Support forward and backward at the speed of:x2,x4,x8,x16,support playback of file by time | |
| Screen parameters | Size | 2.4 inch |
| Type | TFT | |
| Resolution | 480*234 | |
| Upgrade | Upgrade by SD card or USB | |
| 3G/4G | 3G WCDMA/EDVO optional; Compatible with GPRS, EDGE; | |
| Support 4G(optional) | ||
| GPS | Support built-in GPS | |
| WIFI | Support built-in WIFI | |
| External Interface | support data export to USB | |
| Power&consumption | Power management | Manual startup/shutdown; support manual off-screen, automatic off- screen |
| Battery capacity | 2400mAh , 7.4V | |
| Charging period | 3 hours | |
| Standby time | 48 hours | |
| Working period | >=5 hours | |
| Working environment | Operate Temp | -25℃ ~ +60℃ |
| Humidity | 10% to 95% | |
| Dimensions | 80(W) x140(H) x33(D) mm | |

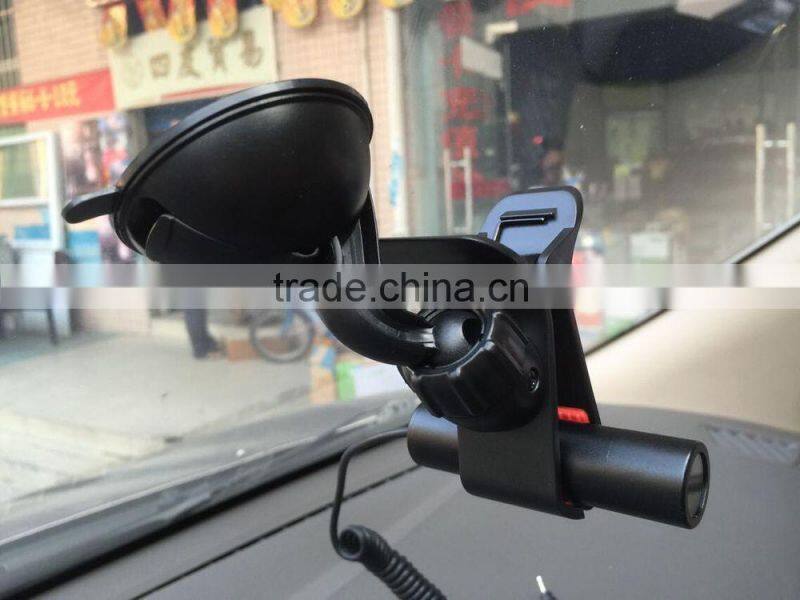

Installation picture
CMS server(Center Management Software)
CMS viewer( Remote Live view in realtime recording)
PAS(Playback Analysis Software)
E-mark for E-9 certificate
CE FCC ROHS
Temperature&humidity&Shock test
FAQ:
Q: What can I do when I found a problem with the product, but I can not solve it by myself?
A: Take note of the model and software version number, then submit a detailed description of the problem to the technical supporting engineers to analyze; the more detailed you have submitted, the more convenient for us to analysize.
A: Take note of the model and software version number, then submit a detailed description of the problem to the technical supporting engineers to analyze; the more detailed you have submitted, the more convenient for us to analysize.
Q: How about when there is no video output from the vehicle host device?
A: 1.Check the host’s turn-on status, if only a blue light on, it means the host is in standby status and has not been started up yet, meanwhile check whether the host’s power cords red & yellow cords are in power supply status or not, if only one cord is supplying power, the device is unable to start up.
2.Check the power supply status of display screen, as well as check whether the display video has been switched to AV status.
3 Check the connecting status between the host’s video output cable and display screen.
4 check whether the lock status of the host’s LOCK, it must be locked before normal starting up.
A: 1.Check the host’s turn-on status, if only a blue light on, it means the host is in standby status and has not been started up yet, meanwhile check whether the host’s power cords red & yellow cords are in power supply status or not, if only one cord is supplying power, the device is unable to start up.
2.Check the power supply status of display screen, as well as check whether the display video has been switched to AV status.
3 Check the connecting status between the host’s video output cable and display screen.
4 check whether the lock status of the host’s LOCK, it must be locked before normal starting up.
Q: How to do when the car host video input interface is different from the camera output interface?
A: The car uses 4PIN type while camera uses BNC or aviation head type, if not in correspondence, please use conversion head for connection or wiring based on standard corresponding according to the cable sequence defined by the car host.
A: The car uses 4PIN type while camera uses BNC or aviation head type, if not in correspondence, please use conversion head for connection or wiring based on standard corresponding according to the cable sequence defined by the car host.
Q: How to do when the device does not conduct video recording after it is turned on and SD card has already been installed?
A: 1.Check whether the SD card has been formatted or not after installation, because unformatted SD card cannot be used. Enter System Menu - System Tools - Device Format to format the newly installed SD card;
2. Check to see whether video channel is closed or not, whether set a timer recording or not, it will not take video when it is not within the video recording time period.
3.Check the SD card inserting status and whether the SD light on front panel is on or not.
A: 1.Check whether the SD card has been formatted or not after installation, because unformatted SD card cannot be used. Enter System Menu - System Tools - Device Format to format the newly installed SD card;
2. Check to see whether video channel is closed or not, whether set a timer recording or not, it will not take video when it is not within the video recording time period.
3.Check the SD card inserting status and whether the SD light on front panel is on or not.
Q: The video file is missing or there is no video file within a certain period of time, how to do?
A: 1. Determine the time period by analyzing the final video file before missing and the first video file after recovery.
2. Confirm whether the host is not on during that period of time, such as when the driver halfway parking, loading and unloading goods while the host is not set by video delay.
A: 1. Determine the time period by analyzing the final video file before missing and the first video file after recovery.
2. Confirm whether the host is not on during that period of time, such as when the driver halfway parking, loading and unloading goods while the host is not set by video delay.
Q: When car PTZ cannot be controlled, it cannot rotate up and down, how to do?
A: Check whether PTZ protocols and baud rate are set correct, address codes are corresponding or not, whether have selected to maximize the video of the channel when control the PTZ, for example, when control the second channel, it must maximize the screen of the second channel image to control it.GPS-related issues.
A: Check whether PTZ protocols and baud rate are set correct, address codes are corresponding or not, whether have selected to maximize the video of the channel when control the PTZ, for example, when control the second channel, it must maximize the screen of the second channel image to control it.GPS-related issues.
Q: GPS module exists but no coordinate information?
A: 1.Check whether GPS module exists, if it does not exist, check whether the hardware is installed or in a good contact.
2.Make sure that the GPS antenna contacts are good, whether the antenna is broken, it is recommended to be located in places with strong signal, note that some car glass shielding film will block GPS signals;
3 If the test is in the room, the signal of GPS antenna in the room will be obscured, it is recommended that the GPS antenna is placed outdoor.
A: 1.Check whether GPS module exists, if it does not exist, check whether the hardware is installed or in a good contact.
2.Make sure that the GPS antenna contacts are good, whether the antenna is broken, it is recommended to be located in places with strong signal, note that some car glass shielding film will block GPS signals;
3 If the test is in the room, the signal of GPS antenna in the room will be obscured, it is recommended that the GPS antenna is placed outdoor.
Q: Deviation of GPS location on map?
A: It means the signal is valid if the GPS module already positioned, there may many reasons for the deviation, such as government restrictions, permissible error, GPS signal interruption, etc; the actual satellite map may have deviation for security reasons, general map can solve the problem by using GPS correction.3G wireless module
A: It means the signal is valid if the GPS module already positioned, there may many reasons for the deviation, such as government restrictions, permissible error, GPS signal interruption, etc; the actual satellite map may have deviation for security reasons, general map can solve the problem by using GPS correction.3G wireless module
