Home > Auto, Motorcycle Parts & Accessories > Car Safety > Car DVR > 4 Channels 1080P High Definition Hard Disk/SSD Mobile DVR/NVR,MDVR8104HP

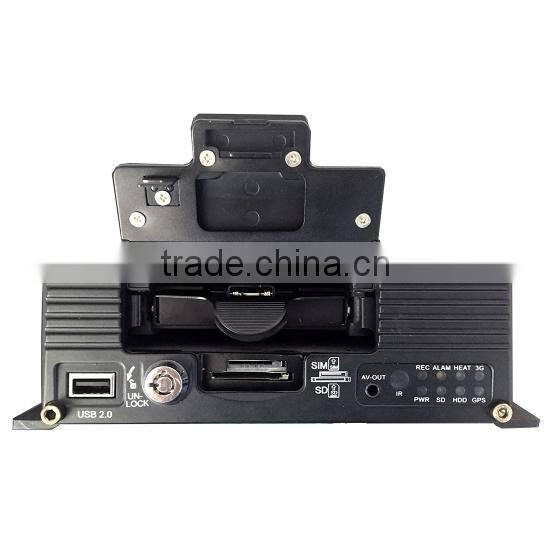

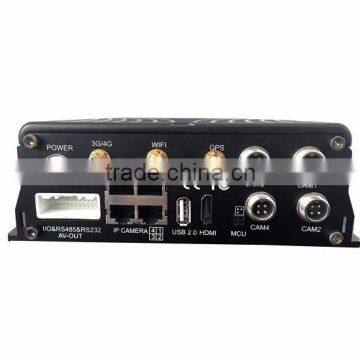

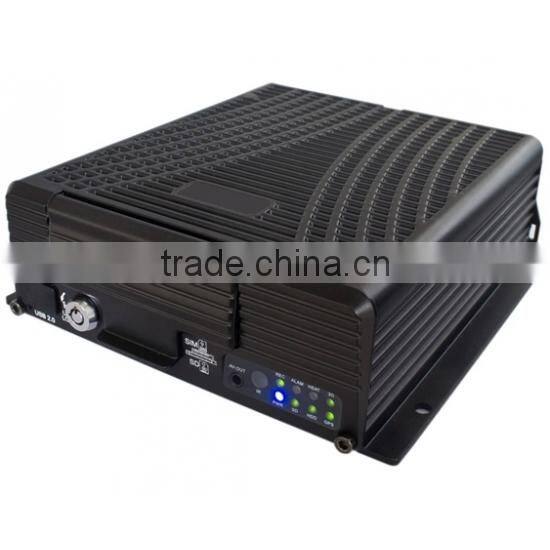

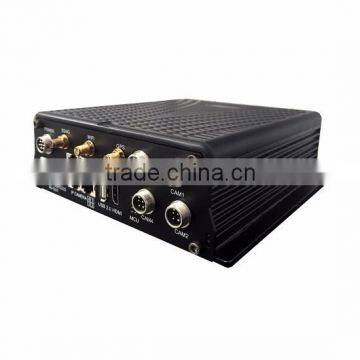

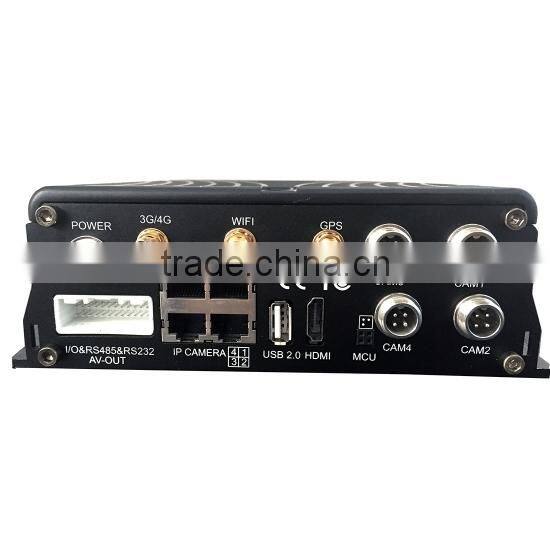

4 Channels 1080P High Definition Hard Disk/SSD Mobile DVR/NVR,MDVR8104HP
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
QOHO
Model Number:
QH-MDVR8104HP, QH-MDVR8104HP
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4 Channels SD Card Mobile DVR / Car DVR (GPS+3G+WiFi) Mobile Digital Video RecorderNegotiableMOQ: 1 Piece -
4G TWO SD Car Mobile DVR Audio Video Sync , GPS,WIFI.Car Black Box FunctionNegotiableMOQ: 1 Piece
-
H.264 Dual SD Car Mobile DVR Audio Video Sync , GPS,3G/4G,WIFI.Car Black Box FunctionNegotiableMOQ: 1 Piece
-
2-ch 720P Mobile Dvr H.264 Gps sd Card Mobile Dvr 3G GPS G-Sensor 128GB StorageNegotiableMOQ: 1 Piece
-
4-Ch Single MDVR,WIFI Car DVRNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
QOHO
Model Number
QH-MDVR8104HP, QH-MDVR8104HP
Car Mobile DVR 4ch full d1 mdvr ,H.264 Compression , Built-in G-sensor
High definition real-time recording with 4 x 720P AHD cameras or 4 x 720p/1080P IP camera, or 4 channels AHD analog camera and 4 channels IP cameras mix-connection, IPC:12V power supply;
Synchronized 4 channels video & 2 channels audio recording and playback;
4 channels 720P Full frame recording,support HDMI and CVBS video out;
Built-in 2.5 inch hard disk/SSD, 2TB storage, excellent shock absorption design;
Build-in G-sensor module and GPS module,3G/4G module,WiFi module(optional);
Built-in 1 SD card slot for data backup in case of hard disk drive error(need with 3G/4G module) Support 1*RS485 and 2*RS232 extend;
8 seconds delay power-off for data protection;
Support hard disk automatic heating,Operating temperature -40℃ ~ +80℃;
8V-36V wide voltage power supply,support POE.
Dimension(L×W×H): 192×184×61 mm.
| Model | QH-MDVR8104HP | |
| System | language | Chinese/ English |
| Operation interface | Graphical menu operation interface(OSD menu) | |
| Password | Permissions setting of administrator User&password | |
| Video | Video input | 4-channels,support AHD camera |
| Video output | 3 channels(1x HDMI,2xCVBS,1 as 3.5 phone jack,1 in the 24pin connector) | |
| Video display | Single picture,4 pictures | |
| Signal system | PAL, NTSC | |
| Video compression | H.264 Main profile | |
| Audio | Audio input | 4-channels,support AHD camera |
| Audio output | 2 channels(1 as 3.5 phone jack,1 in the 24pin connector) | |
| Recording format | Synchronized video&audio recording | |
| Recording & storage | Image format mode | CIF/D1/960H/720P/1080P optional |
| Video stream Stardard/coding | ISO14496-10 | |
| Video bitrate | CIF: 1536Kbps ~ 128Kbps | |
| D1: 2048Kbps ~ 400Kbps | ||
| 960H: 2048Kbps ~ 400Kbps | ||
| 8 grades of image quality optional,Grade 1 as best,Grade 8 as lowest | ||
| 720P/1080P: 4096Kbps ~ 400Kbps | ||
| 8 grades of image quality optional,Grade 1 as best,Grade 8 as lowest | ||
| Audio Bitrate | 8KB/s | |
| Storage | Up to 2TB HDD/SSD and 1 SD card for backup(with 3G/4G module optional) | |
| Alarm | Alarm input | 8 channels,alarm activated by lowe voltage(below 1V)) or high voltage above 5V. |
| Alarm output | 1 channel,12V output | |
| Communication Interface | RS485 Interface | Support 1-RS485 interface |
| RS232 Interface | Support 2-RS232 interface | |
| RJ45 network | Support 4xRJ45,support IPC camera with maximum of 1080P | |
| Wireless Communication | 3G | Built-in 3G(HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA) module optional |
| 4G | Built-in 4G(TDD-LTD/FDD-LTD) module optional | |
| WIFI | Built-in WIFI(2.4/5.8 Ghz) optional | |
| GPS | Built-in GPS module. Real-time geographic coordinates,speed information | |
| Acceleration Sensor/G-sensor | Built in acceleration G-Sensor | |
| Software | PAS(Playback Analysis Software) | Playback Recording on PC, and analyze the vehicle recording information. |
| CMS(Center Management Software) | Center management software to meet Video preview, upload and central command and parameters configuration, etc. | |
| Software upgrade | U-disk upgrade from USB2.0 or harddisk | |
| MDVR Electric Specifications | ||
| Items | Parameters | Specifications |
| Power input | 8—36V | Input voltage:+8V~+36V, When long-term under 8V, or long-term over 36V, Auto power off, enter protected mode. |
| Power output | 12V | 12V(+/-0.2V), Max:3A. |
| Power-off working time | 8S | If main power supply is off,MDVR can continue running 8 seconds.If connect built-in patent UPS power-supply, MDVR can continue running 60 minutes. |
| Vehicle key signal | ≤4V | OFF |
| ≥5V | ON | |
| Video input impedance | 75Ω | 75Ω for each video input impedance |
| Video output Volt | 2Vp-p | Input 2Vp-p CVBS analog signal, reveal device input need 75Ω impedance to fit |
| I/O interface | 0—4V | Low level alarm |
| 4V above | High level alarm | |
| -4V below | Negative voltage alarm | |
| Operating Temperature | Under well-ventilated environment condition. | |
| Body Dimension | 186(W)mm x 61(H) x 192(L)mm |
|
WE have got good reputation from all over the world.
INTERSEC dubai,MIPS Moscow,ISAF turkey,Securex Poland.etc.....
Installation picture

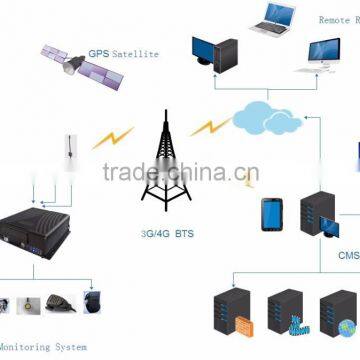

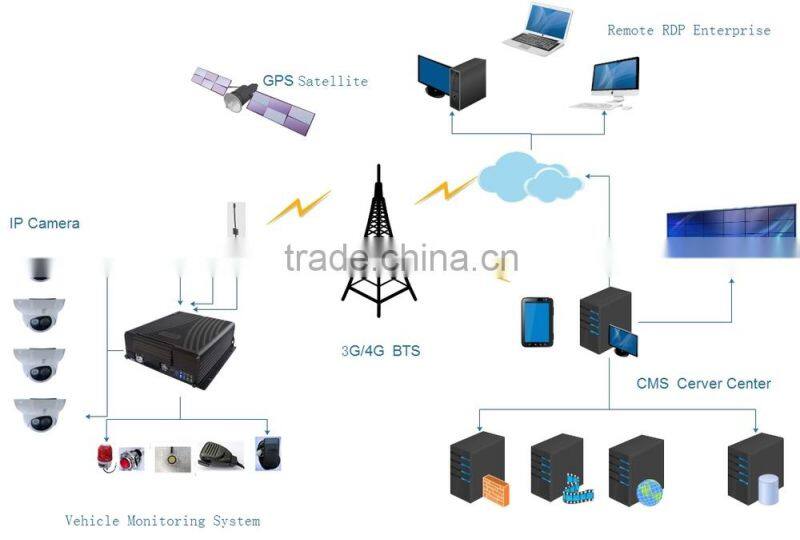

CMS server(Center Management Software)
CMS viewer( Remote Live view in realtime recording)
PAS(Playback Analysis Software)
E-mark for E-9 certificate
CE FCC ROHS
Temperature&humidity&Shock test
Our Services
why choose us?
- Leading and professional manufacturer in CCTV industry
- 10 years R&D experience
- Top-grade Quality
- Competitive and reasonable price
- Trustworthy service, Best pre-sale and after-sale service
- Reliable warranty and lifetime maintenance
- OEM ODM
- CE,FCC,RoHS, UL, E9certification
