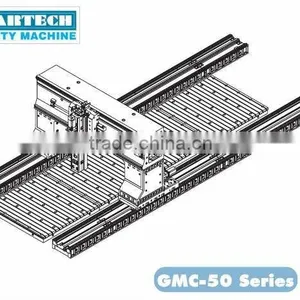

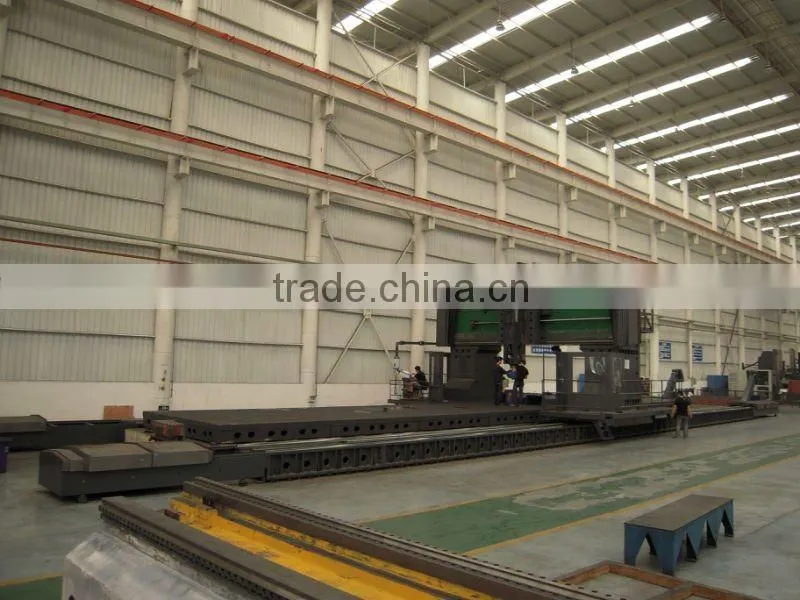

Bridge Type Machining Center Frame GMC5032L

Name: Bridge Type Machining Center Frame GMC5032L
Brand: SMARTECH
SKU: 123973445
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Yunnan, China

Brand Name:

SMARTECH

Smartech Machinery & Equipment Co., Ltd.(Shenzhen)

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN CHINA;

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Yunnan, China

Brand Name SMARTECH

Model Number GMC5032L

Type Vertical

CNC or Not CNC

Specifications

1 high-class quality;
2 competitive price;
3 high machining precision;
4 short delivery time;

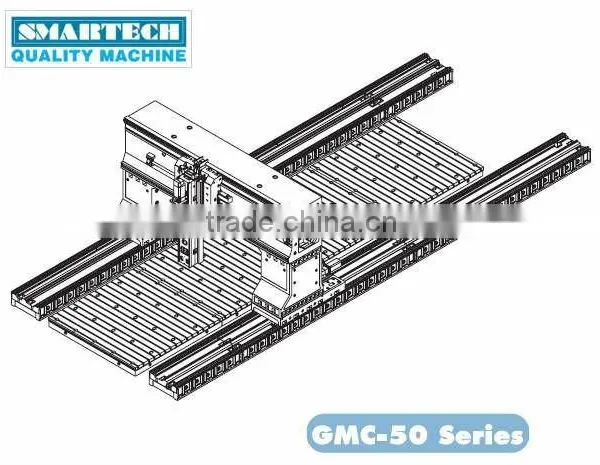

SMARTECH CNC GMC FRAME

1 High-class casting by resin sand and wood mould;

2 Top class imported ball screws sets and bearing ;

3 Imported spindle & tool clamping system ;

4 Imported drive connectors;

5 Column moving

6 Telescopic protection on X/Y axis ;

7 Central lubrication system;

8 Spindle trunk hydraulic balance system;

9 Imported coupling;

10 Harden&ground on all slideways and Turcite-B coated with precise scraping;

MODEL	GMC-5032L
Table Size	4000 x 32000
Travel X	32000
Y	5000
Z	1500
Distance between columns	5000
Spindle Nose to table surface	400-1900
T-Slot(QTY/size/distance)	15/36/250
Spindle Taper/ outside dia	BT50/230
Spindle Speed(max) with ZF Gear box	2500rpm
Spindle Speed(max) standard	2500rpm(Direct Drive)
X axis Ball Screw Spec.	Pinion and Rack
Y axis Ball Screw Spec.	80/20(nut rotating)
Z axis Ball Screw Spec.	63/16
Drive motors recommended X/Y/Z	60/40/40Nm
Table Work Load	5000Kg/m²
Net Weight	300T
