HIGH Brightness IP67 RGB Flexible Remote Control Dimmable Led Rope Light

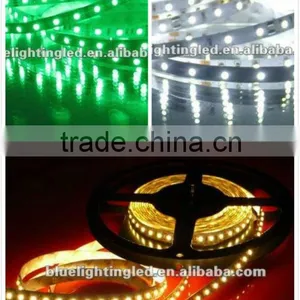

HIGH Brightness IP67 RGB Flexible Remote Control Dimmable Led Rope Light thumbnail-1
HIGH Brightness IP67 RGB Flexible Remote Control Dimmable Led Rope Light photo-1
US$ 5 - 7 MOQ: 10 Meters
Key Specifications
Get Latest Price
LED Light Source:
5mm DIP
Type:
Flex LED Strips
Input Voltage(V):
12/24
Contact Supplier Request Quote Chat Now
Shenzhen Blue Lighting Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source 5mm DIP
Type Flex LED Strips
Input Voltage(V) 12/24
Lamp Power 5.76w/96cm
Lamp Luminous Flux(lm) 384
Color Temperature(CCT) 2700k-7000k
Working Temperature(℃) -20, 50
Working Lifetime(Hour) 100000
Lamp Body Material Other, PCB Board + Silicone
Certification CE, FCC
Emitting Color Other, r,g,b,y,ww,cw,rgb
Place of Origin Guangdong, China
Brand Name Blue Lighting led rope light
Model Number led rope light BL-GW96-12

Specifications

remote control dimmable led rope light
1.length:24,48,72,96,120cm
2.3 years warranty
3.Colors:r,g,b,y,ww,cw,rgb
4.CE Rohs

High brightness IP67 RGB Flexible remote control dimmable led rope light



-- Blue Lighting Technology Co.,Limited

led rope light  part No:  BL-GW96-12





 1.  led rope light Specifiction



Name Content
Brand Blue Lighting
Item type led rope light
Model
 BL-GW96-12
Material
PCB Board + Silicone
Lamp Power
5.76w/96cm
Color temperature
2700k-7000k
CRI
>80
Certification CE,ROHS,FCC
Emitting Color
r,g,b,y,ww,cw,rgb
Lamp Luminous 384LM
length
24cm,48cm,72cm,96cm,120cm
led qty
96pcs/96cm
IP rating
IP67
PCB Color
white,black,yellow
Beam angle
120°
lifespan
≥100,000 hours





2.  led rope light   features:

1.Dimension: 960(L) x 7(W) x 14(H)mm
2. Current: 384mA;
3. LED Qty :  96LEDs/96cm

4. Working voltage  : DC12V/24V

5. Output power:  5.76w

6. Casing material: Silcone

7. Luminous flux: 384Lm
8. View angle: 120 degree
9. Color: Warm White, red, yellow, blue, green, cool white, RGB color

10. Protecting rate: IP67

11. 3M adhesive tape available as per customer's request

12.Temperature durable: -20-50 Degree Celsius; operating temperature: 5-50 Degree Celsius





Model NO.

LED Qty

Valtage

Wattage

IP rate

Luminous

Casting

BL-GW24-12

24pcs/24cm

12V

1.44W

 67

96Lm

silicone

BL-GW48-12

48pcs/48cm

12V

2.88W

 67

192Lm

silicone

BL-GW72-12

72pcs/72cm

12V

4.32W

 67

288Lm

silicone

BL-GW96-12

96pcs/96cm

12V

5.76W

 67

384Lm

silicone

BL-GW120-12

120pcs/120cm

12V

7.2W

 67

480Lm

silicone





  3.  led rope light Applications:



1.Car light decoration
2.Indoor and Outdoor light decoration,
3.Edge decoration,
4.Cove lighting,
5.Super-thin lighted sign and light box
6.Advertisement

HIGH brightness IP67 RGB Flexible remote control dimmable led rope light





4. led rope light Assembly Information:



Solder connection should only be performed on designated solder pads ( marked +/-). The strips can be cut every 3pcs leds between the designated solder pads. The minimum  bending radius is 2cm. The strip can be bent at any angle to fit different needs. With wide viewing angle, evenly illuminated effects.







5.  led rope light Safety Information:



— The flexible led strip itself and all its components may not be mechanically stressed.



— Assembly must not damage or destroy conducting pads on the circuit board. Only qualified   person should be allowed to perform installations.



— Parallel connection is highly recommended. Unbalance voltage drop can cause hazardous overload and damage the strips.



— Please ensure that power supply is of adequate power to operate the total load.



— When mountin on metallic or otherwise conduct surfaces, there need to be an electrical isolation points between strip and the mounting surface.

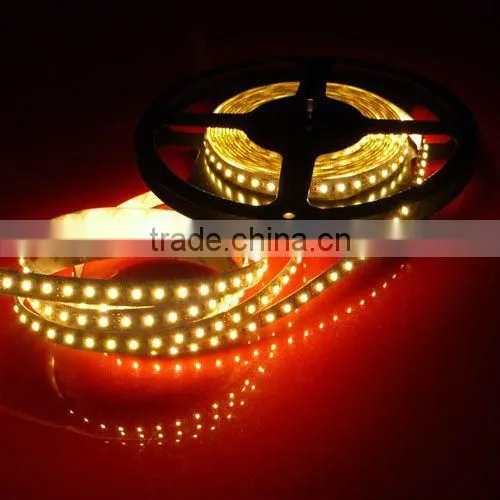

6.  led rope light images:





HIGH brightness IP67 RGB Flexible remote control dimmable led rope lightHIGH brightness IP67 RGB Flexible remote control dimmable led rope lightHIGH brightness IP67 RGB Flexible remote control dimmable led rope lightHIGH brightness IP67 RGB Flexible remote control dimmable led rope lightHIGH brightness IP67 RGB Flexible remote control dimmable led rope lightHIGH brightness IP67 RGB Flexible remote control dimmable led rope light





















7.  led rope light certifications:



HIGH brightness IP67 RGB Flexible remote control dimmable led rope light



   8. led rope light Package:

HIGH brightness IP67 RGB Flexible remote control dimmable led rope light





HIGH brightness IP67 RGB Flexible remote control dimmable led rope light
