Specifications
dip waterproof great wall led pvc great wall strip1.DC12V
2.CE ROHS
3. 3 years warranty
4.MOQ:10 meters

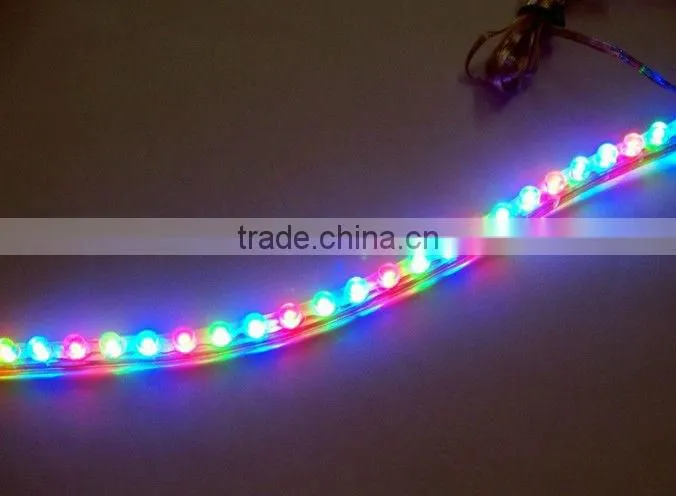

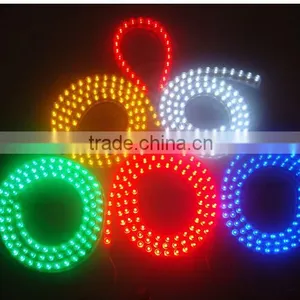

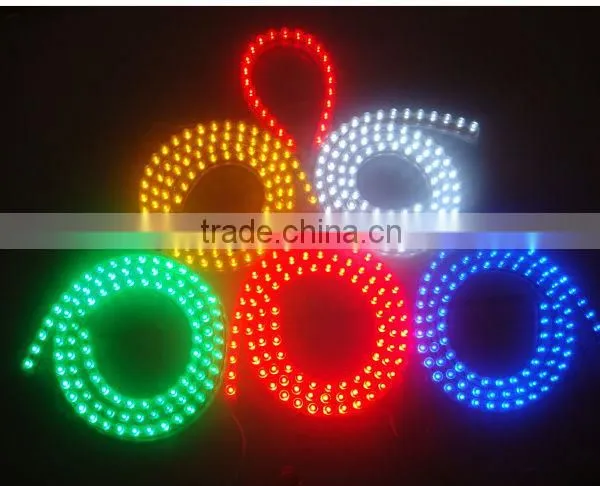

New style decorative 5mm dip waterproof great wall led pvc great wall strip
A. Model No.: RR-3825BP1-12
B. Voltage: 12VDC
C. Power: 0.24Wx100/0.24 Wx10
D. LED Source: 5mm Dip
E. Bulk Life-span: 100,000hrs
F. Body Materials: PCB Board + Silicone
G. Dimension: 500x8x0.2mm
H. Colors availabe: Red, amber, orange, yellow, blue and green
Optical characteristic great wall led pvc great wall strip of the series:
| Part Number | LED Qty | View Angle | Work Voltage | Work Currency | Power/m | Color | Flux( ±15% ) |
| BL-FD-F5-WW-96 | 60pcs | 120° | DC 12V | 240mA | 7.6W/m | pure | 96x5.0LM |
| BL-FD-F5-CW-96 | 60pcs | 120° | DC 12V | 240mA | 7.6W/m | white | 96x6.0LM |
| BL-FD-F5-R-96 | 60pcs | 120° | DC 12V | 240mA | 7.6W/m | red | 96x2.0LM |
| BL-FD-F5-B-96 | 60pcs | 120° | DC 12V | 240mA | 7.6W/m | Blue | 96x4.5LM |
| BL-FD-F5-G-96 | 60pcs | 120° | DC 12V | 240mA | 7.6W/m | Green | 96X1.8LM |
| BL-FD-F5-Y-96 | 60pcs | 120° | DC 12V | 240mA | 7.6W/m | yellow | 96x2.0LM |
great wall led pvc great wall strip Application:
1) Architectural decorative lighting.
2) Indoor decoration.
3) Auditorium walkway lighting.
4) Stairway lighting&decoration.
5) Border/contour lighting.
6) Channel letter lighting.
7) Emergency& security lighting.
8) Cover lighting.
9) Shop-window decoration.
great wall led pvc great wall strip Assembly Information:
Solder connection should only be performed on designated solder pads ( marked +/-). The strips can be cut every 3pcs leds between the designated solder pads. The minimum bending radius is 2cm. The strip can be bent at any angle to fit different needs. With wide viewing angle, evenly illuminated effects.
great wall led pvc great wall strip Safety Information:
— The led ribbon strips itself and all its components may not be mechanically stressed.
— Assembly must not damage or destroy conducting pads on the circuit board. Only qualified person should be allowed to perform installations.
— Parallel connection is highly recommended. Unbalance voltage drop can cause hazardous overload and damage the strips.
— Please ensure that power supply is of adequate power to operate the total load.
— When mountin on metallic or otherwise conduct surfaces, there need to be an electrical isolation points between strip and the mounting surface
