Sino-Telecom High Quality 18 Channels CWDM Mux and Demux
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Sino-Telecom
Model Number:
OEO6500-OMUX-CWDM
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sino-Telecom Rack-mounted 40-channel DWDM Mux and DemuxNegotiableMOQ: 1 Piece -
Sino-Telecom DWDM MUX/DEMUX Unit AWG6148NegotiableMOQ: 2 Units
-
Sino-Telecom 10G Intelligent Optical Bypass Device XSB6104 Which is Used in the Field of Optic Fiber CommunicationNegotiableMOQ: 1 Piece
-
Sino-Telecom Optical Switch Unit OSU6116 Which is Used for Monitoring Multiple Channels of Optical SignalsNegotiableMOQ: 1 Piece
-
Sino-Telecom Optical Distribution Network Placed in a Local Convergence Point ODF Cabinet OEO6500-OTAPNegotiableMOQ: 1 Unit
Place of Origin
Shanghai, China
Brand Name
Sino-Telecom
Model Number
OEO6500-OMUX-CWDM
Overview

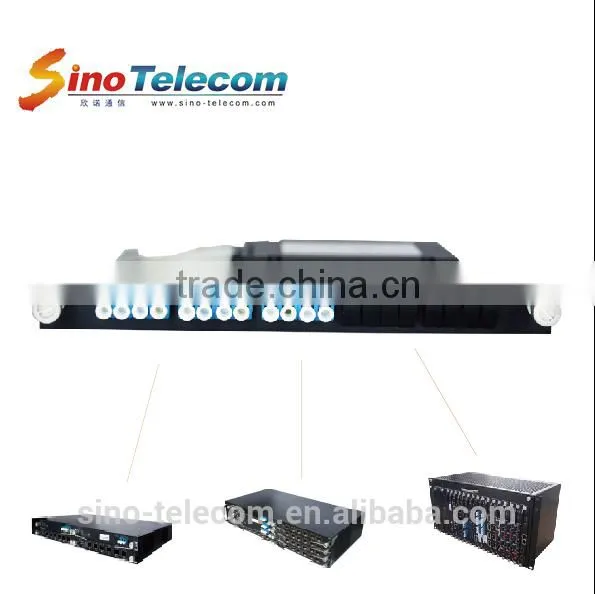

OEO6500-OMUX-CWDM is a 18 channel CWDM MUX / DMUX. It is used to multiplex or de-multiplex optical paths. The CWDM MUX can largely save the limited fiber resources.Network configuration can be flexibly modified according to the dynamic requirements.
Main Function
- It can be hot-pluggable at any rate;
- It supports CWDM wavelengths compliant with ITU-T;
- It can be operated and controlled independently;
- It is with upgrade ports.
Specification
| Parameter CWDM MUX/DMUX | Specifications | Unit |
| Channel Wavelength | CWDM 18 channel | nm |
| Extended Wavelength | 1270-1260 | nm |
| Channel Spacing | 20 | nm |
| Channel Bandwidth | λc + /- 6.5 (minimum) | nm |
| Insertion Loss | ≤ 0.35N (N Channel) | dB |
| Channel Flatness | 2 | dB |
| Isolation | ≥30 | dB |
| Polarization Dependent Loss | < 0.1 | dB |
| Polarization Mode Dispersion | < 0.1 | ps |
| Connector Type | LC |
