Home > Products > NEW WEBSITE > DIN338 HSS Cobalt Reduced Shank Drill Bits

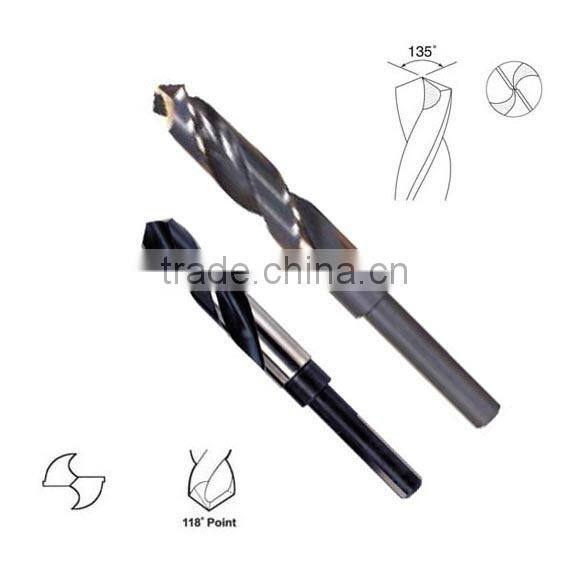

DIN338 HSS Cobalt Reduced Shank Drill Bits
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | DM | |
| Model Number | DM-RF1103 | Type | Twist Drill Bit | |
| Material | High Speed Steel | Use | Metal Drilling |
Product Description
Specifications
Made from Industrial grade cobalt high speed steel, 118 degree angle point. Standard right hand spiral.DIN338 HSS Cobalt Reduced Shank Drill Bits
* Made from Industrial grade cobalt high speed steel, 118 degree angle point.
Standard right hand spiral.
* 135 degree split point are available on request.
* Highly efficient standard drill suitable for all usual drilling work in all normal materials.
High security against fracture. Ideally suitable for drilling largish drilling diameters on
all commonly-used drilling machines with a clamping chuck up to 13mm.
* For steel and alloyed cast steel over 900 N/mm2 strength, grey cast, malleable cast,
high-alloyed chromium steel such as stainless and acid resistant steel.
* Coffee color finish or Bright finish or Titanium Coated are available on request.
* Drill Bits Set are available on request.
Size available ( DIN338 type N ):
Item No. | Size | Flute Length | Overall Length | Shank Size | R Shank Length |
D338-RDCo-001 | 10.5mm | 87 | 133 | 10 | 30 |
D338-RDCo-002 | 11.0mm | 94 | 142 | 10 | 30 |
D338-RDCo-003 | 11.5mm | 94 | 142 | 10 | 30 |
D338-RDCo-004 | 12.0mm | 101 | 151 | 10 | 30 |
D338-RDCo-005 | 12.5mm | 101 | 151 | 10 | 30 |
D338-RDCo-006 | 13.0mm | 101 | 151 | 10 | 30 |
D338-RDCo-007 | 13.5mm | 108 | 160 | 10 | 30 |
D338-RDCo-008 | 14.0mm | 108 | 160 | 10 | 30 |
D338-RDCo-009 | 14.5mm | 114 | 169 | 10 | 30 |
D338-RDCo-010 | 15.0mm | 114 | 169 | 10 | 30 |
D338-RDCo-011 | 15.5mm | 120 | 178 | 10 | 30 |
D338-RDCo-012 | 16.0mm | 120 | 178 | 10 | 30 |
D338-RDCo-013 | 16.5mm | 125 | 184 | 13 | 35 |
D338-RDCo-014 | 17.0mm | 125 | 184 | 13 | 35 |
D338-RDCo-015 | 17.5mm | 130 | 191 | 13 | 35 |
D338-RDCo-016 | 18.0mm | 130 | 191 | 13 | 35 |
D338-RDCo-017 | 18.5mm | 135 | 198 | 13 | 35 |
D338-RDCo-018 | 19.0mm | 135 | 198 | 13 | 35 |
D338-RDCo-019 | 19.5mm | 140 | 205 | 13 | 35 |
D338-RDCo-020 | 20.0mm | 140 | 205 | 13 | 35 |
D338-RDCo-021 | 22.0mm | 140 | 205 | 13 | 35 |
D338-RDCo-022 | 24.0mm | 140 | 205 | 13 | 35 |
D338-RDCo-023 | 25.0mm | 140 | 205 | 13 | 35 |
