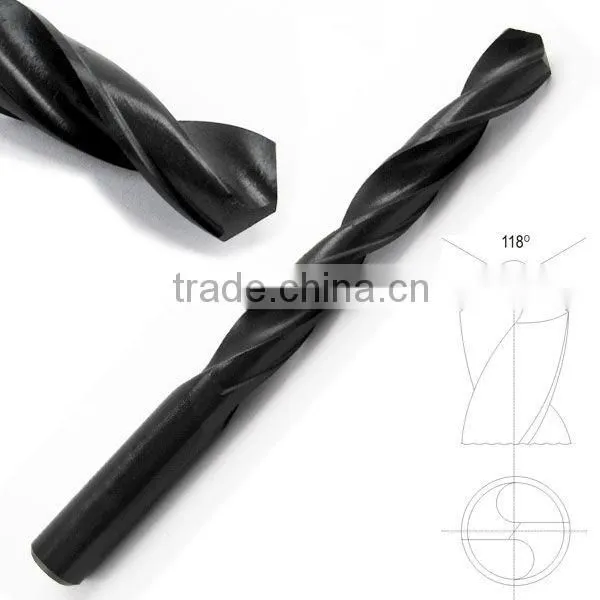

HSS Twist Drill Bits, DIN338, Rolled.

HSS Twist Drill Bits, DIN338, Rolled. thumbnail-1
HSS Twist Drill Bits, DIN338, Rolled. photo-1
US$ 0.3 - 15 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
DAMING
Model Number:
10HO1111
Contact Supplier Request Quote Chat Now
Danyang Daming Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name DAMING
Model Number 10HO1111
Type Twist Drill Bit
Material High Speed Steel
Use Metal Drilling

Specifications

Manufacturing Process:Roll Forged;
Material: HSS;

 HSS Twist Drill Bits, DIN338, Rolled.





 D(mm)  L2(mm) L1(mm)  D(mm)  L2 (mm) L1(mm)   D(mm)  L2 (mm) L1(mm)  D(mm)  L2 (mm) L1(mm)
0.2 2.5 19 1.95 24 49 6 57 93 11.2 94 142
0.22 2.5 19 2 24 49 6.1 63 101 11.3 94 142
0.25 3 19 2.05 24 49 6.2 63 101 11.4 94 142
0.28 3 19 2.1 24 49 6.3 63 101 11.5 94 142
0.3 3 19 2.15 27 53 6.4 63 101 11.6 94 142
0.32 4 19 2.2 27 53 6.5 63 101 11.7 94 142
0.35 4 19 2.25 27 53 6.6 63 101 11.8 94 142
0.38 4 19 2.3 27 53 6.7 63 101 11.9 101 151
0.4 5 20 2.35 27 53 6.8 69 109 12 101 151
0.42 5 20 2.4 30 57 6.9 69 109 12.1 101 151
0.45 5 20 2.45 30 57 7 69 109 12.2 101 151
0.48 5 20 2.5 30 57 7.1 69 109 12.3 101 151
0.5 6 22 2.55 30 57 7.2 69 109 12.4 101 151
0.52 6 22 2.6 30 57 7.3 69 109 12.5 101 151
0.55 7 24 2.65 30 57 7.4 69 109 12.6 101 151
0.58 7 24 2.7 33 61 7.5 69 109 12.7 101 151
0.6 7 24 2.75 33 61 7.6 75 117 12.85 101 151
0.62 8 26 2.8 33 61 7.7 75 117 12.9 101 151
0.65 8 26 2.85 33 61 7.8 75 117 13 101 151
0.68 9 28 2.9 33 61 7.9 75 117 13.1 101 151
0.7 9 28 2.95 33 61 8 75 117 13.2 101 151
0.72 9 28 3 33 61 8.1 75 117 13.3 108 160
0.75 9 28 3.1 36 65 8.2 75 117 13.4 108 160
0.78 10 30 3.2 36 65 8.3 75 117 13.5 108 160
0.8 10 30 3.3 36 65 8.4 75 117 13.6 108 160
0.82 10 30 3.4 39 70 8.5 75 117 13.7 108 160
0.85 10 30 3.5 39 70 8.6 81 125 13.8 108 160
0.88 11 32 3.6 39 70 8.7 81 125 13.9 108 160
0.9 11 32 3.7 39 70 880 81 125 14 108 160
0.92 11 32 3.8 43 75 8.9 81 125 14.25 114 169
0.95 11 32 3.9 43 75 9 81 125 14.5 114 169
0.98 12 34 4 43 75 9.1 81 125 14.75 114 169
1 12 34 4.1 43 75 9.2 81 125 15 114 169
1.05 12 34 4.2 43 75 9.3 81 125 15.25 120 178
1.1 14 36 4.3 47 80 9.4 81 125 15.5 120 178
1.15 14 36 4.4 47 80 9.5 81 125 15.75 120 178
1.2 16 38 4.5 47 80 9.6 87 133 16 120 178
1.25 16 38 4.6 47 80 9.7 87 133 16.25 125 184
1.3 16 38 4.7 47 80 9.8 87 133 16.5 125 184
1.35 18 40 4.8 52 86 9.9 87 133 16.75 125 184
1.4 18 40 4.9 52 86 10 87 133 17 125 184
1.45 18 40 5 52 86 10.2 87 133 17.25 130 191
1.5 18 40 5.1 52 86 10.3 87 133 17.5 130 191
1.55 20 43 5.2 52 86 10.4 87 133 17.75 130 191
1.6 20 43 5.3 52 86 10.5 87 133 18 130 191
1.65 20 43 5.4 57 93 10.6 87 133 18.5 135 198
1.7 20 43 5.5 57 93 10.7 94 142 18.75 135 198
1.75 22 46 5.6 57 93 10.8 94 142 19 135 198
1.8 22 46 5.7 57 93 10.9 94 142 19.25 140 205
1.85 22 46 5.8 57 93 11 94 142 19.5 140 205
1.9 22 46 5.9 57 93 11.1 94 142 19.75 140 205
                  20 140 205
