Hebei Juming Conveyor Idler Roller.
China 89mm diameter 3 roll trough steel conveyor roller manufacturer.
Estabilished: in 1980 -More than 30 years experience
Factory square meters: About 19,000 square meters
Number of employees: More than 200 workers.
Export Market: Main markets are Asia,North America, Europe, Africa and South America
Standard: GB,ISO,CEMA,JIS
Our Aim: Quality First, Reputation First, Customer First.
Product: Carrier roller, trough roller, impact roller, steel return roller, v return roller, rubber disc return roller, HDPE roller, etc.

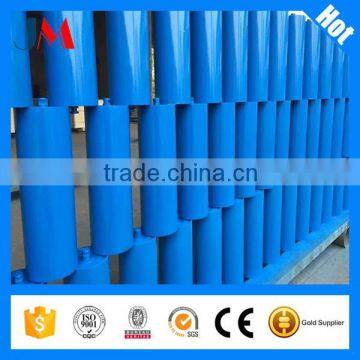

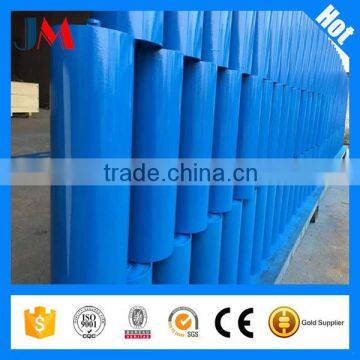

--Name: troughing roller for belt conveyor.
--Diameter: 89-219mm
--Pipe: Q235(GB), equal to S235JR (DIN),
--Shaft: 45# steel (GB), equal to C45 (DIN),
--Bearing: ball bearing,SKF,NSK,FAG,HRB,etc,
--Bearing housing: ST14 (DIN),
--Grease: lithium soap type grease,
--Labyrinth seal: nylon 6 labyrinth seal,

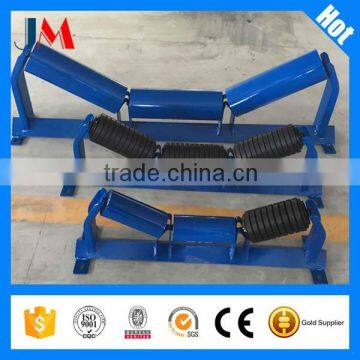

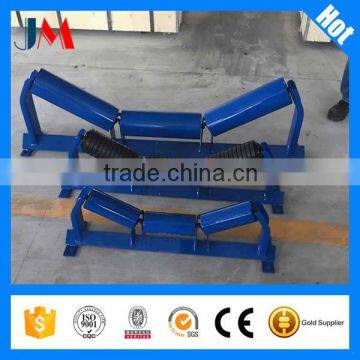

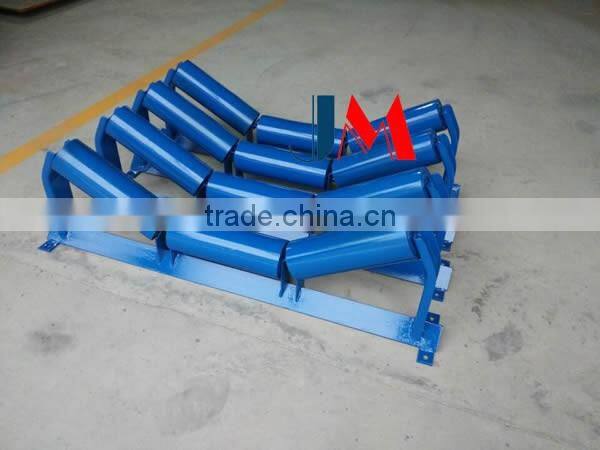

Trough carrier roller:
Bearing: 6204/205/305/306/307/308
Diameter: 76,89,108,102,114,127,135,159mm(common) Shaft dia:20,25,30mm
TYPE |
Belt Width |
Roller Diameter |
Dimension |
Weight (KG) |
|||||||
RL |
SL |
d |
a |
b |
c |
e |
t |
||||
BW400 |
400 |
89 |
145 |
178 |
20 |
16.5 |
4 |
8.5 |
4 |
14 |
2.2 |
BW450 |
480 |
89 |
165 |
198 |
20 |
16.5 |
4 |
8.5 |
4 |
14 |
2.4 |
BW500 |
500 |
89 |
180 |
213 |
20 |
16.5 |
4 |
8.5 |
4 |
14 |
2.5 |
BW600 |
600 |
89 |
210 |
243 |
20 |
16.5 |
4 |
8.5 |
4 |
14 |
2.8 |
BW650 |
650 |
89 |
230 |
263 |
20 |
16.5 |
4 |
8.5 |
4 |
14 |
3.0 |
BW750 |
750 |
114 |
265 |
298 |
20 |
16.5 |
4 |
8.5 |
4 |
14 |
4.2 |
BW800 |
800 |
114 |
280 |
313 |
20 |
16.5 |
4 |
8.5 |
4 |
14 |
4.3 |
BW900 |
900 |
114 |
315 |
348 |
20 |
16.5 |
4 |
8.5 |
4 |
14 |
4.8 |
BW1000 |
1000 |
114 |
345 |
378 |
20 |
16.5 |
4 |
8.5 |
4 |
14 |
5.1 |
BW1050 |
1050 |
140 |
370 |
410 |
25 |
20 |
4 |
11 |
5 |
18 |
8.1 |
BW1200 |
1200 |
140 |
420 |
460 |
25 |
20 |
4 |
11 |
5 |
18 |
9.0 |
BW1400 |
1400 |
165 |
500 |
540 |
30 |
20 |
4 |
11 |
5 |
22 |
16.9 |
BW1600 |
1600 |
165 |
580 |
620 |
30 |
20 |
4 |
11 |
5 |
22 |
18.9 |
BW1800 |
1800 |
165 |
650 |
690 |
35 |
20 |
4 |
11 |
5 |
25 |
22.0 |
BW2000 |
2000 |
165 |
730 |
770 |
35 |
20 |
4 |
11 |
5 |
25 |
24.2 |
Impact roller:
Dia: 89,108,102,114,127,135,159mm, Shaft dia:20,25,30mm
Bearing: 6204/205/305/306
Flat return roller:
Rubber disc return roller:
Guide roller:
Garland / suspended roller:

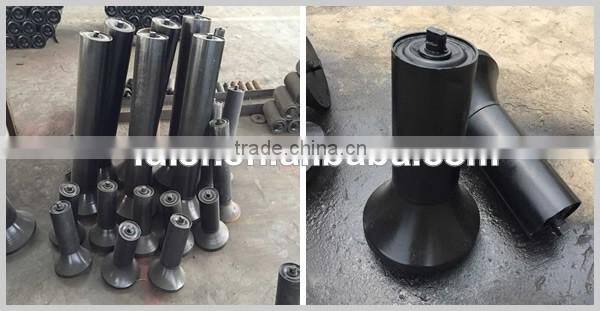

Tapered roller:
HDPE Roller:

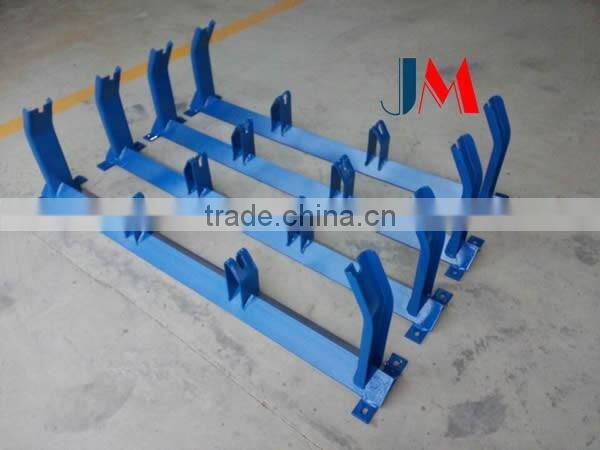

Trough frame/bracket:
Self-aligning Trough and Return bracket:
When you need conveyor trough steel roller, pls feedback us,
we are manufacturer, quote good price to you.
