Gravity Conveyor Roller for Troughing Carrier Roller Set.
Juming gravity conveyor roller with GB,ISO,DIN,CEMA,JIS standard.
certificated by the CE and ISO9001/2000.
Exported to USA, Russia, Belgium,Spain,Australia, New Zealand, South Africa, and so on.
Name: Gravity Conveyor Roller.
Diameter: 63.5mm-219mm.
Length: 150-3500mm.
Tube: customized Q235 welded steel tube or seamless tube.
Shaft: bright drawn steel to required bearing tolerance.
Seals: grease retaining inner seal with multi-layer labyrinth and retention cap with outboard rubbing flinger seal.
Painting: ordinary painting, hot galvanized painting, electric static spraying painting.
Bearing: single & double row deep groove ball bearing 2RZ & 2Z with C3 clearance.
Shaft end: both ends of tube are simultaneously machined and chamfered.
Sample of gravity conveyor roller is free and available to you.
Standard diameter |
Length scope (mm) |
Bearing type (min-max) |
Idler's shell wall thickness |
|
mm |
inch |
|||
63.5 |
2 1/2 |
150-3500 |
204 |
3.0mm-3.75mm |
76 |
3 |
204 205 |
3.0mm-4.0mm |
|
89 |
3 1/3 |
204 205 |
3.0mm-4.0mm |
|
102 |
4 |
204 205 305 |
3.5mm-4.0mm |
|
108 |
4 1/4 |
204 205 305 306 |
3.5mm-4.0mm |
|
114 |
4 1/2 |
205 206 305 306 |
3.5mm-4.5mm |
|
127 |
5 |
204 205 305 306 |
3.5mm-4.5mm |
|
133 |
5 1/4 |
205 206 207 305 306 |
3.5mm-4.5mm |
|
140 |
5 1/2 |
205 206 207 305 306 |
3.5mm-4.5mm |
|
152 |
6 |
205 206 207 305 306 307 308 |
4.0mm-4.5mm |
|
159 |
6 1/4 |
205 206 207 305 306 307 308 |
4.0mm-4.5mm |
|
165 |
6 1/2 |
207 305 306 307 308 |
4.5mm-6.0mm |
|
177.8 |
7 |
207 306 307 308 309 |
4.5mm-6.0mm |
|
190.7 |
7 1/2 |
207 306 307 308 309 |
4.5mm-6.0mm |
|
194 |
7 5/8 |
207 307 308 309 310 |
4.5mm-6.0mm |
|
219 |
8 5/8 |
308 309 310 |
4.5mm-6.0mm |
|
Various conveyor roller include: Carrier roller, Return roller, Impact roller, Guide idler, Tapered roller,Garland roller, Rubber roller, Gravity conveyor roller, nylon idler, plastic idler, steel roller, stainless steel idler,etc.
Estabilish Year: in 1980 -More than 30 years experience
Factory square meters: About 19,000 square meters
Number of employees: More than 200 workers,with abundant experience and industrious and hardworking staff, we can meet various requirements from different types of customers.
Export Market: Main markets are Asia,North America, Europe, Africa and South America
Certifications: Passed ISO9001,BV,and CE certifications
Types of Products: conveyor roller, gravity conveyor roller, pulley, belt and stand.
Standard: GB,ISO,DIN,CEMA,JIS
Our Aim: Quality First,Reputation First,Customer First.

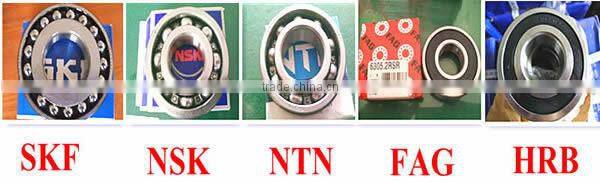

Bearing & Seal:
Advantages of Gravity Conveyor Roller:
(1)easy installation and nice flexibility;
(2)low friction coefficient; dustproof and waterproof;
(3)fine welding technique ensure carrier roller with low vibration and noise;
(4)electrostatic spraying technic makes the roller more durable and good-looking;
(5)strict inspection standard ensures our high quality product.
Gravity conveyor roller is widely used in the steel & coal & cement factory,power plant,harbor,sea port,quarry,chemical plant,grains plant,logistics,and other bulk material handling,etc.
Matters need attention:
(1)carefully check whether the appearance of gravity conveyor roller have serious damage bump phenomenon or not before using, also guarantee that rotating roller should be flexible rotation without jamming.
(2)the distance of installing gravity conveyor roller should be precisely confirmed according to conveyor's characteristics and materials ,avoiding too sparse or too dense.
(3)generally, the lifetime of gravity conveyor roller is much more than 30,000 hours and no need to maintain.
but, according to the working conditions and time, it need repair and clean regularly, so that it will lengthen their lifetime.
(4)when replace these bearings, it should keep appropriate distance.
(5)in order to guarantee the airtightness and using function, no disassembly casually.
Generally, these gravity conveyor roller are packed in plastic film inside,then packed into wooden-box, finally packed into 20'GP/40'GP containers.
also, we can pack it according to your requirement.
FAQ:
Q: Can you design the product according to my requirement?
A: YES. We can do what you needed base on your product specification or drawing.
Q: What is the advantage of Juming compared to other suppliers?
A.Since the manufacturing team all possesses years of experience, Juming can provide conveyors and accessories with competitive price and superior service.We have professional sales team, production team, researching team.
Q: I’m interested in your product, could you please send sample to me?
A: 1) It is free if sample is in stock, new partners pay for the express fee.
2) We will make the sample according to your requirement if we don’t have sample in stock, and new partners pay for sample and the express fee.
3) We do appreciate your support, the sample express fee will be returned to you after we work with each other.
Q: Can you accept international third-party organizations inspection?
A: YES. gravity conveyor roller
Q: How about quality control?
A: We’ll produce the products according to confirmed quality, we can not ensure every product is 100% same, but we can do it within the tolerance.
Above is the simple description of our gravity conveyor roller, welcome your inquiry, a good factory price will be sent to you.
