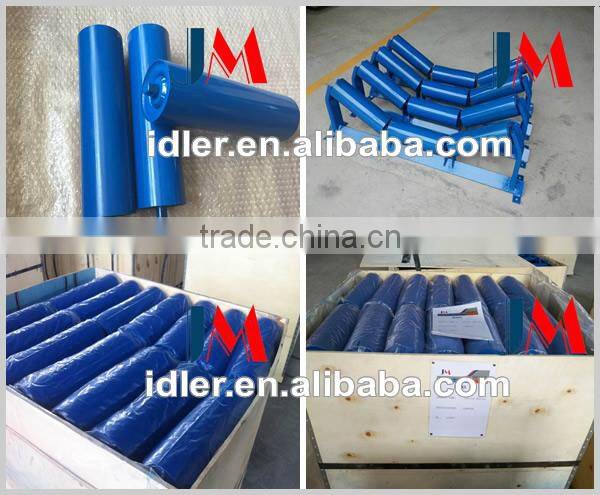

Steel Troughing Idler Rollers, Belt Conveyor Rollers, Conveyor Steel Roller.

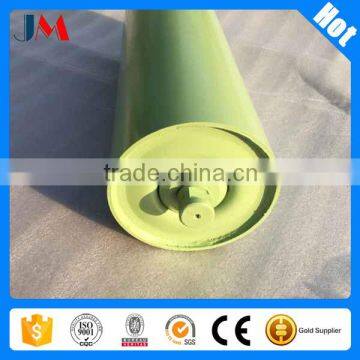

Name: Conveyor Steel Roller.
a. Pipe: Q235(GB), equal to S235JR (DIN),
b. Shaft: 45# steel (GB), equal to C45 (DIN),
c. Bearing: ball bearing,
d. Bearing housing: ST14 (DIN),
e. Grease: lithium soap type grease,
f. Labyrinth seal: nylon 6 labyrinth seal,
h. Surface preparation: ordinary painting, electric static spraying, baking finish, hot galvanized.
i. Application: widely used to cement, mining, coal, harbor, etc.
Standard diameter |
Length scope (mm) |
Bearing type (min-max) |
Idler's shell wall thickness |
|
mm |
inch |
|||
63.5 |
2 1/2 |
150-3500 |
204 |
3.0mm-3.75mm |
76 |
3 |
204 205 |
3.0mm-4.0mm |
|
89 |
3 1/3 |
204 205 |
3.0mm-4.0mm |
|
102 |
4 |
204 205 305 |
3.5mm-4.0mm |
|
108 |
4 1/4 |
204 205 305 306 |
3.5mm-4.0mm |
|
114 |
4 1/2 |
205 206 305 306 |
3.5mm-4.5mm |
|
127 |
5 |
204 205 305 306 |
3.5mm-4.5mm |
|
133 |
5 1/4 |
205 206 207 305 306 |
3.5mm-4.5mm |
|
140 |
5 1/2 |
205 206 207 305 306 |
3.5mm-4.5mm |
|
152 |
6 |
205 206 207 305 306 307 308 |
4.0mm-4.5mm |
|
159 |
6 1/4 |
205 206 207 305 306 307 308 |
4.0mm-4.5mm |
|
165 |
6 1/2 |
207 305 306 307 308 |
4.5mm-6.0mm |
|
177.8 |
7 |
207 306 307 308 309 |
4.5mm-6.0mm |
|
190.7 |
7 1/2 |
207 306 307 308 309 |
4.5mm-6.0mm |
|
194 |
7 5/8 |
207 307 308 309 310 |
4.5mm-6.0mm |
|
219 |
8 5/8 |
308 309 310 |
4.5mm-6.0mm |
|
Various conveyor steel roller include:
Carrying roller, Impact roller, Guide roller, Return roller, Traing roller, Nylon roller, Stainless steel roller, Gravity conveyor roller,Trough roller,etc.

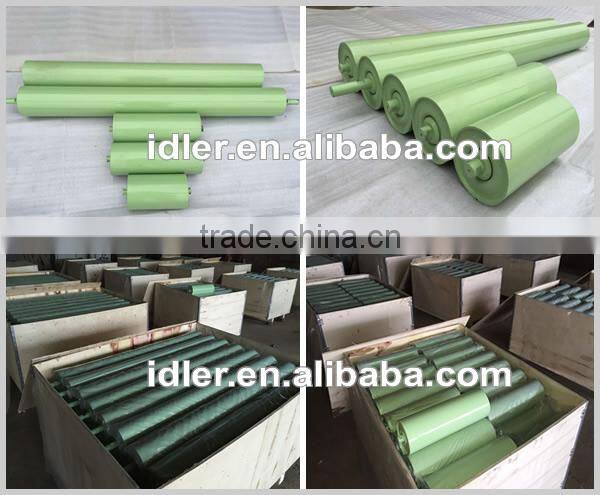

Package and Transportation: Generally, these conveyor steel roller are packed plastic bags inside and wooden box outside,then into containers.
also, we can pack it according to your requirement.
Above is the simple description of our conveyor steel roller.
Welcome your inquiry to us, good factory price will be sent to you.
Besides, sample of such conveyor steel roller is free and available if you need.
