Specifications
1. Special use for police car2.1/4" sony super had II zoom camera
3. 26x zoom lens, F1.6-F3.8
4. auto swing, guard tour
The rugged PTZ camera with a robotic pan/tilt mechanism featured here is ideal for use in harsh environments. It covers a wide range of surveillance areas such as oil plants, chemical factories, industrial areas, high-voltage current substations, power station, sports stadiums and more. It is also great for watching over equipment and production.
Function Featueras:
• 1/4" Super HAD CCD, Sony optical 26x zoom with image stabilizer

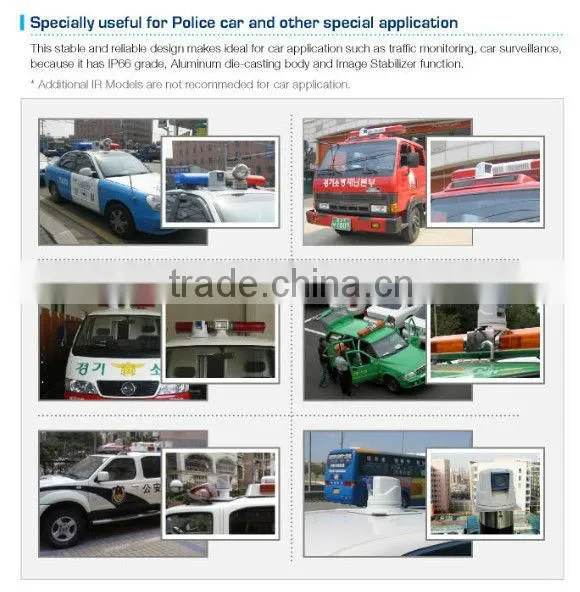

• Specially useful for Police car and other special application
• IP65 Outdoor Application
• Endless Pan rotation (-45° to 90 ° Tilt angle)
• Up to 63 programmable preset
• less than ±0.1° Preset Accuracy
• 8 programmable Tour, 4 Pattern
• Alarm - Move the camera to programmed Preset position
with Alarm trigger.(Max. 2)
• 4 Scan(Programmable speed and diagonal scan)
• Programmable Privacy Masking(2 Zones)
• RS-422, RS-485 communication
• Multiple protocol (Pelco-D, Pelco-P, Wonwoo)
• Built-in Menu System for Setup of Programmable Functions
• Mechanical Auto Flip
• Programmable Zoom Speed(Optional Update tool)
• DC 12V, 3A
Specifications:
Model |
WCC-E261MP |
||
Signal Format |
NTSC |
PAL |
|
Image Sensor |
1/4 inch Sony Super HAD CCD |
||
Effective Pixels |
Approx. 630K |
Approx. 740K |
|
Horizontal Resolution |
480 TV Lines |
||
Minimum Illumination |
0.7 Lux (typical, 30 IRE), 0.05 Lux (ICR mode), 0.001 Lux (DSS B/W mode) |
||
Lens |
26x Zoom, f=3.5 mm (wide)to 91.0 mm (tele), F1.6 to F3.8 |
||
S/N Ratio |
More than 50d B |
||
|
Pan |
Angle |
0~360°( Endless ) |
|
Manual Speed |
More than 100°/sec |
||
Preset Speed |
More than 120°/sec |
||
Tilt |
Angle |
-45 to 90° |
|
Manual Speed |
Max. 60°/sec |
||
On-Screen Display |
Camera ID, Camera name, area name and Preset number |
||
Auto Swing |
Max.4 Pan Swing (2 Position Swing ) |
||
Preset |
63 positions |
||
Guard Tour |
4 tours, consisting of 63 presets and functions, Automatic |
||
ID (Camera Address) |
0~255 address |
||
Control |
RS-485, baud rate: 2400/38400 bps |
||
Construction |
Die-cast Aluminum &"O"-Ring sealed. All internal parts are corrosion protected epoxy powder coating |
||
Power |
DC 12V ~DC 18V 50/60 Hz 3A |
||
Operating Temperature |
Outdoor: -40°C to 55°C |
||
Humidity |
30 to 90%RH (non-condensing) |
||
Dimensions / Weight |
190 (Φ) x 152(H) mm / 4.0 kg |
||
