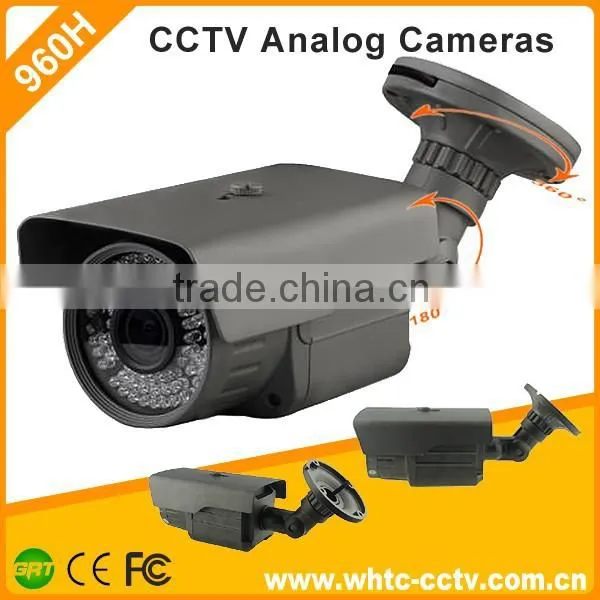

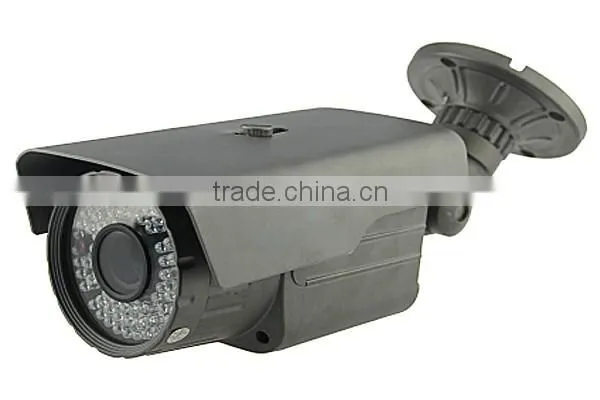

2.8-12mm Varifocal lens ccd 700TVL osd ATR wdr camera
WDR Camera
1. Color IR waterproof Varifocal camera, IP66
2. 1/3'' Sony Super HAD 960H CCD II
3. Horizontal resolution 700TVL
4. BLC/AWB; WDR DNR function
5. 72pcs Ø5 IR LED, IR range: 30~60M
6. Cable-managed Bracket
7. 2.8~12mm, 4~9mm, 9~22mm lens optional
8. OSD-cable control or UTC OSD Control optional
Specification
Model NO. |
GIZ72E-3SHA wdr camera |
Camera |
|
Image Sensor |
1/3'' Sony Super Exview HAD 960H CCD II
|
Main processor |
CXD4140GG |
Resolution |
700TVL |
Effective Pixels |
NTSC:976(H)*494(V) ; PAL:976(H)*582(V) |
TV System |
PAL/NTSC |
Highlights features |
WDR,DNR,HLC, Motion Detection,Privacy Mask…..By OSD Set up |
OSD Control |
Conventional keys and UTC Control Optional |
Electronic Shutter Time |
Auto: PAL 1/1-1/10000Sec; NTSC 1/1-1/10000Sec |
Sync System |
Internal |
Usable Illumination |
0.01Lux (5 LUX IR ON) |
S/N Ratio |
≥52dB |
Scanning System |
Progressive |
Video Output |
1.0Vp-p Composite Signal (75ohm) |
Lens |
|
Focus Length |
2.8-12mm Varifocal Lens |
Focus Control |
Varifocal |
Lens Type |
Varifocal |
Pixels |
MPixels IR |
Night Vision |
|
Infrared LED |
5X 72PCS |
Infrared Distance |
30M~60M |
IR Status |
Under 10 Lux By IR led |
IR Power On |
Auto Control |
Camera Features |
|
Day/Night |
Color/ B&W (IR-LED ) |
General |
|
Housing |
Metal |
Anti-cut Bracket |
Cable-managed Bracket |
Operation Temperature |
-10℃ ~ +50℃ RH95% Max |
Storage Temperature |
-20℃ ~ +60℃ RH95% Max |
Power Source |
DC12V±10%, 800mA |
Dimension |
353 (L)x119(W)x98(D)mm |
Weight |
1.5kgs |
All Optional Accessories
Qulity Assurance
1. Input Quality Control
2. Aging test for main raw material
3. Production in factory
4. 48 hours aging test for finished products
5. QA inspect samples
Assuranc Business Terms
1. MOQ: 1pcs
2. Delivery terms: EX work, FOB, CFR, CIF etc.
3. Delivery time: Sample: within 3 working days
100~200pcs: 5 working days
201~800pcs: 10 working days
4. Payment terms: T/T before deliver, L/C, Western Union, MoneyGram
Our Service
1. OEM and ODM, private labeling and distributorships are accepted
a. Logo printing
b. DIY Sticker/Label
c. Branding Your Boxes
d. Boot Logo
2. Your designated market area, idea of design and all private information are protected
3. Well-trained and experienced staffs will answer all enquiries and questions within 24hours
4. Providing free online technical support
5. 2-years warranty support
FAQ
Q: What's the MOQ?
A: MOQ is 1pcs for your first order.
Q: How long is the delivery time?
A: Sample order is around 5 working days, bulk order is 7-10 working days.
Q: How long is the warranty
A: All of product is two years after shipment
Q: Why do you choose us GRT?
A1. All of our product is 48 hours aging test
A2. Provided free CMS software
A3. Updated software version promptly
A4. Provided free technical support
A5. Updated full price list per month as per the feedback of security market
A6. Good pre-sale and after-sale service from GRT
