Belowing is for reference only. Any need, pls send the CAD/PDF drawings or samples to us, we will produce it as your demand.

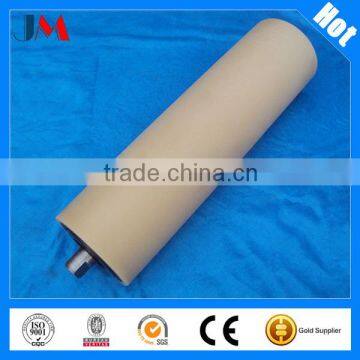

professional belt conveyor nylon idler roller with frame for sale JMCI 51
Details of our products
Feature of Bitumen Industrial Belt Conveyor Idler Roller
1. Roller components: Roller skin; shaft; bearing; bearing housing; sealing parts
2. Diameter:50-219mm.
3. Length:190-3500mm.
4. Material: carbon steel pipe, rubber, HDPE or UHMWPE
5. Shafts diameter from 20 - 40mm
6. Shaft external length: 10-40 mm on each side or as drawing
7. Tube wall thickness: 2-5mm or more than 5mm
8. The oil loading of the shaft should be 2/3 to 3/4of the bearing gap, the space between the sealing ring should be filled.
9. The idler external circular radial beat range
Belt speed ≥3.15m/s:0.5-1.7;
Belt speed <3.15m/s:0.6-1.9
10. Under the 500N axial pressure,the axial displacement of the idler must be less than 0.7mm
11. The idler can work normally in the water and dust.
Specification of Coal Mines Belt Conveyor Idler Roller
Idler Diameter |
Length Scope |
Shaft Diameter |
Bearings Type |
50 |
150-2500 |
20;25 |
204 |
63.5 |
20;25 |
204 |
|
76 |
20;25 |
204; 205 |
|
89 |
20;25 |
204; 205 |
|
102 |
20;25;30 |
204; 205; 305 |
|
108 |
20;25;30 |
204; 205; 305; 306 |
|
114 |
20;25;30 |
205; 206; 305; 306 |
|
127 |
20;25;30 |
204; 205; 305; 306 |
|
133 |
20;25;30 |
205; 206; 207; 305; 306 |
|
140 |
20;25;30 |
205; 206; 207; 305; 306 |
|
152 |
20;25;30 |
205; 206; 207; 305; 306; 307; 308 |
|
159 |
20;25;30;40;45 |
205; 206; 207; 305; 306; 307; 308 |
|
165 |
20;25;30;40;45 |
207; 305; 306; 307; 308 |
|
177.8 |
20;25;30;40;45 |
207; 306; 307; 308; 309 |
|
190.7 |
20;25;30;40;45 |
207; 306; 307; 308; 309 |
|
194 |
20;25;30;40;45 |
207; 307; 308; 309; 310 |
|
219 |
20;25;30;40;45 |
308; 309; 310 |

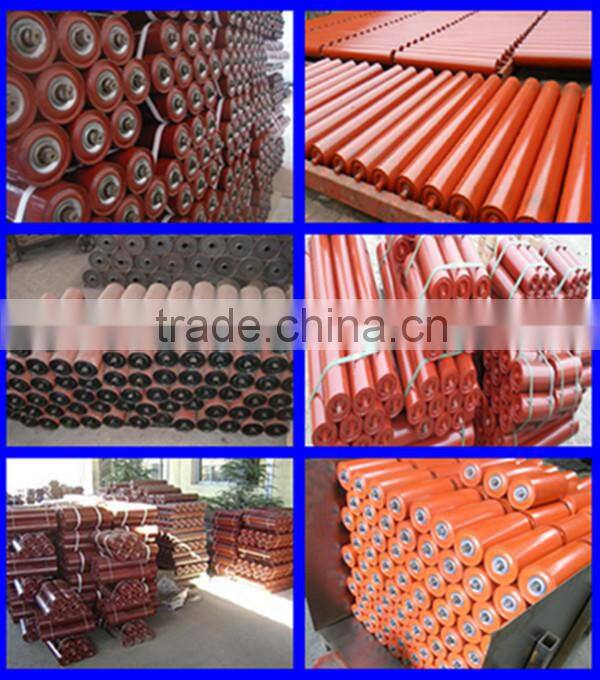

Photo of Coal Mine Belt Conveyor Idler Roller
Product Process of Coal Mine Belt Conveyor Idler Roller

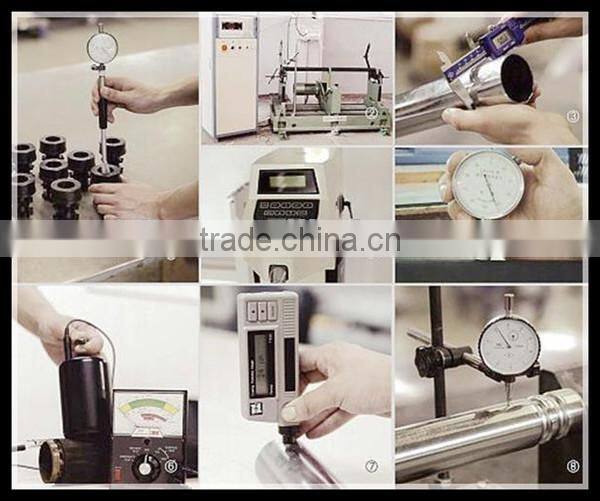

Quanlity Control of Coal Mine Belt Conveyor Idler Roller
Strong and durable packaging & Shipping
Packaging of Coal Mine Belt Conveyor Idler Roller , HDPE Conveyor Roller Packaging is plastic film inside,into wooden-box, 20'GP/40'GP containers, or according to your requirement.
Shipping of Coal Mine Belt Conveyor Idler Roller , 15 -20workdays after receiving your confirmation from TianjinXingang or negotiated.
Various of the Application
Conveyor Idler Roller is widely used in the industry of coal mining, power plant, harbor, metallurgy, cement plant, asphalt manufacture, quarrying, concrete batching plant and etc for the transportation of bulk materials.
Services we can supply
Before Service
We provide OEM service based on the design drawing or the sample. We can also provide any other customized belt conveyor idler rollers on the base of your drawings or original samples.
After Service
About shipment and sample quality tracking include life time,all your inquiry will be replied within 24 hours by our Customer service professionals.Any questions pleease feel free to contact with us.
About us
Welcome to pay us a visit always!!!
Estabilish Year: in 1980 -More than 30 years experience
Factory square meters: about 19,000 square meters
Export Market: main markets are Asia,North America, Europe, Africa and South America
Certifications: passed ISO9001,BV,and CE certifications
Types of Products: conveyor roller,conveyor pulley,conveyor belt,conveyor frame,etc.
Why choose us?
Q: What are we doing?
A: We specialized in manufacturing and designing conveyors and parts (conveyor roller, conveyor pulley, conveyor idler, frame, conveyor belt etc) for 30 years.
Q: What’s the advantage compared to other suppliers?
A: We provide conveyor and parts with competitive price and superior service. We have professional sales team, production team, researching team.
Q: How is our customer service?
A: all our sales representatives can speak fluent English. They will answer all of your questions in 24 hours.
Q: What others can we offer?
A: Based on the wide product range, we offer the best One-Stop sourcing service. We will definitely save you a lot of time and money, and based on our huge quantity of shipment, we can get the best shipping service from the best forwarders. This will also help you to save a lot on the shipment. For the installing of the large-scale belt conveyor, overseas service is accessible for us.
Why Choose Us???
* Manufacturer of belt conveyor systems, conveyor roller, conveyor pulley, conveyor bracket and conveyor belt;
* Most advanced production equipment;
*Exquisite craft with CEMA DIN standard;
*ISO9001:2008 and Safety of Approval for Mining Products;
* New high quality composite material roller shell and excellent after-sale service.
