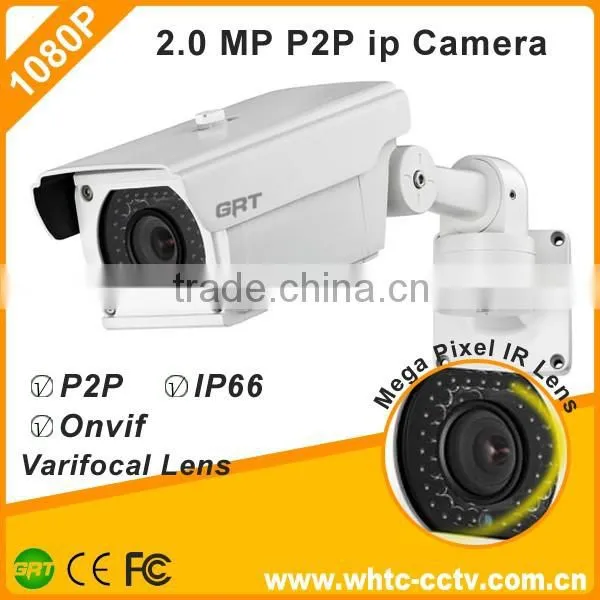

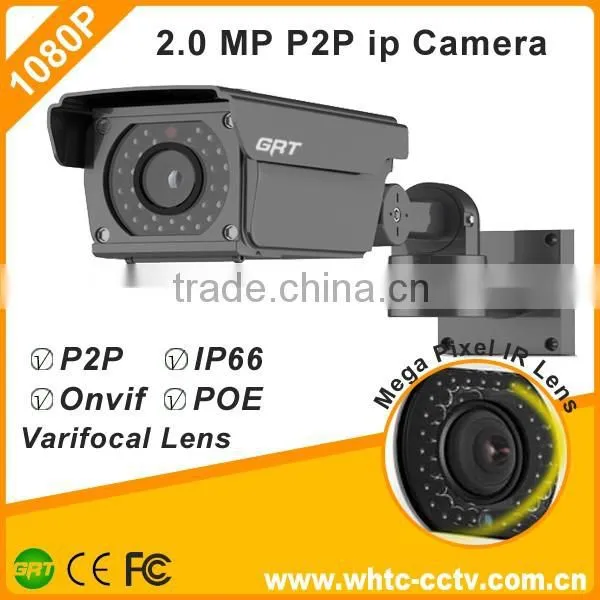

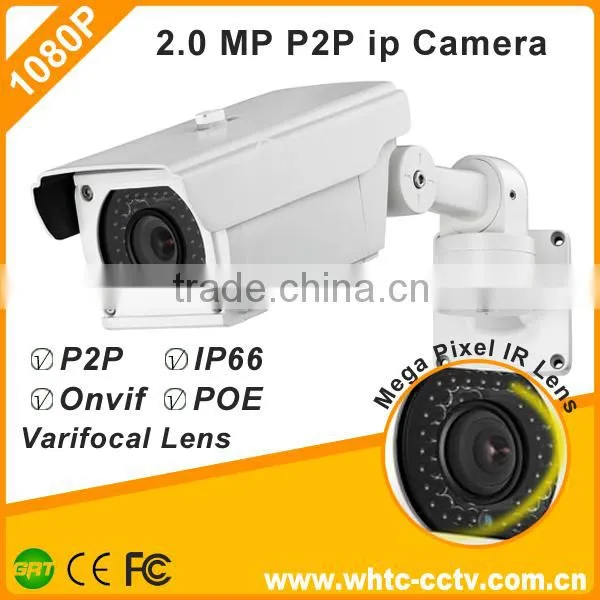

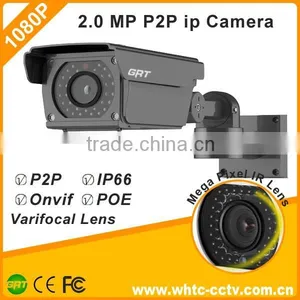

onvif p2p 2mp network cameras 1920*1080 outdoor ip camera poe

Model

GRT-HW20B4K6E   1920*1080 outdoor  ip camera POE

Hardware

Sensor

1/2.7"progressive scanning CMOS

Effective Pixels

1920(H)×1080(V)

Min.Illumination

0.6 LUX (0 LUX IR LED on)

Day/Night

Auto,dual IR-Cut filter

IR LED

42pcs IR Leds  IR Range10-40 m

Max S/N Ratio

>50dB

Electronic Shutter

Rolling Shutter

Interfaces

Optical lens

Interface

MT12 (Interchangeable Lens)

Lens

varifocal Lens , Manual Focus

Focal Length

varifocal, f2.8-12mm 3MP IR varifocal Lens (9-22mm lens optional)

H View Angle

45.0°~10.0°

Network Interface

Lan

10/100M BASE-TX,RJ-45 connector

Audio video encoding

Video Compression

H.264 Main Profile; MJPEG/JPEG Baseline

Resolution

Main Stream

HD 1080P (1920*1080)30fps

Sub Stream

CIF(352*288)/QVGA(320*240)/QCIF(176*144)  1-30fps

Video Bitrate

32Kbps~4Mbps,Supports CBR/VBR

Title OSD

Supports channel name, date, and video stream information overlay;
OSD location is adjustable

Privacy Mask

4 configurable regions

Image Orientation

image flip and mirror

Auto Image Control Functions

Auto  Exposure Control (AEC); Auto White Blance (AWB); Auto Band Filter (ABF)Auto Black Level Calibration (ABLC)

Image Controls

Color saturation, hue, gamma, sharpness (edge enhancement), lens correction,
defective pixel canceling, and noise canceling

Audio Compression

G.711

Two Way Audio

Support

NetWork

Data storage

Video and Image

Recording

Recording set up to record by motion trigger,alarm trigger, manual, or schedule

Alarm Output

FTP,E-mail, Explorer, Software

Network protocol

TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,NTP,SMTP,UPNP

Wireless protocols(-W)

802.11b/g/n, 150Mbps, Supports WEP,WPA,WPA2("-WiFi" model supports), POE(Optional)

ONVIF protocols

Support 2.0 version

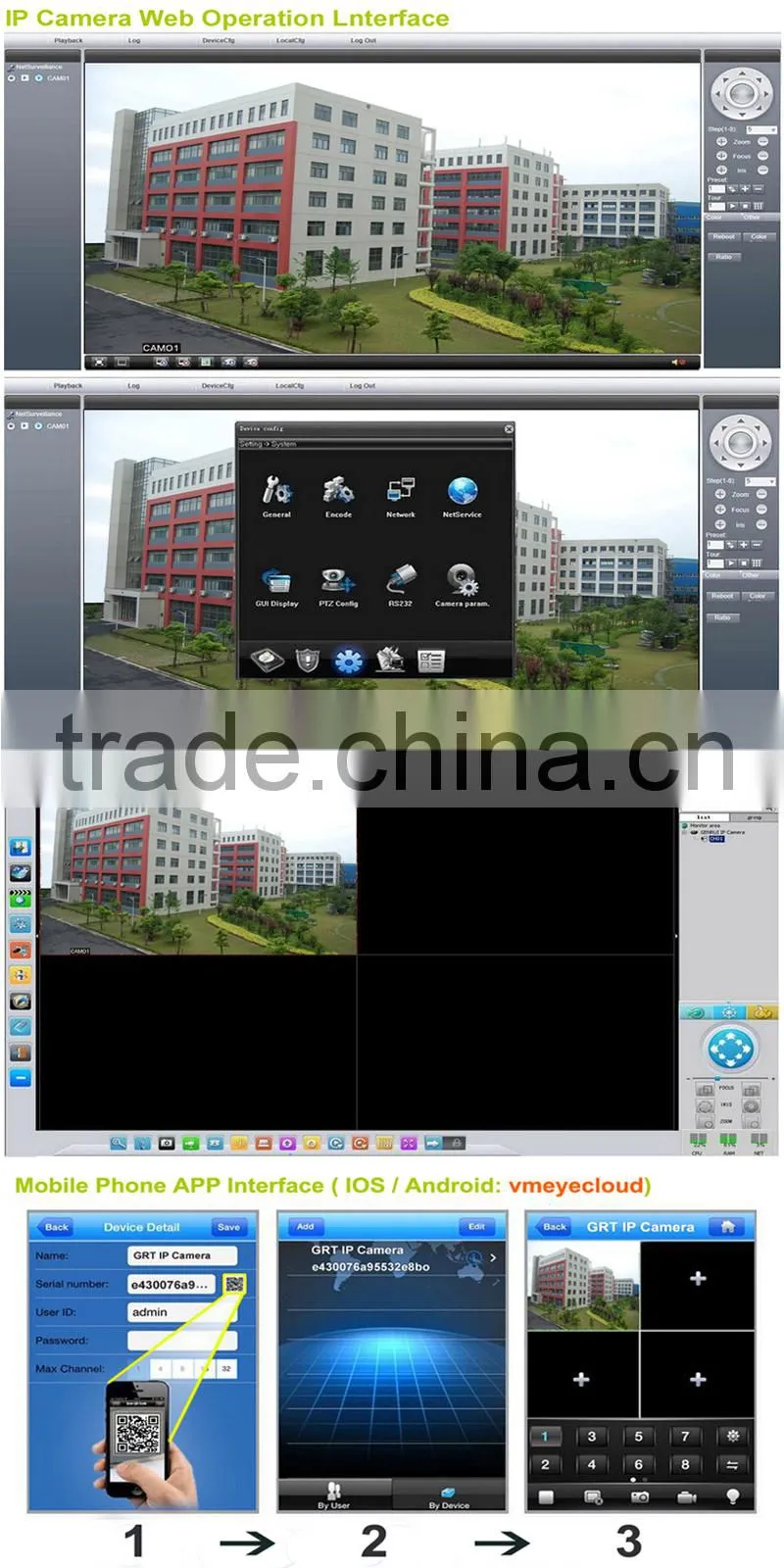

Remote View

PC

IE 6.0 or later, max 10 users

Mobile Phone

iPhone, Android, Blackberry Mobile

General Parameters

Environmental Casing

Waterproof (IP66  Rated), Outdoor Use

Installation

Brackets Included, Wall Mount

Operating Temperature

-20 °C ~ 50 °C (-4 °F ~ 122 °F) for DC 12V

Operating Humidity

0% -85% RH

Power

DC12V 2.0A

POE

POE Class 3 IEEE802.3af, optional for "-POE" Model

Power Consumption

9W(MAX)

Dimension

272(L) * 90W) * Φ86(H)mm

Weight

1.5KG (2.5lb)

Approvals

CE FCC RoHS
