Specifications
3.5 inch LCD multi-function CCTV tester proOptical Power Meter, Digital Multi-meter
Video,PTZ,UTP Cable,Audio tester

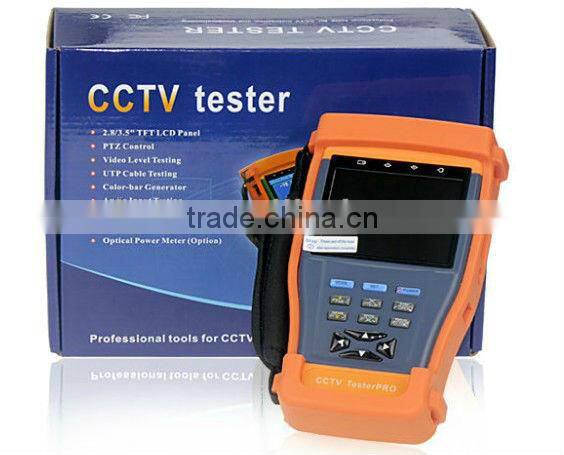

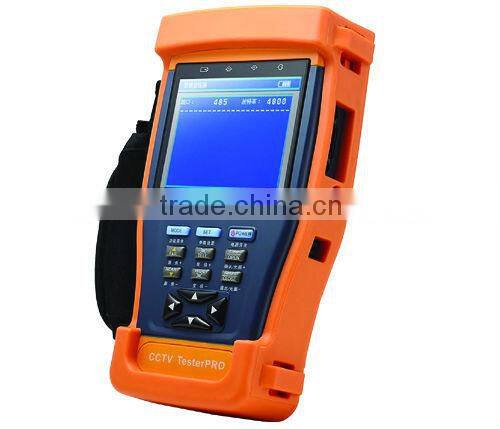

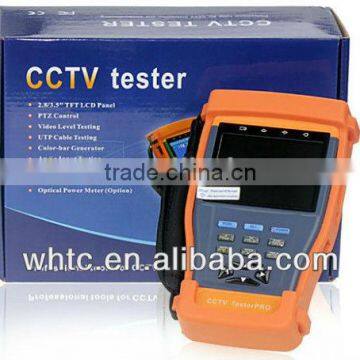

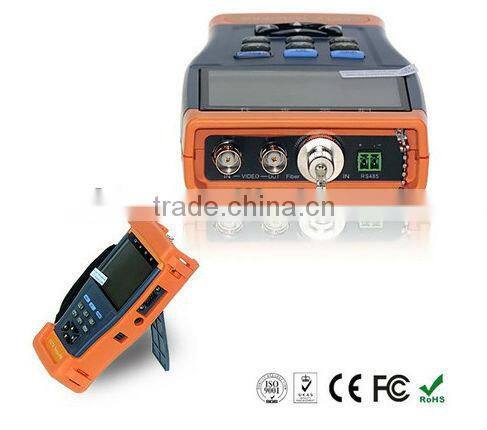

3.5 inch LCD multi-function CCTV tester pro with PTZ Camera Tester
CCTV Tester GRT-GC895 Application:
1.CCTV system installation and maintenance
2.Dome camera and All in one camera testing
3.The CCTV transmitting channel testing
4.PTZ controller
Eleven-in-One CCTV security tester Combine the video test, Optical Power Meter, Digital Multi-meter, PTZ controller, video signal level test, NTSC/PAL color pattern generator, UTP cable test, PTZ protocol analysis, PTZ address scan, DC12 1A output, Audio test to one body. CCTV tester pro
The CCTV testerPRO GRT-GC895 is developed for the On-Site installation and maintenance of video monitoring system. It can be used for displaying video, testing video level, controlling PTZ, scanning PTZ address, generating images, capturing data of RS485 and testing LAN cable etc. Its functions, easy operation, and portability makes it simple for the CCTV technician to install and maintain CCTV system, improving work efficiency and get the labor cost down. CCTV tester pro

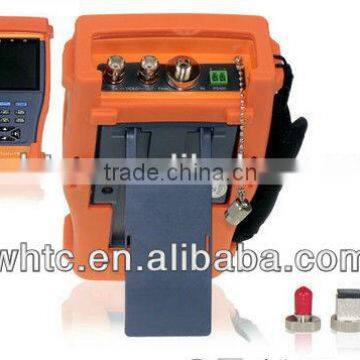

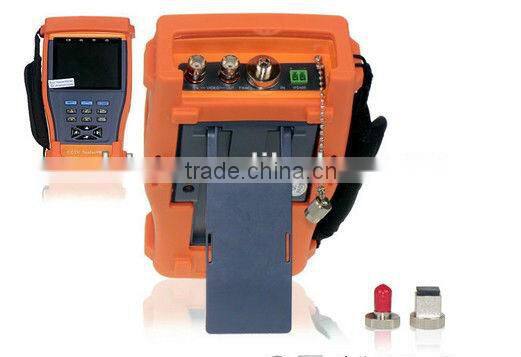

GRT-GC895 equipped with the Optical Power Meter. Use in testing the laser power of Video Fiber Optic Transmission equipment, and testing the Fiber Optic Patch Cord , etc.
GRT-GC895 is an ideal multifunction Instrument for CCTV security system, Fiber Optical communication, CATV and other Fiber Optic works.
CCTV tester pro Features:
* 3.5"TFT-LCD , 960(H) X 240(V) resolution
* Optical power meter, testing the laser power of Video Fiber Optic Transmission equipment, and testing the Fiber Optic Patch Cord , etc.
* Digital Multimeter, performs AD/DC Voltage, AC/DC Current, Resistor, Conductivity, Capacitor and Diode test.
* DC12V power output
* Audio input CCTV tester pro
* Adjustable brightness, contrast, color of LCD
* Video Level testing, video signals measured in IRE or mV
* Automatically identify and adapt the video mode of NTSC and PAL
* Colorbar Video signal generator, transmit/receive colorful images
* Support more than twenty kinds of PTZ controller protocols. For example, PELCO-P, PELCO-D, SAMSUNG etc.
* PPTZ address scanning, search up the ID of PTZ camera.
* Capture the PTZ protocol to assist the setting personnel to find out the control protocol and therefore easily target the problematic equipment.
* Support RS232 and RS485 interface, the rate 150-19200bps

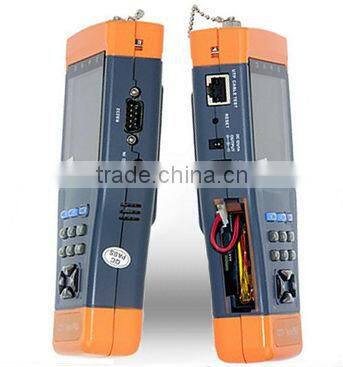

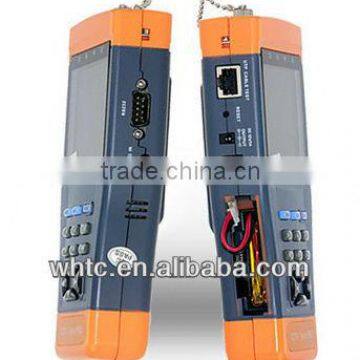

* Powerful in testing LAN cable, measuring the connecting status and displaying the sequence of connection
* PTZ(P/L & Zoom) Control: Control the status of P/L, zoom in/out the camera, adjust the aperture, foci and setting parameters, run and call the preset.
* Lithium Ion Polymer Batteries(3.7V DC3000mAh), more reliable, and work 15 hours
* Easy for use that the train is almost unnecessary
CCTV Tester Specification:
| MODEL | GRT-GC895 CCTV tester pro |
| Video Test | |
| Signal mode | NTSC/PAL (Auto Adjust) |
| Display | 3.5 inch TFT-LCD ,960 x 240 resolution |
| LCD adjust | Adjustable brightness, contrast, color of LCD |
| Video IN/OUT | 1 channel BNC Input & 1 channel Output |
| Video Output Mode | 1.0 Vp-p |
| Video Level test | |
| Level test | Video signals measured in IRE or mV |
| Power Output | |
| Power output | DC12V, 1A |
| Audio Test | |
| Audio input | 1 channel Audio input |
| PTZ controller | |
| Communication | RS232, RS422 simplex and RS485 |
| PTZ Protocol | Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.customized |
| Baud Rate | 150,300,600,1200,2400,4800,9600,19200bps |
| Video Signal Generation | |
| Color bar generation | Output 1 channel color bar video signal for testing monitor |
| UTP Cable Test | |
| UTP cable test | Test UTP cable connection state and display in the screen. Read the number of the test box. |
| PTZ data Capture and display | |
| PTZ Data Test | Capture and Analyze the PTZ data sent from controlling device |
| PTZ address scanning | |
| PTZ address scan | Search up the ID of PTZ camera |
| Optical Power Meter | |
| Optical Power Meter | testing the laser power of Video Fiber Optic Transmission equipment, and testing the Fiber Optic Patch Cord , etc. |
| Digital Multimeter | |
| Multi-Meter | Voltage, current, resistance and capacitance measuring, continuity testing, diode testing. |
| Power | |
| Power Adapter | DC5V, 2A |
| Battery | 1 pcs Lithium Ion Polymer Batteries, 3.7V DC3000mAh |
| Rechargeable | 4.5 hours recharging time, work for 12 hours |
| Low Consumption | Sleeping mode, display battery power state |
| Other Parameters | |
| Work Temperature | -10°C---+50°C |
| Work Humidity | 30%-90% |
| Dimension/Weight | 112mmx189mmx47mm / 500g |
More about our advantages and service:
CCTV tester pro
1. Prompt Reply within 24 hours
2. All goods examined before delivery
3. Stable products lead time
4. We can offer you good quality, competitive price, prompt delivery and low minimum orders.
Product lead time:
1.Sample time: 2-5 days
2.Production time: 7-25 days (Depends on the Quantity) after payment confirmed

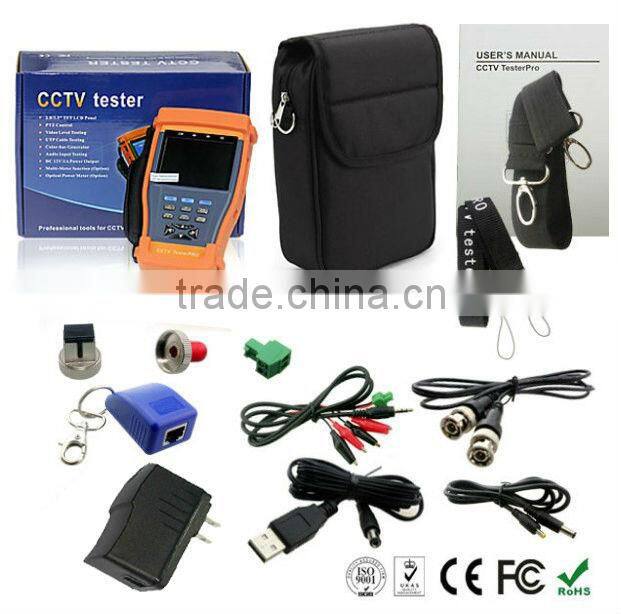

Packaging:
CCTV tester pro
Packing: inner box or standard industrial packaging into an outer export carton
Shipping terms:
Products are shipped according to your requirement. And we often use the Express Company as follows.
And we will find the most suitable shipping way with the lowest shipping cost for you.
