XCMG china roadheader tunnel boring machine XTR260
Item |
Unit |
Parameter |
|||
Weight(with the second conveyor) |
t |
85 |
|||
Dimension |
Length |
mm |
11677 |
||
Width |
Spading Device |
mm |
3000/3200/3600 |
||
Body |
mm |
2700 |
|||
Height |
Highest Point for Cutting Head |
mm |
2650 |
||
Machine Body |
mm |
2000 |
|||
Undercut Max |
mm |
225 |
|||
Ground Clearance |
mm |
260 |
|||
Orientation Cutting cross section |
Height |
mm |
5056 |
||
Width |
mm |
6029 |
|||
Area |
m2 |
30.5 |
|||
Height of gantry |
mm |
400 |
|||
Max and economic cutting hardness |
MPa |
≤110/90 |
|||
Walking Speed |
m/min |
6 |
|||
Total Installed Power |
kW |
447 |
|||
Max Cutting Power |
kW |
260/200 |
|||
Power of Pump Station Motor |
kW |
132 |
|||
Supply Voltage |
V |
AC1140/660/380 |
|||
Frequency of power supply |
Hz |
50 |
|||
Rotating Speed of Cutting Head |
r/min |
54/27 |
|||
Track Width |
mm |
2700 |
|||
Tension Type |
MPa |
Hydraulic Cylinder Tension |
|||
Spray Water Pressure |
MPa |
External≥2.5 |
|||
Internal≥3 | |||||

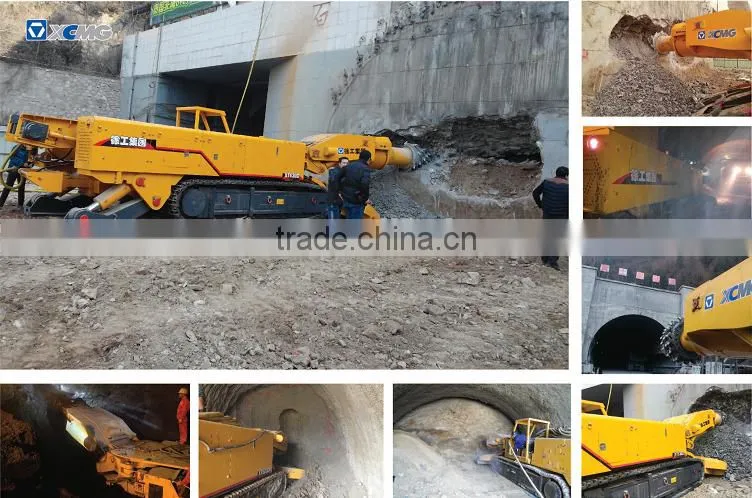

XTR260 Boom-type Tunneling Boring Machine is made up by cutting mechanism, plate assembly, the first conveyor, body assembly .walking mechanism, supporting , console , Hydraulic system , dust and spray system , the electrical system .lubrication system .guard plate , identification and the painting. The machine has advanced configuration and good stability, safe and reliable. The machine use of automatic centralized lubrication and adjustable suspension seat to highlight the humanization design.
Electrical control system
Electrical control system can control the start and stop of every electromotor. It provides control signal and has the function of low voltage creepage protection. It also has the function of oil level and temperature detection, electromotor protection, showing the running state and failure message of electromotor.
Hydraulic system
The system adopts bypass-valve technology to increase service life of components and decrease the failure. The problem that micro pollutants can't be can't wiped off by full flow oil suction filter and back filter is solved to ensure the clearness.
Spray system
Spray system can work with draught fan to improve the efficiency of dust suppression.
Cutting mechanism
Optimal design by simulation technology is used in cutting head which shape is cone with small diameter. The pick comes from Kennan matt USA. Reasonable arrangement brings powerful tunneling ability.
Shovel Board
3 loading width are optional to adapt different tunnel condition.
Safe unit
Many function are involved such as total stop button, cutting stop button, cutting start earty warning, leakage blocking, low voltage electrical leakage protection, motor temperature overload, over current and over voltage protection, motor 3-phase unbalance and phase failure protection, over and under voltage protection, gas blocking protection, oil level and temperature protection.
Ejection loading equipment
Two kinds of ejection loading forms of compact can choice by different construction demand to improve the effiency.
We have Overseas Customer Service Center and Parts Center all around the world, so we can provide you after-sale service in time always.
Authorized dealer of Xuzhou Xugong Foundation Construction Machinery Co., Ltd.(XCMG)
