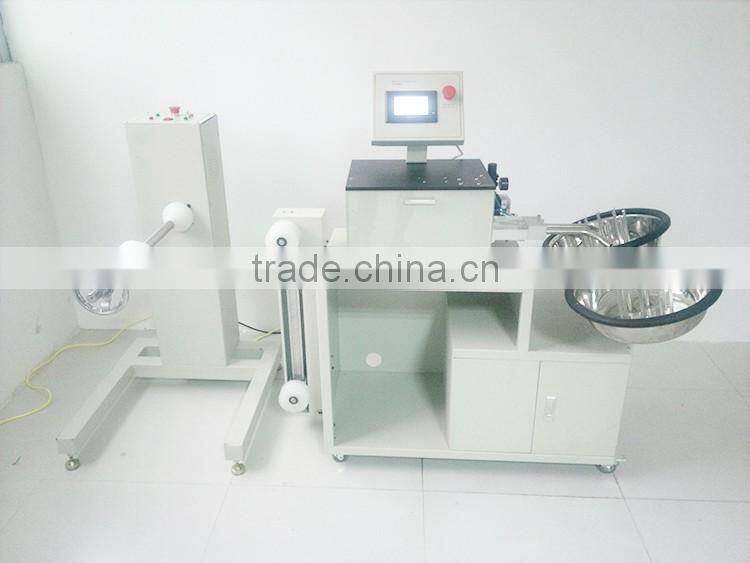

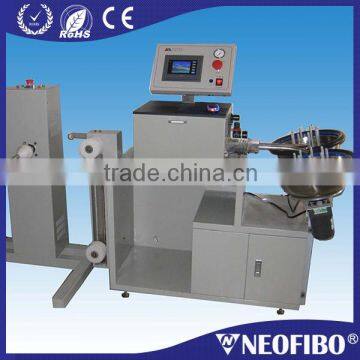

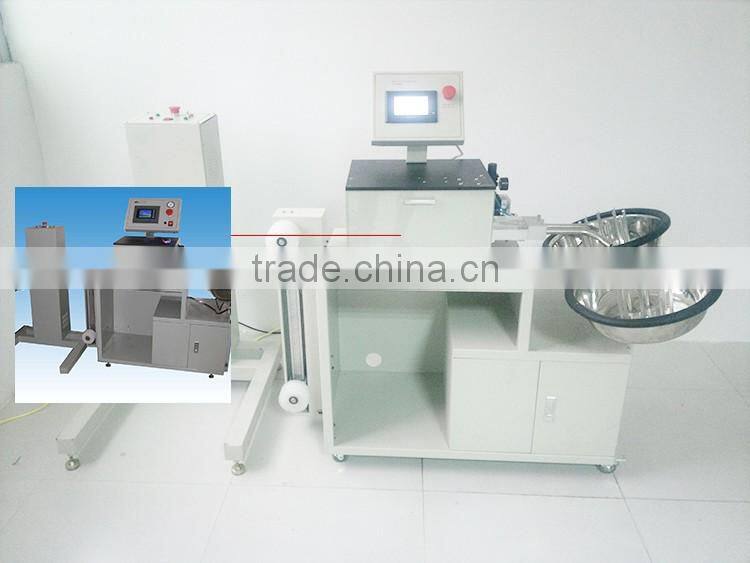

450 W 50/60Hz automatic fiber optic cable cutting machine
1.High Automation: auto running for full process from raw cable to final section
2.High Efficiency: less than 15 sections for typical 10m
3.Easy Operation: single button to start/stop/pause running
4.Efficient Cut: patented design for super reliable and complete trim
| 1.Machine size | 200*50*120(cn) |
| 2.Operation system | Chinese and English touch screen |
| 3.Cutting length | no more than 999 mtrs |
| 4.Feed speed | 1.6 m/s |
| 5.Length accuracy | no more than 3% |
| 6.Powrer consumption | 450 W, 220V AC, 50/60Hz |
| 7.Pressure aource | 0.4-0.6Mpa |
| 8.Cable carring capacity | no more than 36 kgs |
| 9.Net weight | 175kg |
| 10.Materials | cast iron and plastic |
Features
1.High length accuracy: meter wheel to count length, no length deviation from cable twist, slip during feeding
2.Stable performance: robust mechanical structre intellectual controller for super reliable movement
3.Efficient cut: patented design for super reliable and complete trim of super fine fiber
4.Correction function: convenient for the length of the staff college checked
5.Protecting fiber: maximum reduce the work process of stress on the optic cable
6.Easy operation: two separated instruments for length and quantity setup
7.Intellectual control: intellectual software to control and monitor operation
Applications
1.Professional equipment with measuring, cutting and winding fiber cable
2.Application for producing fiber optic patchcord manufacturing
3.Colophony material
What does NEOFIBO offer?
We offer full range of quality and comprehensive fiber optic products, including Patchcord Production Machine, polishing jigs, as Seikoh Giken, Senko, Domaille or customized ones; Polishing Consumables, Tools, Cleanings, Tool Kits, Testing Equipment, Splice Items. We commit to offer you Attractive Price, Excellent Quality and Fast Delivery!
What will be the delivery cost?
All price listed are FOB Shenzhen. Your nominated courier is acceptable. Otherwise, we will use FEDEX, DHL, UPS or any other forwarder per confirmation and charge accordingly.
How the goods will be delivered?
For normal stock items, they will be dispatched within 1-2 business days after payment confirmation. However, for items out of stock, estimated leadtime will be 3-10 working days.
How can I order the goods?
NEOIFBO are pleased to offer our valuable customers three ordering channels, ie., Online Ordering, Fax Order Form and Issuing Formal Purchasing Order by mail.
How is the warranty for NEOFIBO product?
All products are warranted by NEOFIBO (consumables, normal tear and wear excluded) for one year after date of purchase. Any part defected in material or workmanship and returned to NEOFIBO, as NEOFIBO designates, shipping costs prepaid, will be, as the exclusive remedy, repaired or replaced, at NEOFIBO's option.
