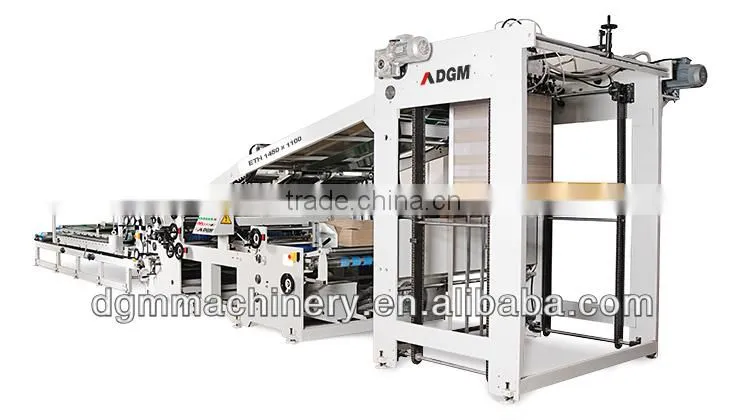

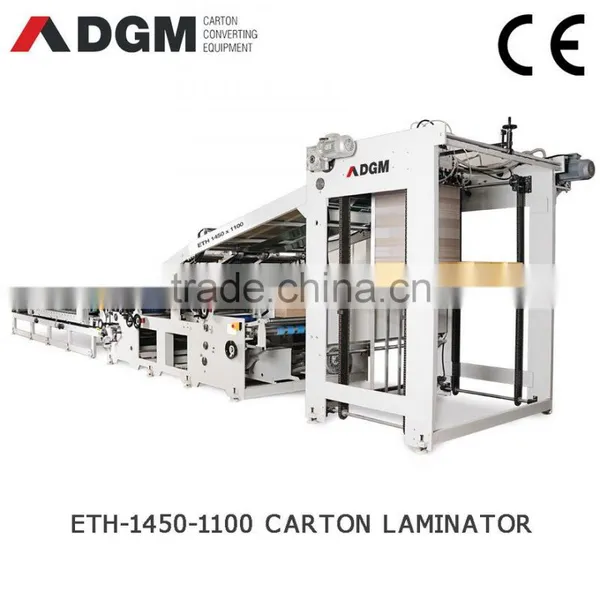

Automatic sheet to sheet laminate machine for paper ETH1450-1100

1). Sheet Feeder :

 • Total height 2600-2680mm.

 • Streaming feeding suction head.

 • Feeder bridge with double sheet detector.

 • 8 sets of lifting suckers.

 • 4 sets of joggers and spring type side guide to control and transfer the substrate.

 • Side guide metering adjustment for flute width setting.

2).Flute feeder

• Friction feeder system by perforated belts and suction(Power 2.2 kw).

• Brake system by electromagnetic clutch.

• Registration System with micrometer adjustment for excellent register when laminating cardboard with cardboard.

3).Lamination Unit

 • Main motor power 5.5kw.

 • Coater consists of 2 rollers,the glue comes from the top unit reach the gap between the application roller and metering roller.

 • The glue flow that is pumped out is controlled by a sensor.

 • Washing roller,it is used to remove unwanted glue stains from pressing cylinder,avoiding the flute to stain.

 • Laminating precision +/-1.5m.

4).Pressure conveyor unit

• Total length 5,100-6000 mm.

• Independent motorized (total power 2.2kw)

• Conveyor system with uniform and balanced pressure to ensure optimum quality in any type of work to be processed.

• Upper conveyor moves back and forward.

• Founded in 1985 under the previous name:

Taiwan Bi Cheng machinery, first Technofold ES series folder gluer into production.

• 1986-1989 started exporting to Southeast Asia.

• In 1990 sold the first folder gluer in China, opened domestic market.

• 1993 Laminating machine ETH series into production.

• 1998 Automatic die-cutter Technocut series into production.

• 2004 New 13,000 sqm.facilities in Huizhou,Guangdong province.

• Well communicated with important cities like Hong Kong, Shenzhen and Guangzhou

• 2007 CE certifications for all range of products.

• 2008 attended Drupa exhibition for the first time.

• 2012 Smartfold series intelligent folder gluer into production.
