Specifications
sieve shaker machine1.Lifetime long
2.Reasonable price
3.Manufacture
4.Factory
Professional manufacture super performance sand vibrating sieve machine
Our main purpose :
We Provide complete service equipment installation, testing ,maintenance and staff Training,we can provide you the technical services for life and provide the best service to you . Help our clients gain profit in quicklly. We will provide the most environmentfriendly and safe products with high quality at most favorable price for the customer with perfect after service.
Introduction of sieve shaker machine :
This screening machine is mainly used in: coal, compound fertilizer, organic fertilizer, metallurgy, mining and other raw materials or finished products screening equipment.It is mainly used for finished products and the returns of particle separation, also can realize product classification, make the finished product evenly classification, its using combined sieve net, easy maintenance and replacement, this machine has simple structure, convenient operation, stable running, is the ideal equipment of powder particles grading.

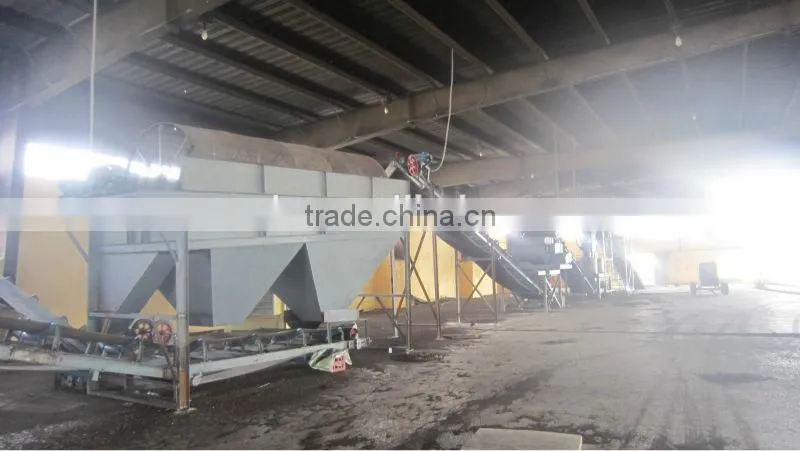

It's main equipment in compost fertilizer production, used for separating the returned materials and end product, also realize the classification of the end products, uniformize the end products. This drum screening machine adopts the integrated screen which is easy for repair and replacement. This machine is easy to operate and works steadily .

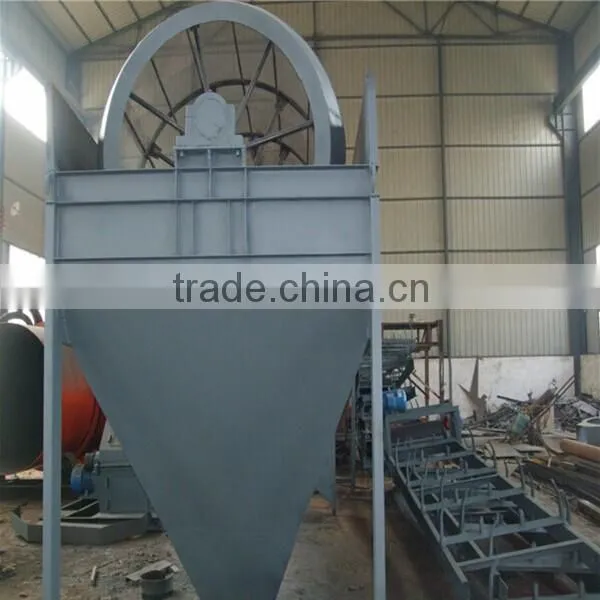

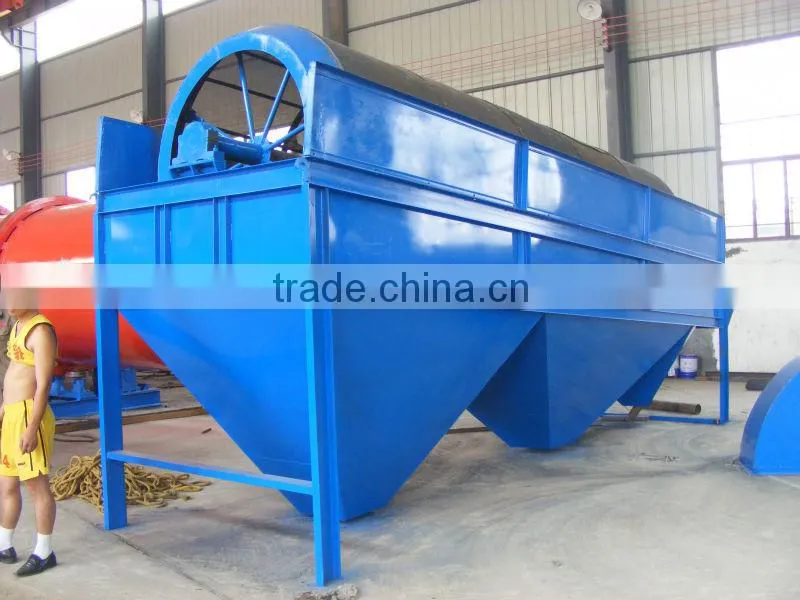

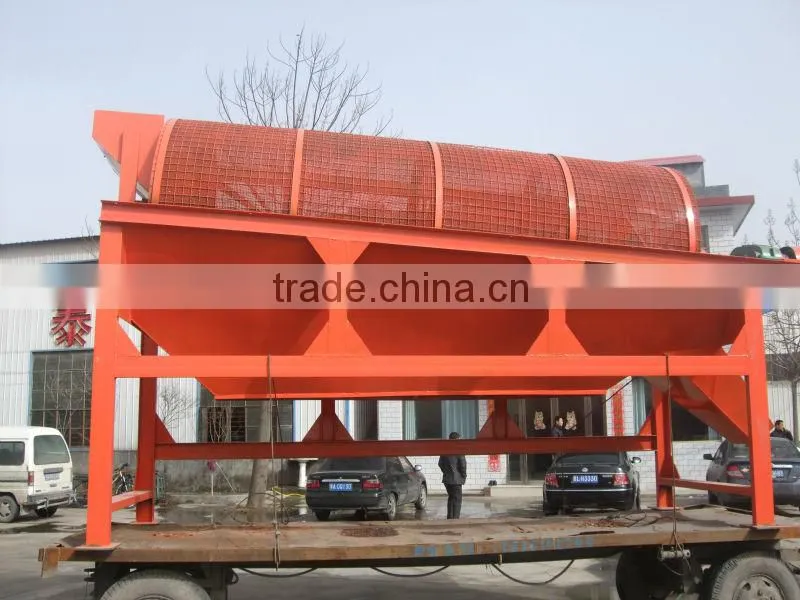

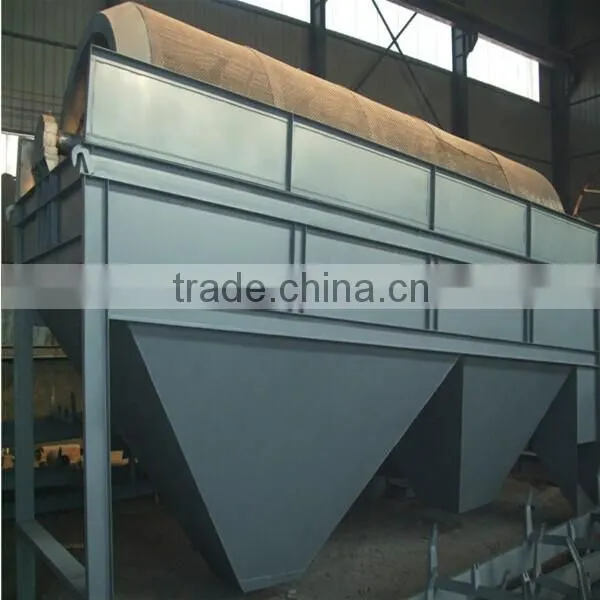

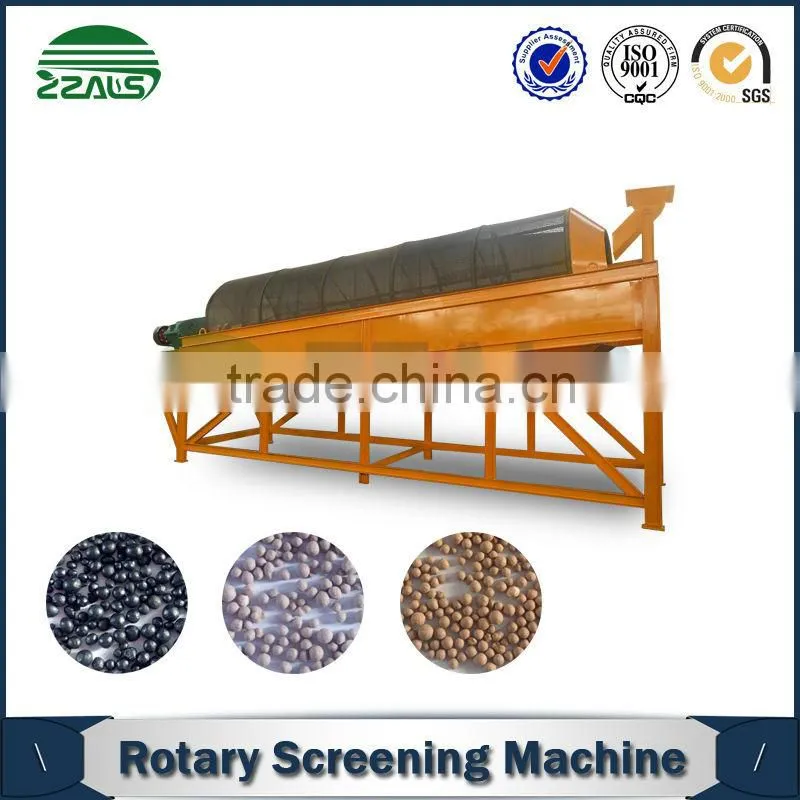

Drum screening machine mainly is composed of motor, reduction gear, drum, body and other components. The motor through reduction, via drum to drive the screening machine rolling round the roller, after material enter into screening machine, with the angle and rolling of machine, the qualifity product will out from hole of screening, and unqualified will out from the bottom of screening machine.
1) It is design for screening cfeed, to seperate the product and returns.
2) It can classify the product grade.
3) It adopts high quality manganese steel.
4) Screen aperture can be customized.
5) The pellet size is uniform.
6) Price is competitive because we have our own factory.
Main features of sieve shaker machine :
1)♦Configured for classification, screening and grading
2)♦Simple structure, higher reliability, low investment cost
3)♦Large processing capacities
4)♦Smooth running, low noise
5)♦Easy maintenance
6)♦Unique screen design, higher capacities, longer screen life and less blocking of mesh screen

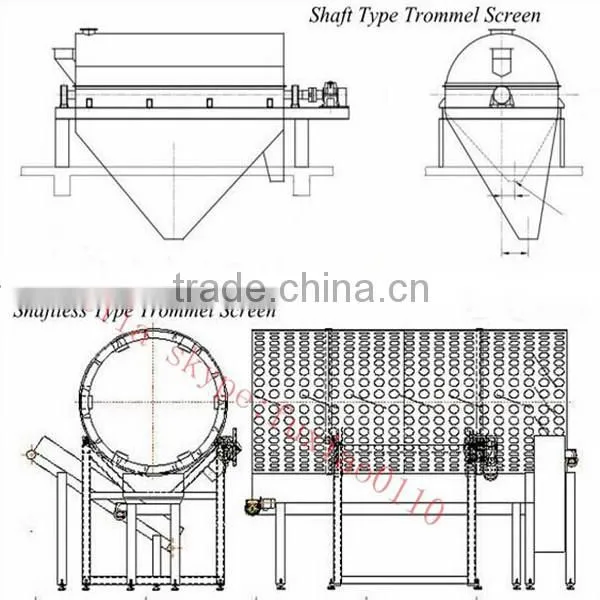

Main structure of sieve shaker machine :
The machine can be divided into three parts:
1)--Chassis parts: the machine frame adopts optimal carbon steel, channel steel welded together, and passed the strict product quality certification and the specific technical requirements, to achieve the purpose of this machine.

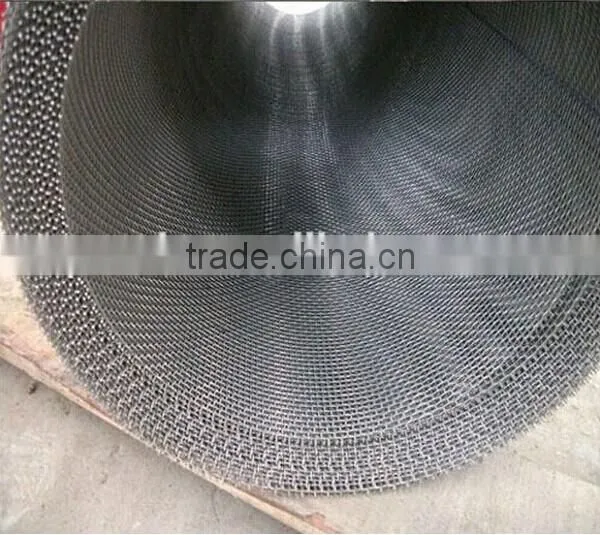

2)--Rotating sieve part: this part adopts modular screen mesh, its by the driving wheel through coupling, spread to the main shaft, the screen installed on the welding on the main shaft of the roll cage.Material from the feed end enter, through continuous rotary roll cage, grading, uniform discharging mouth outflow from below, the effective separation will be finished and return materials, reducing the labor intensity.
3)--Rotating the connecting parts: motor drive belt pulley, triangle, speed reducer drive, make the spindle rotation work, including transmission reducer and the working parts of main shaft, and driven by gritting column pin type coupling phase transfer, convenient assembly and maintenance.
Working principle of sieve shaker machine :
Roller sand screen utilize Mechanical method, compose a screen surface by sieve bar form into pore. Classify by its weight 3 joint shaft inside trommel is higher than surface, to push up big size material so as to increase classify rate. And the inclination will help it advance, enter crusher finally. Size smaller pore will down through the pore and acquire the final product.
Main data of sieve shaker machine :
Type |
Roller |
Capacity |
Powdery range |
Pellet range |
Motor |
Type of reducer |
|||||
Dia |
Length |
Angle |
Revolutions |
Type |
Power |
Revolutions |
|||||
mm |
mm |
( .) |
r/min |
t/h |
mm |
mm |
Kw |
r/min |
|||
SF0830 |
800 |
3500 |
2-5 |
12 |
1-1.5 |
0.1-0.2 |
0.3-50 |
100L1-4 |
2.2 |
1440 |
ZQ250 |
SF1030 |
1000 |
3500 |
12 |
2-3 |
100L1-4 |
2.2 |
1440 |
ZQ250 |
|||
SF1230 |
1200 |
3500 |
15 |
5-6 |
100L1-4 |
2.2 |
1460 |
ZQ250 |
|||
SF1540 |
1500 |
4500 |
15 |
8-10 |
100L2-4 |
3 |
1460 |
ZQ350 |
|||
SF1845 |
1800 |
5000 |
15.5 |
10-15 |
132S-4 |
5.5 |
1460 |
ZQ400 |
|||
SF2045 |
2000 |
5000 |
15.5 |
15-20 |
132M-4 |
7.5 |
1460 |
ZQ400 |
|||
Why are you choose us as your partner :
1 Provide the guarantee
2 We can provide the best packing as our clients requirement .
3 The quality have the best ensure , and the percent pass rate is 100%
4 There are kinds of transportations : sea transportation , air transportation , expressage and so on.
5 Factory production, the factory price, the spot goods supply.
