Help Center12864 COG LCD for Handhold Equipment
Related Products
-
Exchanger Monochrome 128x64 LCDUS$ 3 - 7MOQ: 500 Pieces -
Meter and Instrument Pixel Cog LCDUS$ 3 - 7MOQ: 500 Pieces
-
Graphic Touch Screen Liquid Crystal DisplayUS$ 1.5 - 18MOQ: 10 Pieces
-
COG FSTN Graphic Liquid Crystal Display ModuleUS$ 1.5 - 18MOQ: 10 Pieces
-
STN Graphic Liquid Crystal Display 240x64US$ 1.5 - 18MOQ: 10 Pieces

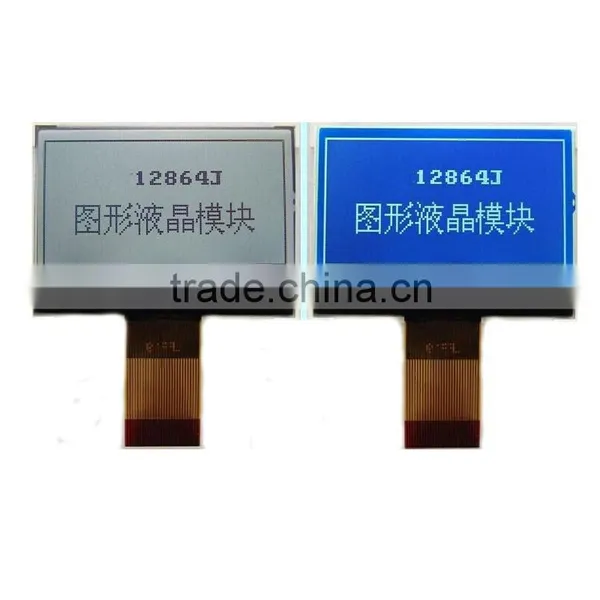

Product Description
| LCD Type | STN, |
| POLARIZER | TRANSFLECTIVE/positive/negative/ |
| Dots | 128x64 |
| Module size | 51x38x8.5mm |
| Viewing Area | 46x26mm |
| Supply Voltage | 14.5V |
| Driver | ST7565P |
| BACKLIGHT | YELLOW-GREEN/WHITE |
| View Angle | 6:00 |
| connecter | FPC |
| operating temperature | -20-70C |
| Storage temperature | -30-80C |
| Dots pitch | 0.345X0.36mm |

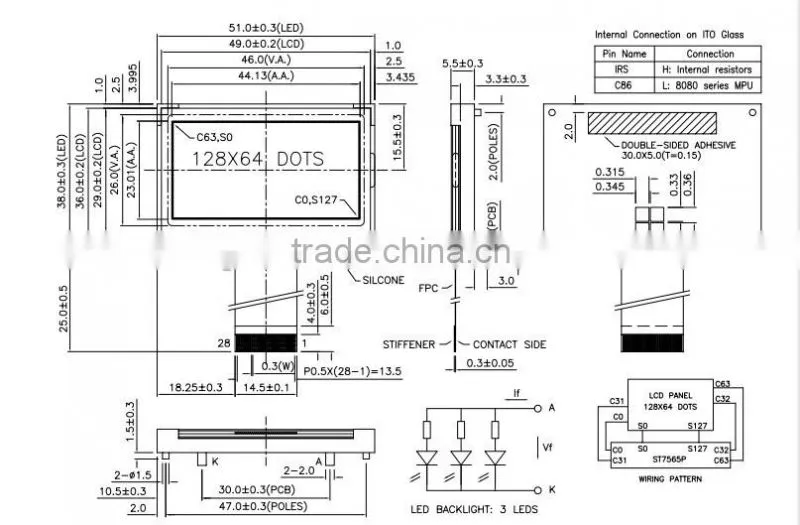

LCD Drawing
Interface
| PIN | 1 | 2 | 3 | 4 | 5 | 6 | 7-12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23-27 | 28 |
| Symbol | NC | /CS1 | /RES | A0 | /WR | /RD | D0-D5 | D6 | D7 | VDD | VSS | VOUT | CAP3N | CAP1N | CAP1P | CAP2P | CAP2N | V4-V0 | P/S |
Our services
We are professional LCD&LCM manufacture and have 6 years experience on this .Our factory has strong research and design ability. The LCD and LCD module produced capacity included as below:
| LCD Thickness | 1.7mm, 2.0mm,2.8mm |
| LCD Display Type | COB ,COG ,TAB |
| Polarizer | Reflective , Transmissive,Transflective, Transparent |
| Range of operating temperature | -40C-90C |
| Connector PIN | Metal Pin, Heat seal, FPC ,Zebra, FFC |
| LCD color | Grey ,YELLOW-Green, Green, Black |
| Driving | 1/1 duty to 1/240 duty |
