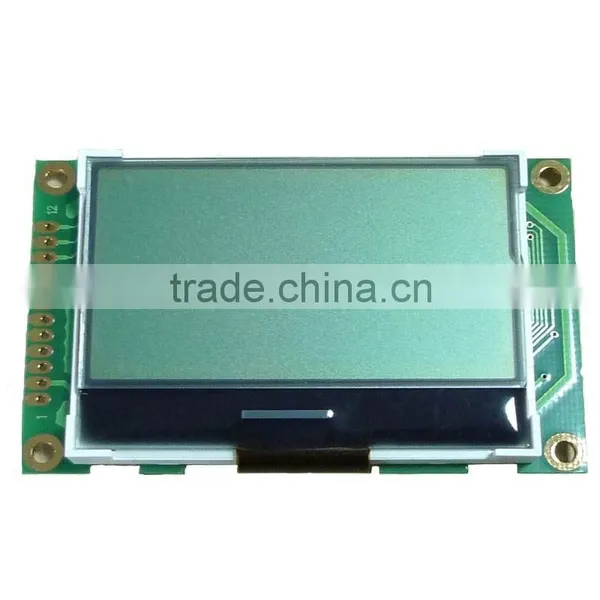

Help CenterExchanger Monochrome 128x64 LCD
Related Products
-
Meter and Instrument Pixel Cog LCDUS$ 3 - 7MOQ: 500 Pieces -
Graphic Touch Screen Liquid Crystal DisplayUS$ 1.5 - 18MOQ: 10 Pieces
-
COG FSTN Graphic Liquid Crystal Display ModuleUS$ 1.5 - 18MOQ: 10 Pieces
-
STN Graphic Liquid Crystal Display 240x64US$ 1.5 - 18MOQ: 10 Pieces
-
16*2 Character COG Lcd Display ModuleUS$ 1.5 - 18MOQ: 10 Pieces
Product Description
| LCD Type | FSTN, |
| POLARIZER | TRANSFLECTIVE/positive/yellow-green |
| Dots | 128x64 |
| Module size | 63x40x10MM |
| Viewing Area | 46x26mm |
| Supply Voltage | 14.5V |
| Driver | ST7565P |
| BACKLIGHT | yellow-green |
| View Angle | 6:00 |
| connecter | FPC |
| operating temperature | -20-70C |
| Storage temperature | -30-80C |
| Dots pitch | 0.345X0.36mm |

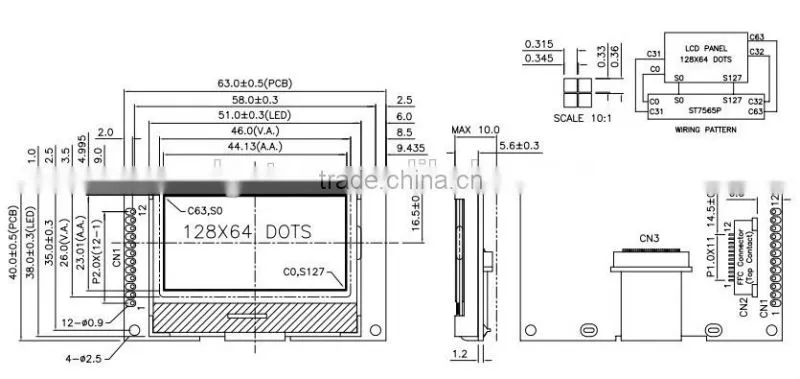

LCD Drawing
Interface
| PIN | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |||||||
| Symbol | VSS | VDD | /CS1 | A0 | SCL | SL | /RES | LEDA | NC | NC | NC | NC |
Our services
We are professional LCD&LCM manufacture and have 6 years experience on this .Our factory has strong research and design ability. The LCD and LCD module produced capacity included as below:
| LCD Thickness | 1.7mm, 2.0mm,2.8mm |
| LCD Display Type | COB ,COG ,TAB |
| Polarizer | Reflective , Transmissive,Transflective, Transparent |
| Range of operating temperature | -40C-90C |
| Connector PIN | Metal Pin, Heat seal, FPC ,Zebra, FFC |
| LCD color | Grey ,YELLOW-Green, Green, Black |
| Driving | 1/1 duty to 1/240 duty |
Packaging & Shipping
Company Information
FAQ
1.Q: Are you manufactory or trade company?
A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than 6 years in Dongguan ! Our advanced full set equipments make sure good quality and competitive price!
2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect
3.Q: How long can I expect to get the sample?
A:Contour drawing: 2-3 days Sample time: 10-15 business days
4.Q:Will you offer free sample?
A: Yes, we usually provide 5-8pcs free samples, you just need to pay the tooling charge.
6.Q: Can you design the lcd in acccordance with our demand?
A:Sure.We will give you the best tooling charge.
7.Q:How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
8.Q:How long of mass production ?
A: 25-30 business days. It depends on different order quantities and part number.
