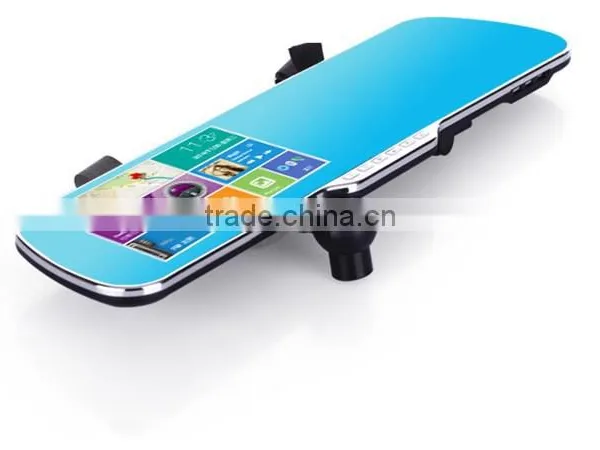

wifi wireless Android Car DVR Video Recorder Monitor With Anti-glare Mirror Touch Screen WIFI GPS Navigation Rear bakcup Camera
Inquiry skype/Email: sales03(at)
*WIFI transmission, good data security
*Wire free, easily install it by yourself
*One second startup, no delay, provide better protection for your driving life
*No interference, never be bothered by other wireless equipment.
*Many kinds of professional qualitied camera lens for options.
Model 3541:
Model 3450
Model 3407R
Model 3571
| WIFI Video Transceiver | Protocal |
Access to the data Link Layer of standard WIFI and comply with 2.4G Adaptive -FHSS |
| Video format | MJEPG | |
| Data Rate | Up to 150MHz | |
| TX Power | 14~18dBm | |
| RX sensitivity | -68dBm@MSC7 | |
| Output formal | CVBS | |
| Startup time | 1s | |
| Delivery Time | ≤100ms | |
| TV system | PAL/NTSC | |
| Camera type | CMOS | |
| Transfer Distance | 100m ( open space ) | |
| Input voltage | DC12V | |
| Output voltage | DC12V,5V,3.3V | |
| Output current | max 2A (5V) | |
|
5.0 inch TFT LCD touch screen+ android 4.1 + Bluetooth+ GPS navigation +car dvr |
Operating system | A10(Allwinner)Android 4.1 system |
| CPU | A10 ARM Cortex™-A8 | |
| DDR | 512MB DDRⅢ | |
| NAND Flash | 4GB(8GB 16GB 32GB optional) | |
| Display screen | 5.0 inch hd 800W * RGB * 480H | |
| Touch screen | Full mirror capacitive screen | |
| I/O | 1* USB 2.0,1*AV IN, 1*Headphone jack,1*TF card | |
| Rearview Camera | Waking up reversing visual automatically when reversing | |
| Headset function | Support | |
| WIFI | Support 802.11b/g/n Wireless protocol, | |
| Bluetooth | Bluetooth speakerphone, phone book upload | |
| GPS navigation | Built-in | |
|
Support multi-map (Kay Rucker, iGo, High German, Google, Baidu, etc.) | ||
| FM transmit | Support multi-frequency FM wireless transmitter | |
| Take photos | Support | |
| SENSOR |
Samsung S5K4EC 500W pixel/samsung S5K4AW 130W pixel/NT99141 100w pixel |
|
| Front-facing camera | 12 Mega Pixels 140°Wide-angle | |
|
Max support 1920*1080( interpolate 1080P 25f/s)HD1280x720(720p 30f/s) | ||
| Rear camera | 5 Mega Pixels 120°Wide-angle | |
| Camera rotation | 360°Rotation | |
| MP5 | Support HD MP5 Display | |
| Video format | MP4,RMVB,MPEG,AVI,WMV,3GP,MKV … | |
| Audio format | MP3,WAV,WMA,APE,FLAC … | |
| Picture format | JPEG,GIF,BMP,PNG… | |
| Recording format | Video:H.264;Audio:AAC | |
| Application | Any App like Facebook,skype,Wechat | |
| Speaker | Built-in 2W speaker | |
| MIC | Built-in | |
| Language support | up to 30 languages (English, Spanish…) | |
| G-SENSOR | Built-in | |
| Motion Detection | MP4 | |
| Delay shutdown | Support | |
| Loop recording | Seamless loop recording, no leakage seconds | |
| Record function | Support | |
| Night vision fill night | Support | |
| PIP | Support | |
| Battery type | 800mAh Li-Po battery | |
| Operating Voltage | DC 5V | |
| Operation current | 500mA | |
| Consumption | 3W |
1) Efficient after-sales service, provide solutions for your problems within 24 hours
2) OEM&ODM: we can help you to produce all customized products;
3) Protection of your design and all your private information;
4) Quality stability, we can provide certificates of products such as CE, FCC;
5) Convenient payment methods: Paypal, bank-in, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 3-7 working days.
Shenzhen Windrunner Technology Co. Ltd. is a high-tech enterprise specializing in automotive electronics product development, production and export.
"Fashion, cutting-edge, practical and convenient" is the enterprise development objective.
We have developed a series of “shocked the industry” and impressed the times high-tech products such as car wireless rearview system, wireless GPS navigator, wireless vehicle mounted camera, wireless vehicle monitor etc. Depending on our powerful technical team, we can provide customized designs, a full range of ODM and OEM services and technical support to customers.
1.What about the warranty?
Answer: The warranty period is 12 months.
2.How to use the car rearview mirror?
Answer: Our product is new type, WIFI transmission, wire free, very easy to install and operate by yourself .
Please follow the instruction of the model, there are installation process, the usual maintenance guidelines etc.
3.What's the payment and the delivery time?
Answer: For payment terms, Mastercard, TT, Paypal,Western Union,Escrow, LC are acceptable;
For the delivery time, it bases on the quantity and the order is OEM/ODM or not, normally, we are providing a lead time of 3-7 business days, DHL, Fedex, UPS, TNT international express would insure the products arrived in your address as soon as possible.
