Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Machinery Parts > Api 8C Oil/gas Drill Elevator Link

Api 8C Oil/gas Drill Elevator Link

Name: Api 8C Oil/gas Drill Elevator Link
Brand: SENWELL
SKU: 123858693
Availability: InStock

Api 8C Oil/gas Drill Elevator Link thumbnail-1

Api 8C Oil/gas Drill Elevator Link thumbnail-2

Api 8C Oil/gas Drill Elevator Link thumbnail-3

Api 8C Oil/gas Drill Elevator Link thumbnail-4

Api 8C Oil/gas Drill Elevator Link thumbnail-5

Api 8C Oil/gas Drill Elevator Link thumbnail-6

Api 8C Oil/gas Drill Elevator Link photo-1

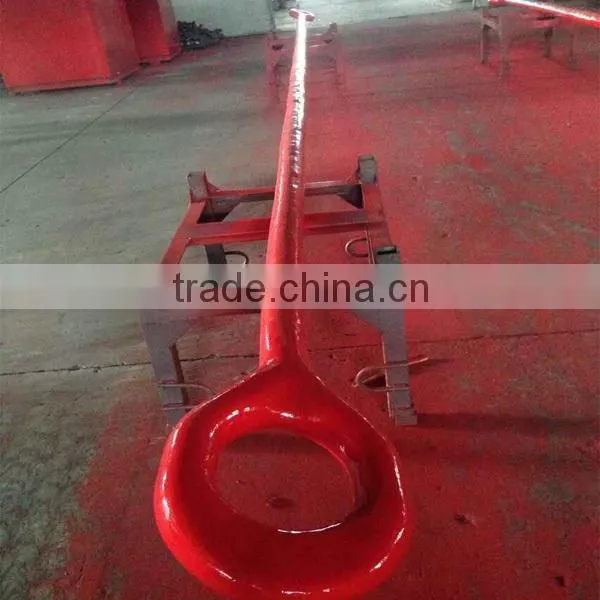

Api 8C Oil/gas Drill Elevator Link photo-2

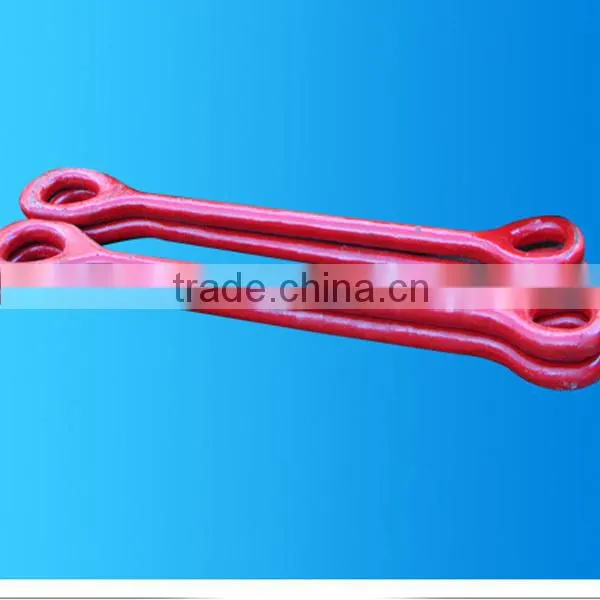

Api 8C Oil/gas Drill Elevator Link photo-3

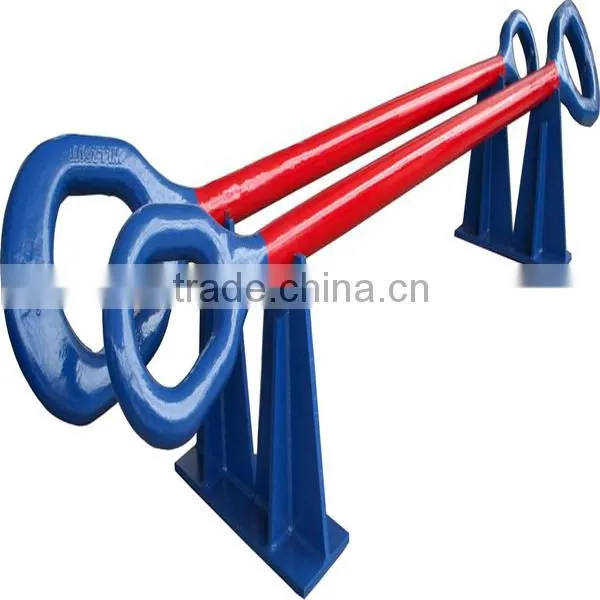

Api 8C Oil/gas Drill Elevator Link photo-4

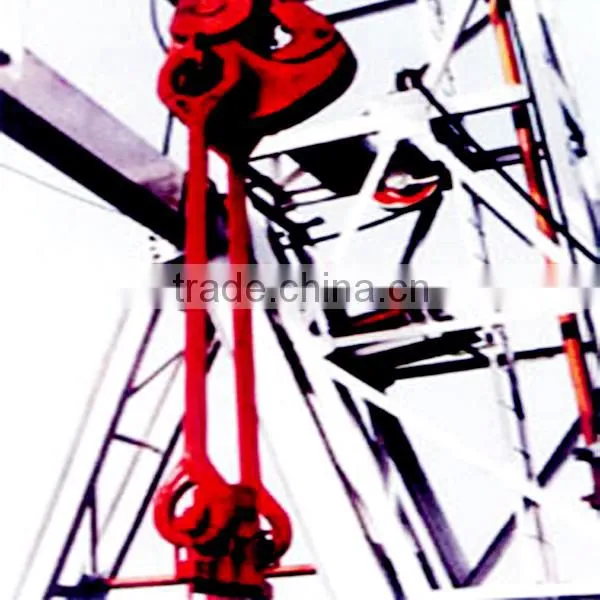

Api 8C Oil/gas Drill Elevator Link photo-5

Api 8C Oil/gas Drill Elevator Link photo-6

US$ 1,000 - 20,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

SENWELL

Model Number:

API

Contact Supplier Request Quote Chat Now

Shaanxi Senwell Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Main Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name SENWELL

Model Number API

Type Other, Elevator Link

Machine Type Other, Wellhead Tools

Certification API

Material High Manganese Steel

Processing Type Forging

Use Well Drilling

Elevator Link

Elevators links are suitable for hanging pipes in the operation of well drilling or repairing. According to the structures, they have two forms: Type DH & Type SH

Technical specification and parameters for DH type single arm elevator link
Type	Connecting sizes between elevator link lower ears and elevators(mm)					Connecting sizes between elevator link upper ears and drilling hooks(mm)					Length	Rated Cap. per Set
Type	r1≤	R1≥	l1≥	l2≥	l3≥	r≤	R2≥	l4≤	l5≥	l6≥	(mm)	KN(t)
DH360	20	51	20	100	150	22	38	60	120	180	1200	360 (40)
DH585	22	51	20	100	150	22	64	70	120	180	1100	585 (65)
DH900	22	51	20	100	150	29	64	80	140	190	1500	900 (100)
DH1350	24	51	25	100	150	29	64	100	140	210	1800	1350 (150)
DH2250	31	70	30	140	200	35	102	140	200	250	2700	2250 (250)
DH3150	37	70	35	140	200	35	102	140	200	250	3300	3150 (350)
DH4500	48	83	50	170	250	48	121	160	240	300	3600	4500 (500)
DH6750	57	127	50	190	318	63	127	190	262	305	3660	6750 (750)
Length Dimensions of recommendation. It can be changed if necessary.
