API Float Valve Forged Stabilizer/ Oil Well Drilling Float Valve Forging Stabilizer/ AISI 4145H Mod Float Valve Stabilizer
US$ 1,500 - 5,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
oil well drilling
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
API Standard AISI 4145H Mod Forged StabilizerUS$ 1 - 3,000MOQ: 1 Piece -
API Non-rotating Drill Stabilizer/ Drilling String Forging Stabilizer/ AISI 4145H Mod Non-rotating Forged StabilizerUS$ 1,500 - 5,000MOQ: 1 Piece
-
AISI 4145H Mod Non-rotating Forged Stabilizer/ API Non-rotating Drill Forging Stabilizer/ Oil Well Non-rotating StabilizerUS$ 1,500 - 5,000MOQ: 1 Piece
-
Oilfield Spherical Forging Stabilizer / API Spherical Forging Stabilizer/ China High Quality Spherical StabilizerUS$ 1,500 - 5,000MOQ: 1 Piece
-
Oilfield Drilling Spherical Forged Stabilizer / API Spherical Forged Stabilizer/ China High Quality Spherical StabilizerUS$ 1,500 - 5,000MOQ: 1 Piece
Condition
New
Application
oil well drilling
Place of Origin
China
Brand Name
sw
Model Number
sw016
Voltage
380V
Power(W)
11KW
Dimension(L*W*H)
Model
Weight
varies according to size
Features
Forging
Certification
API
Warranty
1 Year
After-sales Service Provided
No overseas service provided
Product Description
Standard: API
Material: AISI 4145H, AISI 4145H Mod, AISI 4340, AISI 4140-4142 and Non-magnetic , etc
Feature:high strength, large flowing area, high temperature resistant
Specifications
1).used in near bit type stabilizer
2).high strength, large flowing area
3).high temperature resistant
4)API Standard

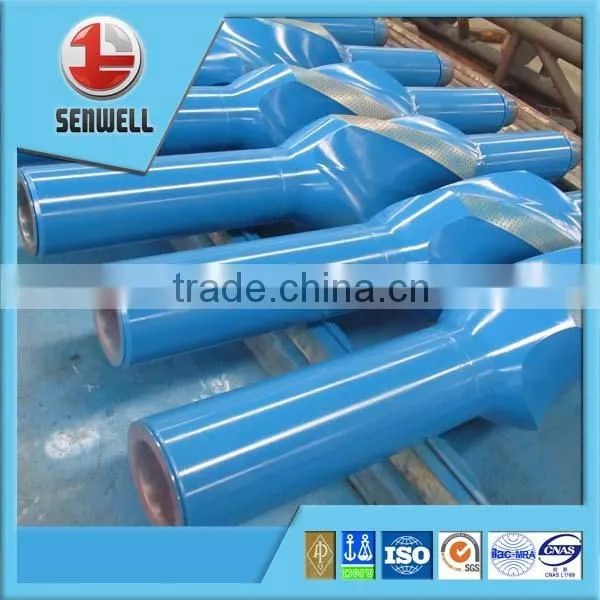

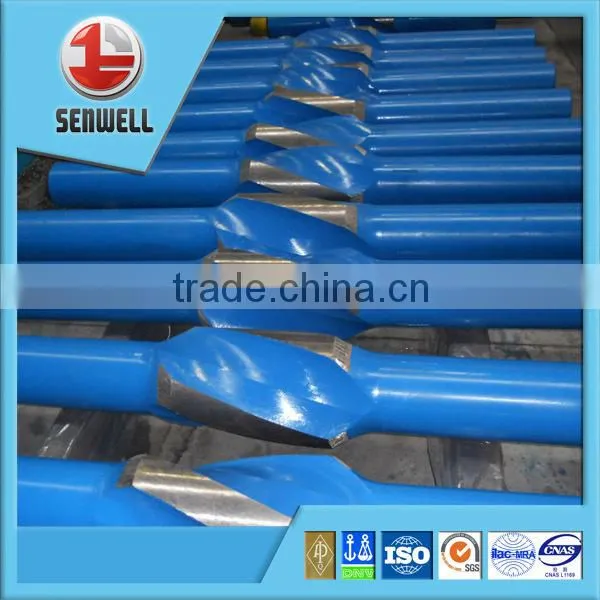

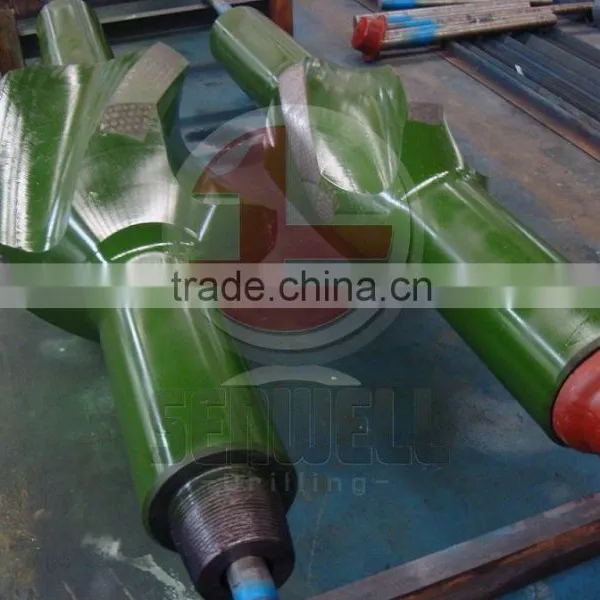

Float valve stabilizer
Float valve stabilizer is mainly used in near bit type stabilizer while working for preventing from borehole deflection, when blowout or well kick takes place, the float valve stabilizer will automatically shut off inside bore of tool to avoid the accident. The tool owns features such as high strength, large flowing area, high temperature resistant and high pressure resistant etc.
Detail Specification:
Technical specifications and parameters for Float Valve stabilizer | ||||
Type of stabilizer |
Stabilizer Mandrel O.D.(mm) |
Stabilizer connection |
Float valve assembly O.D.(mm) |
Float valve assembly length(mm) |
FFWL711 |
288, 241 |
7 5/8 REG |
121 |
298.4 |
FFWL588 |
288, 241 |
7 5/8 REG |
121 |
298.4 |
FFWL444 |
288, 241 |
7 5/8 REG |
121 |
298.4 |
FFWL311 |
203, 209.6 |
6 5/8 REG |
121 |
298.4 |
FFWL241 |
178 |
4 1/2 IF |
88 |
247.6 |
FFWL214 |
178, 165 |
4 1/2 IF |
88 |
211.14 |
FFWL152 |
127, 121 |
3 1/2 IF |
61 |
165.1 |

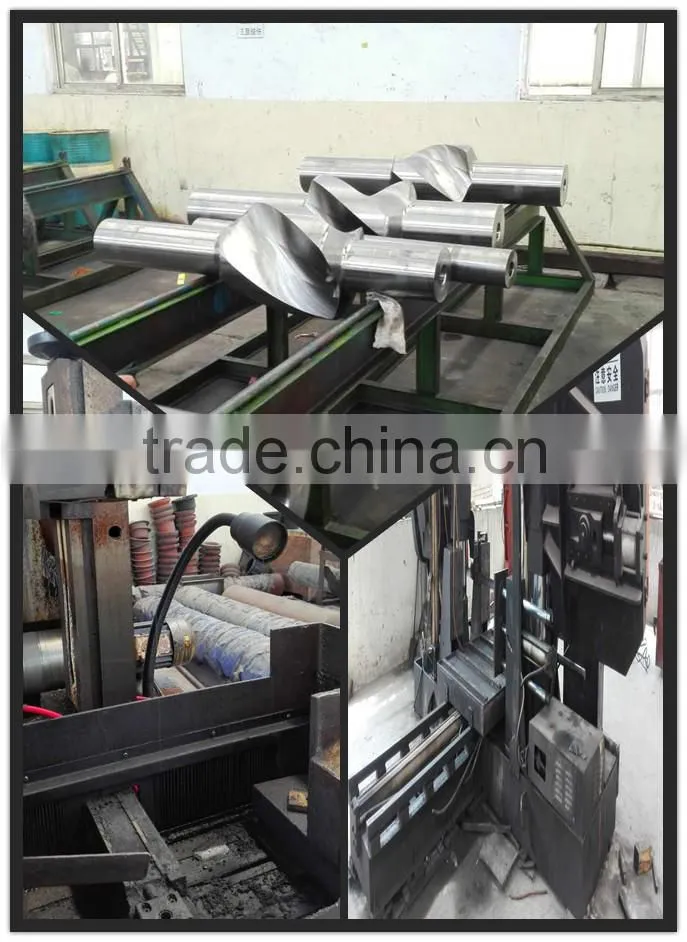

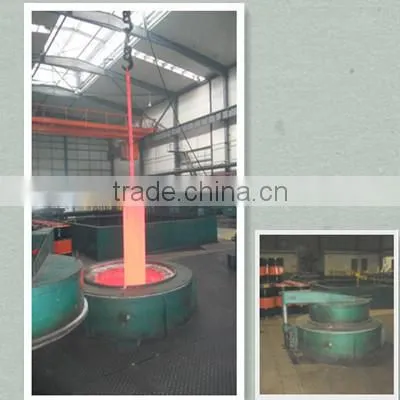

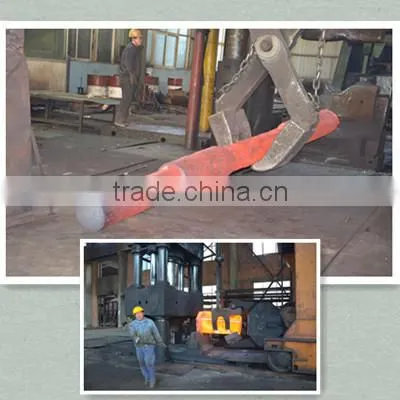

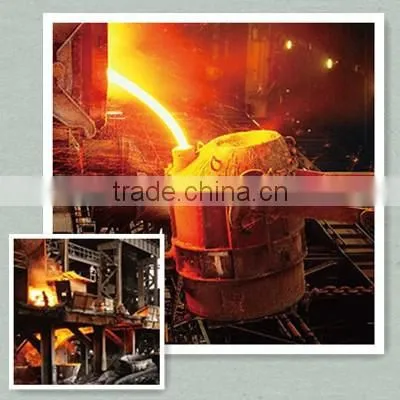

Production Flow
