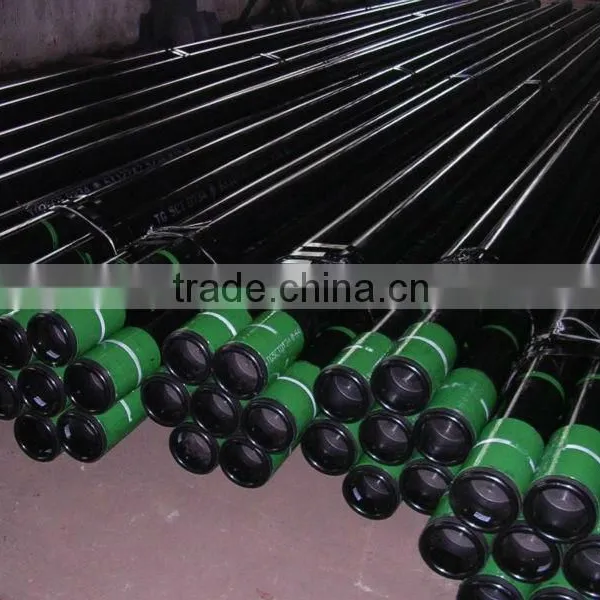

Help CenterGrade L80 13Cr Casing Tubing Oil Well Pipes
Related Products
-
Premium Quality API Oil Seamless Tubing and Pup Joints/OCTG PricesNegotiableMOQ: 20 Tons -
Hot Sales API Prestressed Heat-insulating Oil TubingNegotiableMOQ: 1 Piece
-
API N80 L80 P110 J55 K55 Casing and Tubing CouplingUS$ 60 - 100MOQ: 1 Ton
-
API 5CT Seamless Steel Oil Tubing/ J55 K55 N80 L80 Tubing/ 1.05" ~ 4.5" Seamless Threaded & Coupled TubingNegotiableMOQ: 10 Metric Tons
-
API 5CT 9-5/8" Seamless Steel Drilling Use Oilwell Tubing PipeUS$ 1 - 1,000MOQ: 10 Metric Tons
Specifications
P: Plain endS: Short round thread
L: Long round thread
B: Buttress thread
Standard: API SPEC 5CT Standard.
Usage: Seamless steel tubes for oil casing and tubing in oil and gas well. Tubing is mounted in the production casing after the oil well is dig and cemented, it is seamless pipe to transport oil gas to ground surface.
Steel grade: L80
Size: 4 1/2"~20"
Length: R1/R2/R3
Dimensional tolerances:
|
Types of steel tubes |
Outer diameter |
Wall thickness |
|
Cold-rolled tubes |
Tube sizes(mm) |
Tolerances(mm) |
Tolerances(mm) |
<114.3 |
±0.79 |
-12.5% |
|
≥114.3 |
-0.5%, +1% |
||
Mechanical properties:
Standard |
Models of steel tubes |
Tensile strength (MPa) |
Yield strength (MPa) |
Elongation (%) |
Hardness |
API SPEC 5CT |
J55 |
≥517 |
379~552 |
check the table |
≤241HB |
K55 |
≥517 |
≥655 |
|||
N80 |
≥689 |
552~758 |
|||
L80(13Cr) |
≥655 |
552~655 |
|||
P110 |
≥862 |
758~965 |
Chemical Composition:
Standard |
Models of steel tubes |
Chemical compositions (%) |
||||||||||
C |
Si |
Mn |
P |
S |
Cr |
Ni |
Cu |
Mo |
V |
Als |
||
API SPEC 5CT |
J55K55 (37Mn5) |
0.34~ 0.39 |
0.2~ 0.35 |
1.25~ 1.5 |
≤0.02 |
≤0.015 |
≤0.15 |
≤0.20 |
≤0.20 |
|
|
≤0.02 |
N80 (36 Mn2V) |
0.34~ 0.38 |
0.2~ 0.35 |
1.45~ 1.7 |
≤0.02 |
≤0.015 |
≤0.15 |
|
|
|
0.11~ 0.16 |
≤0.02 |
|
L80 (13Cr) |
0.15~ 0.22 |
≤1.0 |
0.25~ 1.0 |
≤0.02 |
≤0.010 |
12.0~ 14.0 |
≤0.20 |
≤0.20 |
|
|
≤0.02 |
|
P110 (30CrMo) |
0.26~ 0.35 |
0.17~ 0.37 |
0.40~ 0.7 |
≤0.02 |
≤0.010 |
0.8~1.1 |
≤0.20 |
≤0.20 |
0.15~ 0.25 |
≤0.08 |
≤0.02 |
|
Note: Also we can supply you pup joint and coupling (coupling stock and coupling blank) for tubing and Casing, as well as for weld pipe.
