Hot china products wholesale plastic hopper dryer for injection molding machine
SG series of hot-air dryers is the most effective and efficient machine to dry various types of raw plastic materials using hot air at high temperatures. It can dry raw materials which get moist or wet during packaging, transportation or recycling. Fast and space-saving, the design of the machine has made itself easy to be installed on the plastic molding machinery to function immediately. All the models in this series can work with a 24-hour Panasonic timer with pre-configured switch.
Features of plastic hopper dryer for injection molding machine
1) PID temperature control, accurate and reliable temperature control.
2) Curved design of hot air tube to avoid burning caused by the accumulation of scraps at the bottom of the tube.
3) Thermal diffusion device used to evenly disperse hot air, keeping the drying temperature of the plastic even, improving drying efficiency.
4) Barrel and hopper are separate for easy material cleaning and fast material change.
5) Barrel can be turned over on the hopper for fast material change and easy maintenance.
6) Over temperature protection device installed. It will shut down once there is over heat.
7) Windows on the body and base of the barrel for observation of the material inside
8) Work with 24-hour Panasonic timer with pre-configured switch.
9) Double insulation barrel is optional for all machine types.

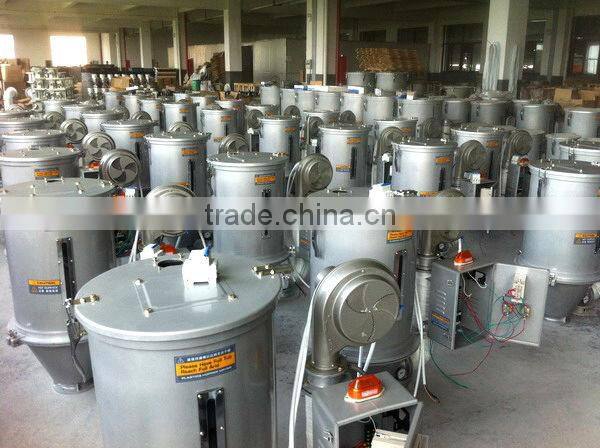

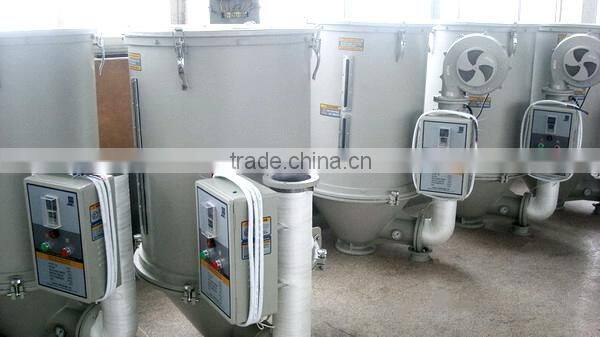

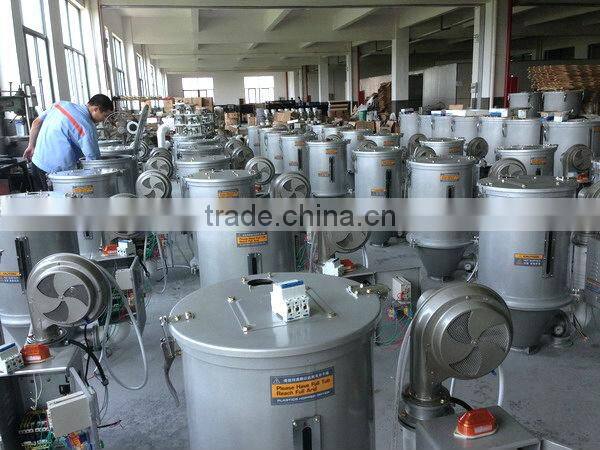

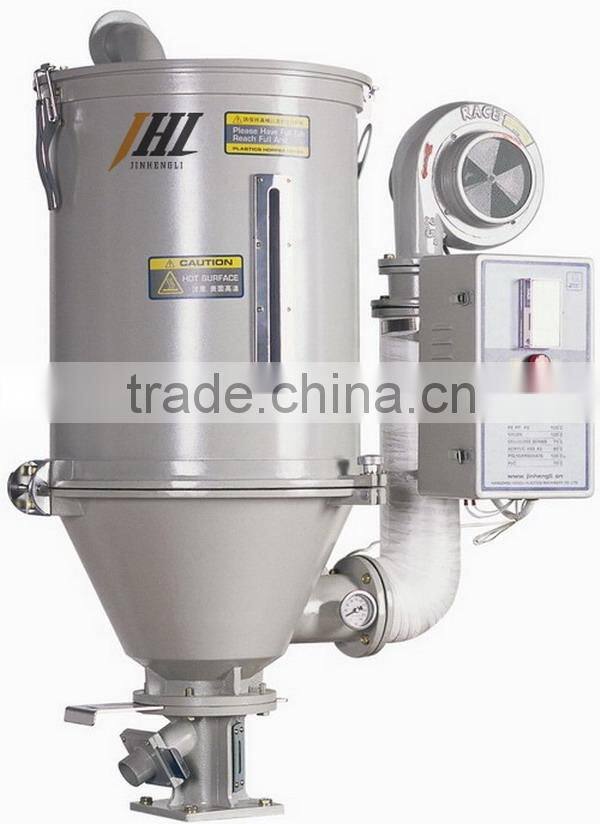

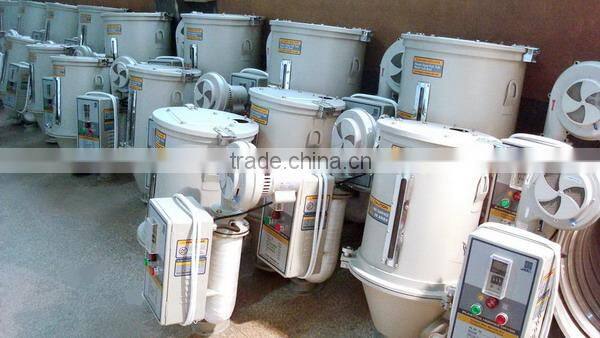

Pictures of plastic hopper dryer for injection molding machine
Specifications
| SG seires Plastic Hopper Dryer | ||||||||
| Model | Capacity (kg) | Heating Power (kw) | Blower Power (w) | Machine applied | Hopper Φ(mm) | High (mm) | Weight (kg) | Package size ( LxWxH m) |
| SG-25 | 25 | 3.2 | 135 | 3oz | 400 | 700 | 40 | 0.81x0.56x0.88 |
| SG-50 | 50 | 4.2 | 170 | 5~8oz | 480 | 950 | 50 | 0.91x0.63x1.05 |
| SG-75 | 75 | 5.1 | 170 | 5~8oz | 550 | 1050 | 60 | 1.01x0.69x1.13 |
| SG-100 | 100 | 6.5 | 185 | 10~20oz | 600 | 1100 | 95 | 1.11x0.77x1.24 |
| SG-150 | 150 | 8 | 200 | 10~20oz | 700 | 1250 | 100 | 1.20x0.88x1.36 |
| SG-200 | 200 | 12 | 320 | 20~30oz | 750 | 1400 | 150 | 1.31x0.81x1.50 |
| SG-300 | 300 | 16 | 320 | 20~30oz | 850 | 1650 | 160 | 1.49x1.04x1.77 |
| SG-400 | 400 | 18 | 340 | 30~50oz | 900 | 1800 | 230 | 1.58x1.10x2.02 |
| SG-600 | 600 | 22 | 2730 | 30~50oz | 1100 | 1450 | 250 | 1.71x1.25x2.06 |
| SG-800 | 800 | 24 | 800 | 40~60oz | 320 | |||

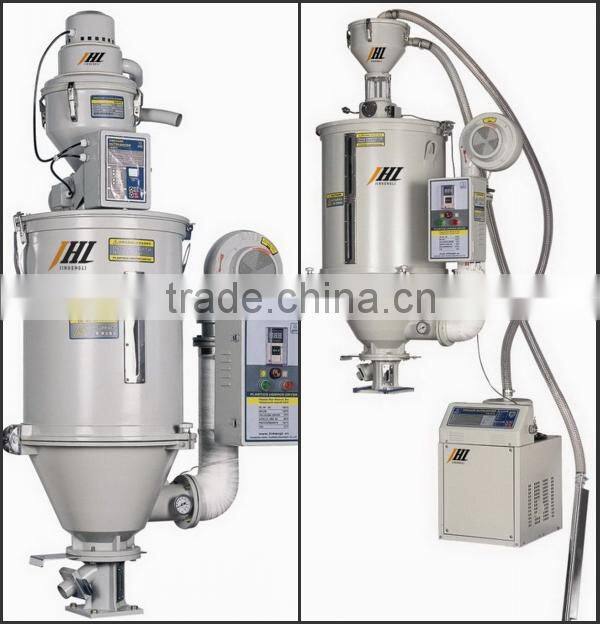

The Below left picture is Hopper dryer installed with Carbon brush type PL-300 Vacuum autoloader ; right picture is Hopper dryer installed with induction type
PL-900 Vacuum autoloder .
