Help CenterHDPE LDPE LLDPE Extrusion Blow Molding Machine (EB10H45S)
Related Products
-
1 Liter Extrusion Blow Molding Machine Price (EB10H50S)US$ 20,900 - 95,000MOQ: 1 Set -
Plastic Extrusion Blow Molding Machine (EB25H)US$ 20,900 - 95,000MOQ: 1 Set
-
Plastic Container Extrusion Blow Molding Machine (EB25H55S)US$ 20,900 - 95,000MOQ: 1 Set
-
Coffee Container Extrusion Blow Molding Machine (EB25H55-40D)US$ 20,900 - 95,000MOQ: 1 Set
-
Double (Two) Layers Extrusion Blow Molding Machine (EB25H65-45D)US$ 20,900 - 95,000MOQ: 1 Set
Specifications
Yuken hydraulic parts,FESTO SMC pneumatic parts, Siemens PLC,Schneider touchless sensors and switches♦ Double station and linear movement, high intensity stainless steel mould platens, driven by hydraulic pressure, designed and analyzed by finite element aided software, ensure big clamping force, no expansion of mold.
♦ Specially designed screw with high L/D ratio insures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers' top-quality requirement.
♦ Famous brand of vector inverter in high pulling torque, complied with special extrusion hardened reducer, can operate in stable, durable , and low noise state.
♦ All hydraulic parts are from Yuken (Japan). Pressure & proportional control are set by PLC, which ensures the stable operation; Mold movement is controlled by special speed limited valves, ensuring precise and non-striking.
♦ Parts of pneumatic system are imported from FESTO (Germany), SMC (Japan), etc, which are top brands in the word. These make sure the operation of machine reliably and accurately; the air circulation is large while the leakage is very small.
♦ High speed Siemens (Germany) PLC with multiple language touch screen, easy-access menu display, is easy to control and operate.
♦ Schneider (France) touchless sensors and switches are adopted, which are dependable and in low heat & prolonged life.
♦ Multiple-way PID controlled temperature heating is precise and stable.
♦ Fully automatic operation can be achieved by optional equipments like auto-deflashing, rotary trimming device or separated rotary trimming equipment.

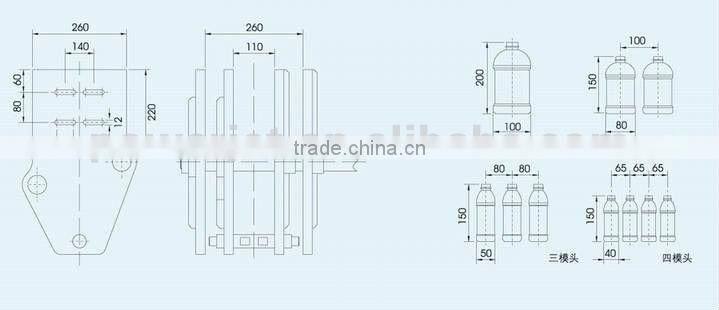

Mould Platen Size & Product Specification of EB10H (mm)
Technical Parameter
| Model | Unit | EB10H45S | EB10H50S |
| Max. product | L | 1 | 1 |
| Clamping Force | KN | 37 | 37 |
| Dry Cycle Time | Sec | 4.5 | 4.5 |
| Screw Diameter | mm | Φ45 | Φ50 |
| Screw L/D ratio | L/D | 25 | 25 |
| Screw Rotary Speed | RPM | 75 | 75 |
| Extrusion Weight (HDPE) | KG | 30 | 40 |
| Extrusion Motor Power | KW | 7.5 | 7.5 |
| Pump Motor Power | KW | 5.5 | 5.5 |
| Heating Capacity | KW | 6 | 7.5 |
| Operation Pressure | Mpa | 0.6~0.8 | 0.6~0.8 |
| Air Consumption | m3/min | 1 | 1 |
| Extrusion Motor Power | L/min | 30 | 30 |
| Machine Dimension (LXWXH) | mm | 2100x1700x2200 | 2100X1700X2200 |
| Machine Weight | KG | 1900 | 2000 |

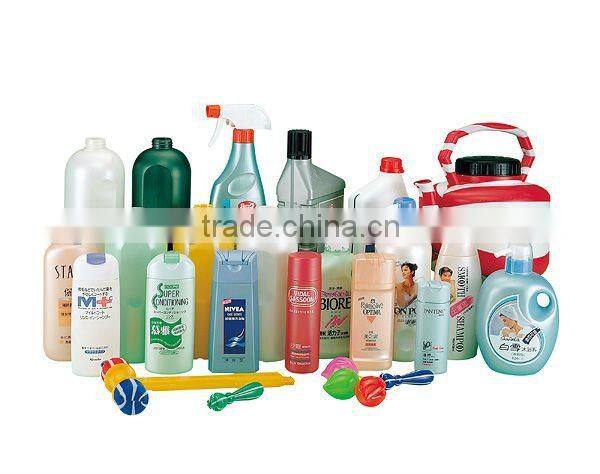

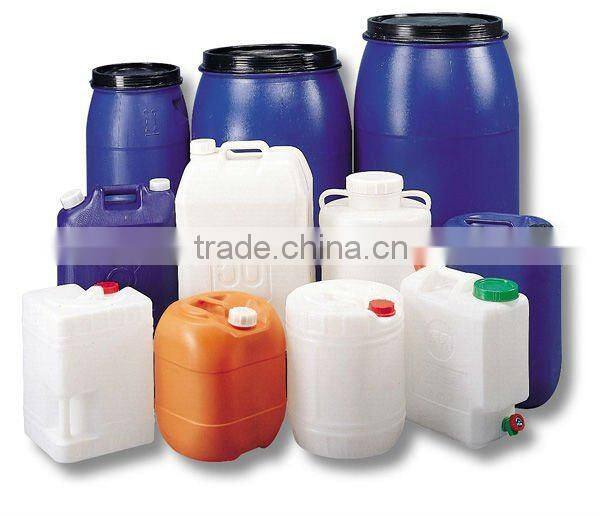

Product Samples
