Cheap and high quality green recycling crusher for waste plastic
HG-Q series of silent centralized crushers is of compact size, easy to operate with fully enclosed sound insulation design, which lowers noise and avoids dust contamination.
It is suitable for centralized crushing of various pieces of injection molding, blow molding, profiles, sheet or film and outlet materials. The series includes various types with a wide scope of application in the plastic industry. It plays a vital role in prompt recycling and processing of plastic scrap, waste and recycling materials, enhancing the utilization of plastic.
Features of green recycling crusher for waste plastic
1) Constant/sealing/cleangrind cutting technology
2) Minimal energy consumption, no friction heat,uniform size of granule and low dust
3) Modularity design and Tailor made for your different application
4) Easy and quick change of rotating or fixing knife
5) Easy and directto access cutting house simplifies cleaning when changing color or material
6) Esay and auick change of rotating or fixed knife
7) Between low and high rotation speed is optional
8) Multiple safety protection,Operation with low voltage
9) High load factor on shaft desgin ,safe sealing protection on bearing.
10) Hardened cutter ring as standard

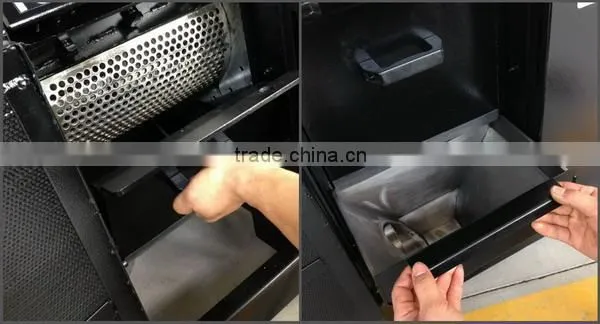

11)Wear-resistant and turnovered screen,excellent durability

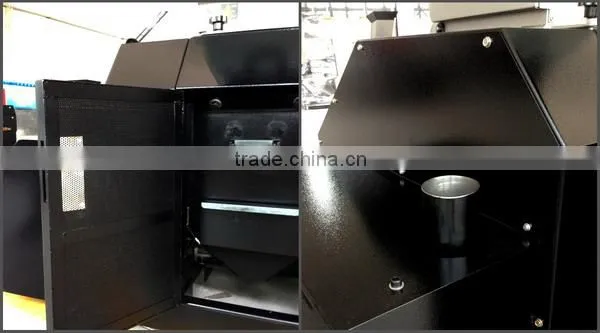

12)A quieter environment due to soundproof covering
13)Compact structure and move easily
14)The assistant gas spring help to open or close hopper easliy

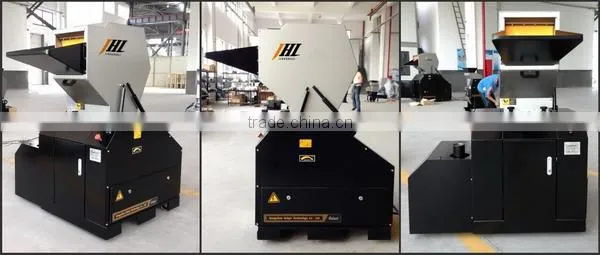

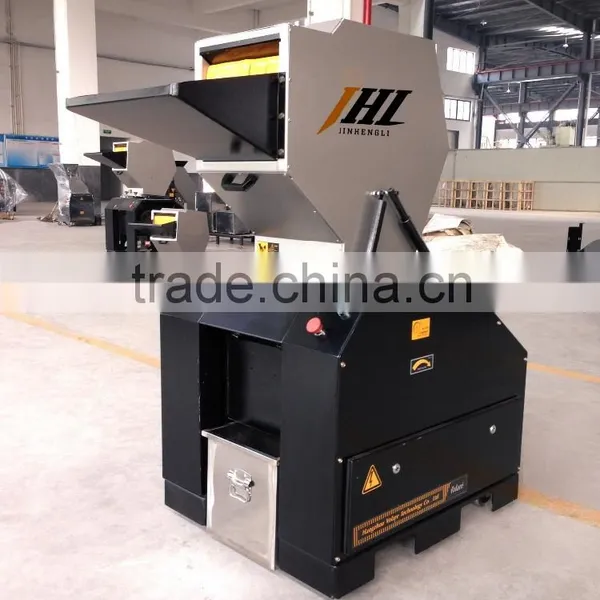

Pictures of green recycling crusher for waste plastic

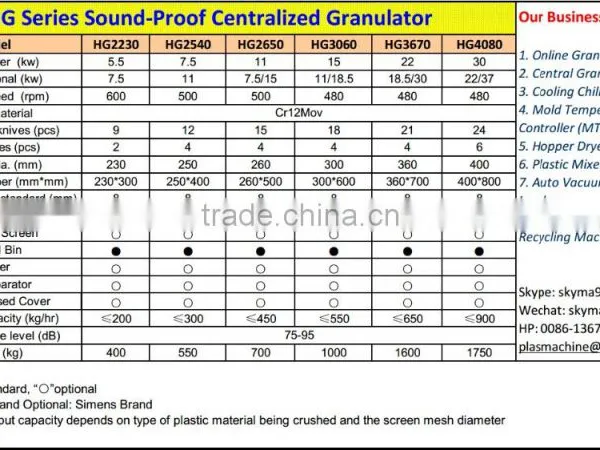

Specifications
| Model | HG2230 | HG2540 | HG2650 | HG3060 | HG3670 | HG4080 |
| Motor power (kw) | 5.5 | 7.5 | 11 | 15 | 22 | 30 |
| Motor optional (kw) | 7.5 | 11 | 7.5/15 | 11/18.5 | 18.5/30 | 22/37 |
| Rotating speed (rpm) | 600 | 500 | 500 | 480 | 480 | 480 |
| Knives material | 9CrSi | 9CrSi | 9CrSi | 9CrSi | 9CrSi | 9CrSi |

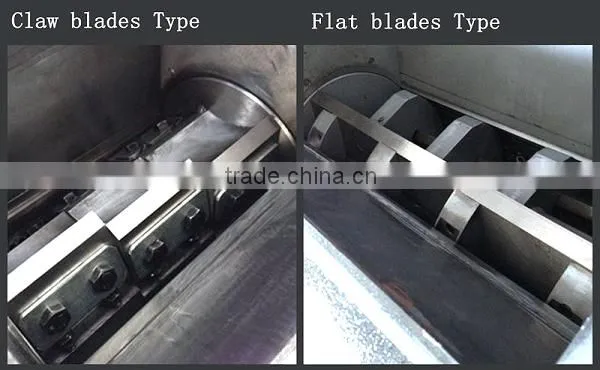

| Claw moving knives (pcs) | 9 | 12 | 15 | 18 | 21 | 24 |
| Optional Flat knives (pcs) | 3 | 6 | 6 | |||
| Fixed knives (pcs) | 2 | 4 | 4 | 4 | 4 | 6 |
| Rotating Dia. (mm) | 230 | 250 | 260 | 300 | 360 | 400 |
| Crushing chamber (mm*mm) | 230*300 | 250*400 | 260*500 | 300*600 | 360*700 | 400*800 |
| Screen Hole Dia.-standard (mm) | 8 | 8 | 8 | 8 | 8 | 8 |
| Screen Hole Dia.-optional (mm) | 4,6,10,12,14,18,25 | |||||
| Hardened Screen | o | o | o | o | o | a |
| Manual Bin | s | s | s | s | s | b |
| Blower | o | o | o | o | o | a |
| Dust Separator | o | o | o | o | o | a |
| Noise Enclosed Cover | o | o | o | o | o | a |
| Crushing Capacity (kg/hr) | ≤200 | ≤300 | ≤450 | ≤550 | ≤650 | ≤900 |
| Sound pressure level (dB) | 75-90 | 75-95 | ||||
| Dimensions (L*W*H) (mm) | 930×680×1120 | 1150×820×1280 | 1200×880×1400 | 1230×1020×1520 | 1460×1200×1700 | 1500×1350×2100 |
| Weight (kg) | 400 | 550 | 850 | 1000 | 1200 | 2000 |
|
Notes: 1) “s”standard, “o”optional
| ||||||

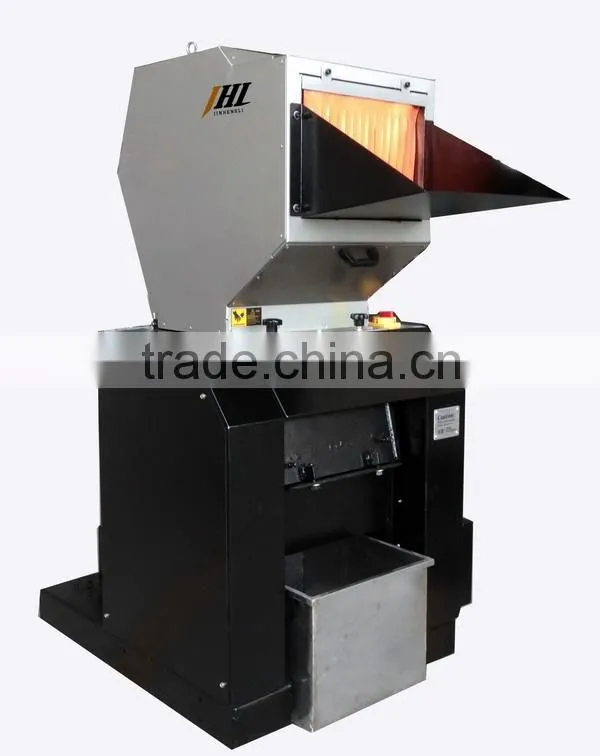

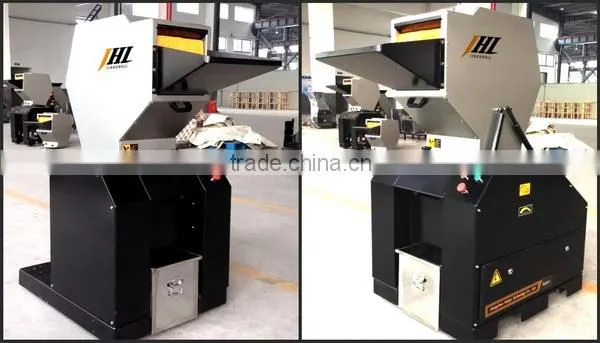

Below is HG series Half-inclosed Type: Manual Bin

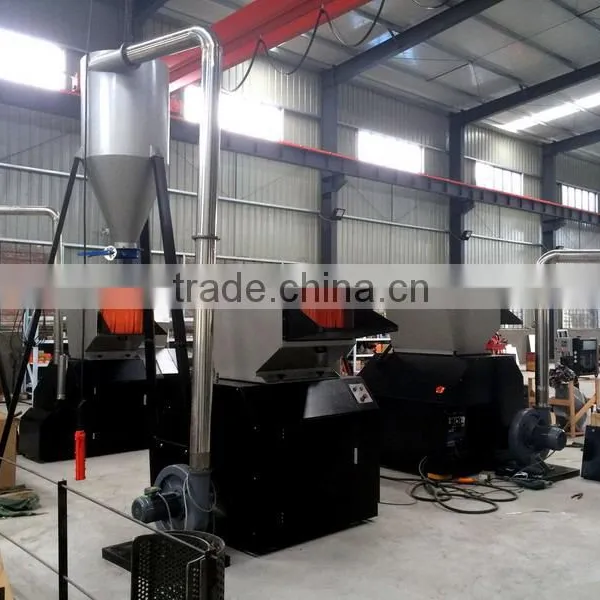

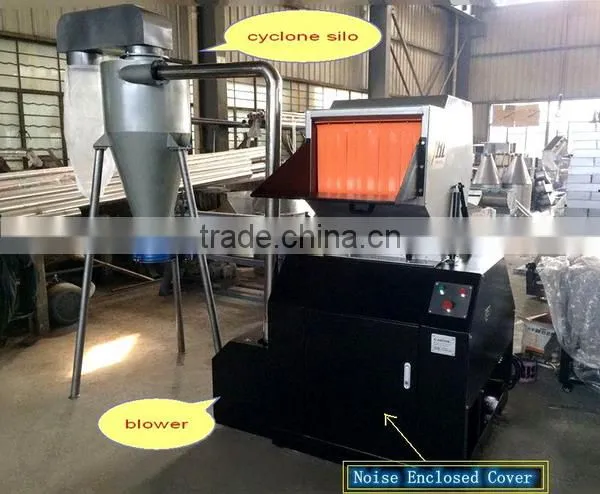

Below is HG series Full-inclosed Type:Be installed with blower & Cyclone silo & Noise Enclosed Cover. ("Q" type) Soundproof function
Option: Dust separator
Our Product Range
2. Central granulator
3. Cooling chiller
6. Plastic mixers / blender
7. Auto vacuum hopper loaders
8. Central feeding/conveyor system
9. Other plas-auxiliary equipment
Packing & Shipping
About us
Hangzhou Hengli Plastic Machinery Co., Ltd. is a professional manufacturer of auxiliary equipment for plastic Injection, Mold and Extrusion machines, and we have been in the plastic machine field for almost three decades, specialized in Plastic granulator, Hopper dryer, Plastic dehumidifier ,Plastic Mixer, Vacuum Autoloader, Plastic granulator,Cooling chillers,Mold Temperature Controller and so on.
Clients' continuous recognition and confidence in our products not only enriched our product range and also accelerated growth of our company. "Contributing to the World through high quality and low cost" it is our goal. This is made possible by more than 25 years of profound experience and plastic field.
Factory Tour
Customer
Our Market
Certification
Contact Us

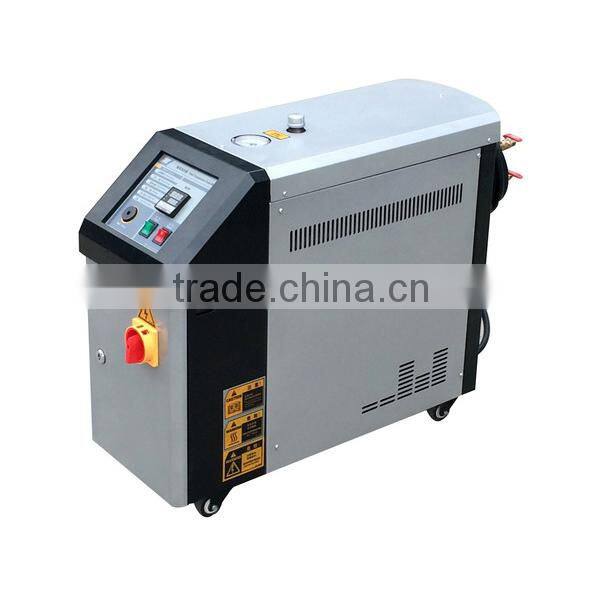

More to be find molding temperature controller, plz click the below picture
