Specifications
Special designing machine for Paint BucketFast opeing and clamping
Energy saving
Differential fast mould locking device

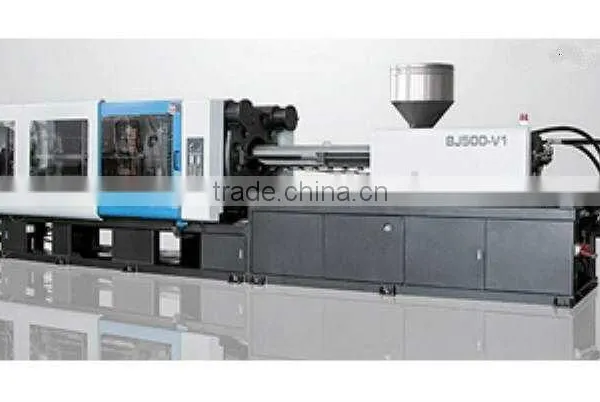

Paint Bucket Injection Molding Machine (Machinery)
1. Clamping Unit

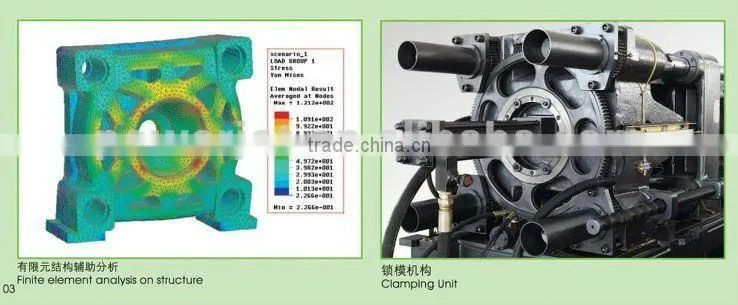

• Finite element analysis on structure, the mould board is more logical, stronger and higher fatigue resistance.
• Low pressure protection function greatly prolongs the service life of the mould.
• High precision electron meter is used to control position, the control precision is 0.1 mm.
• Mechanical, electric and hydraulic (optional) safety protection are equipped

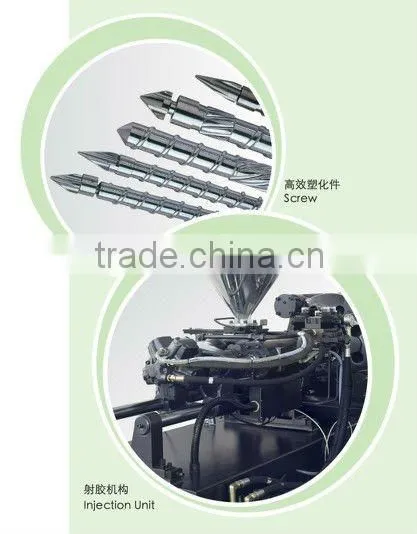

2. Injection Unit
• Superior and efficient separating screw and high mixing screw increase the range of material used, and guarantee molten material to be uniform and stable.
• Machine above BJ400 adopts double injection shift devices to prevent injection nozzle displacement and avoid material leakage.
3. Hydraulic System

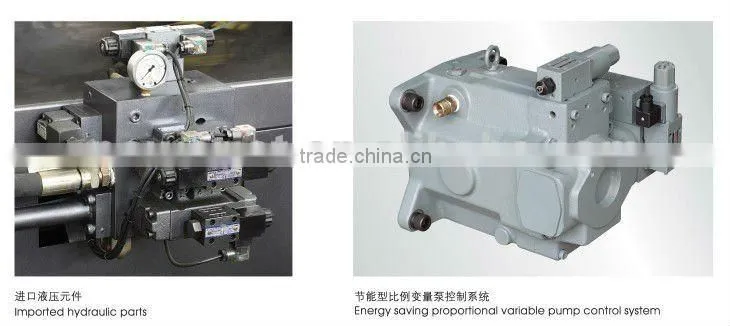

• High efficient proportional variable pump saves electricity by 25% - 50%.
• With full flow filtration oil circuit of high precision return oil filter, the oil filter effect is up to NAS - 7 levels.
• Spiral flow cooler is high in heat transfer efficiency and less pressure loss.

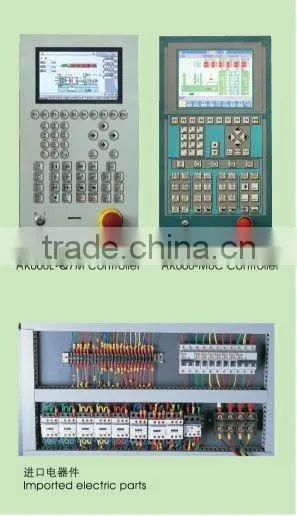

4. Controller
• It can store injection material information for 120 setsof moulds
• Fuzzy temperature control is use. High and low temperature deviation alarm and thermocouple disconnection inspection functions are available.
• Function to prevent cold material start-up.
• Times of forming can be matched with automatic stop function for convenient production management.
• Computer controlled automatic lubrication devices.
• Automatic mould adjustion function.
5. Lubrication System
• Major friction parts are equipped with lubrication points. Central oil supply system is used for hinges.

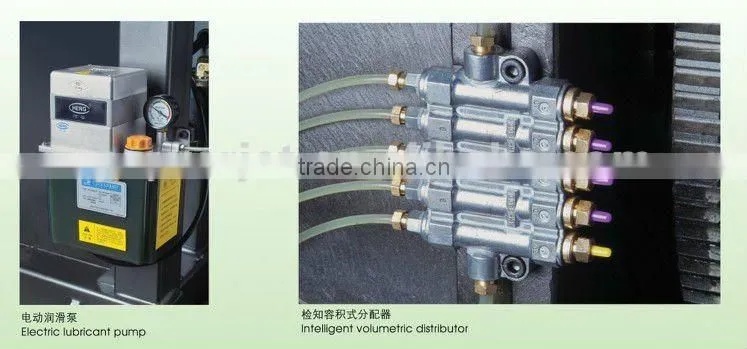

• Intelligent volumetric centralized lubricating system is equiped.

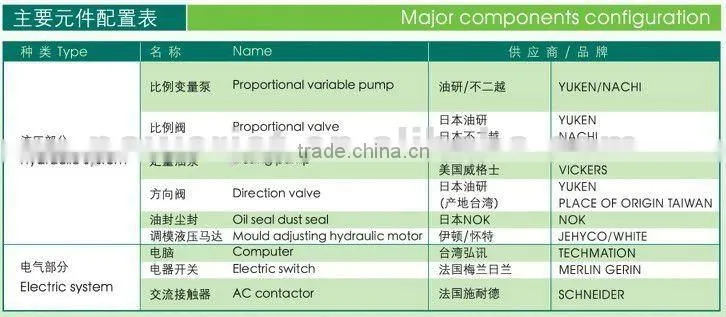

6. Major components
7 Parameter
| Description | Unit | BJ500V2 |
| Clamping Unit | ||
| Clamping Force | KN | 5000 |
| Opening Stroke | mm | 830 |
| Max.daylight | mm | 1680 |
| Platen size | mm | 1260×1260 |
| Space between bars(H*V) | mm*mm | 820×780 |
| Max.mold height | mm | 850 |
| Min.mold height | mm | 300 |
| Ejector stoke | mm | 220 |
| Ejector force | KN | 135 |
| Injection Unit | ||
| Screw diameter | mm | 75 85 95 100 |
| Screw L/D Ratio | 23.8 21 19.8 17.8 | |
| Injection pressure | Mpa | 209 163 145 118 |
| Shot volume | cm3 | 1722 2212 2480 3061 |
| Shot weight(PS) | g | 1618 2079 2330 2877 |
| OZ | ||
| Injection rate | g/sec | 346 444 498 614 |
| plasticizing capacity | g/sec | 68 80 88 94 |
| Screw stroke | mm | 245 |
| Screw speed | rpm | 133 |
| Power Unit | ||
| Hydraulic system pressure | Mpa | 17.5 |
| Pump motor power | KW | 45 |
| Heater power | KW | 28 |
| General | ||
| Oil tank capacity | L | 5.8 |
| Machine weight | Ton | 19.5 |
| Machine dimensions(L*W*H) | m*m*m | 8.7x2.1x2.3 |
