Home > Products > O ring > M20 M20X2 BS/A1 standard metric rubber metal outer cased round joint seal washer
M20 M20X2 BS/A1 standard metric rubber metal outer cased round joint seal washer
- 100000 Piece / Pieces per Month
- Qingdao
- T/T Credit Card
- High Quality Cars Oil Seal NBR FKM Wear Resistant Skeleton Oil Seal
- SEAL KIT NXQ-AB-25/31.5-L-E for power plant
- mechanical seal HSNH280-43 power plant spare parts
- Factory Direct Sales TG TG4 Oil Seal FKM NBR Rubber Skeleton Oil Seal
- Mechanical seal HSNS210-40A for power station
- Different Size Color O-Ring NBR EPDM FKM FPM Rubber O Ring Seal
Product Details
Standard or Nonstandard: | Standard | Style: | Mechanical Seal | Material: | Other, Rubber, NBR+metal |
Place of Origin: | Shandong, China | Brand Name: | Hualei | Model Number: | M20 M20X2 |
Product Description

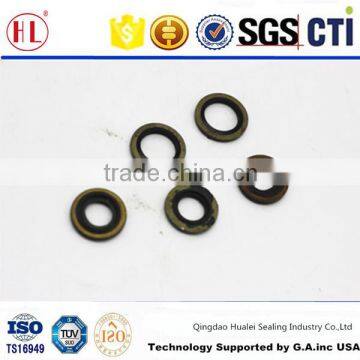

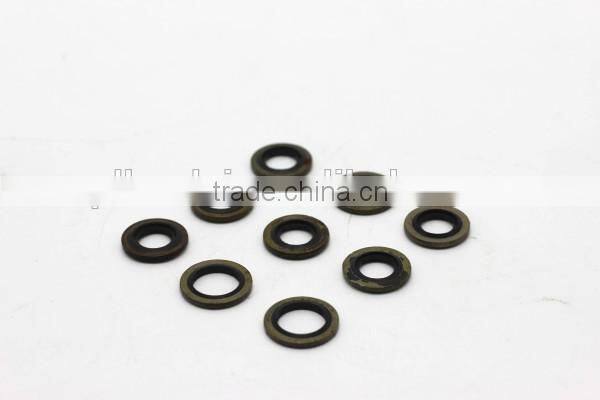

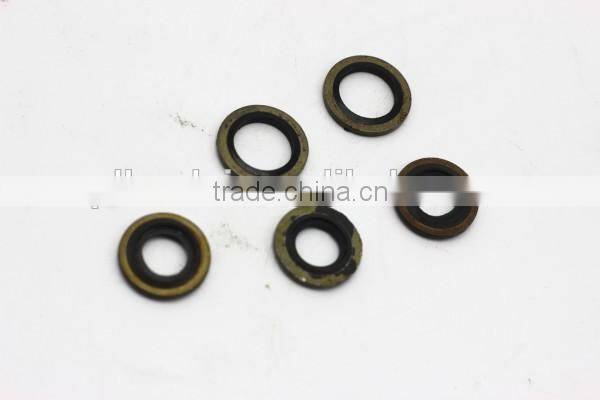

M20 M20X2 BS/A1 standard metric rubber metal outer cased round joint seal washer
Sizd | Metric Dia | Spring size | Size details | ||||
d1 | d2 | D | H | h | |||
M8*1.5 | φ8 | M8 | ¢7.5 | ¢9.3 | ¢14.8 | 2.3 | 1.5 |
M10*1.5 | φ10 | M10,G1/8" | ¢8.5 | ¢11.8 | ¢17.8 | 2.3 | 1.5 |
M12*1.5 | φ12 | M12 | ¢11.6 | ¢13.5 | ¢19.5 | 2.3 | 1.5 |
M14*2 | φ14 | M14,G1/4" | ¢13.6 | ¢16 | ¢23 | 2.9 | 2 |
M16*2 | φ16 | M16 | ¢15.6 | ¢18 | ¢25 | 2.9 | 2 |
M18*2 | φ18 | M18,G3/8" | ¢17.6 | ¢20 | ¢28 | 3 | 2 |
M20*2 | φ20 | M20 | ¢19.6 | ¢22 | ¢32 | 3 | 2 |
M22*2 | φ22 | M22,G1/2" | ¢21.6 | ¢24 | ¢34 | 3 | 2 |
M24*2 | φ24 | M24 | ¢23.6 | ¢26 | ¢36 | 3 | 2 |
M27*2 | φ27 | M27,G3/4" | ¢26.6 | ¢29 | ¢39 | 3 | 2 |
M30*2 | φ30 | M30 | ¢29.6 | ¢32 | ¢42 | 3 | 2 |
M33*2 | φ33 | M33,G1" | ¢32.6 | ¢35 | ¢45 | 3 | 2 |
M36*3 | φ36 | M36 | ¢35.6 | ¢38 | ¢48 | 4 | 3 |
M39*3 | φ39 | M39 | ¢38.6 | ¢41 | ¢51 | 4 | 3 |
M42*3 | φ42 | M42,G1.1/4" | ¢41.6 | ¢44 | ¢54 | 4 | 3 |
M45*3 | φ45 | M45 | ¢44.6 | ¢47 | ¢57 | 4 | 3 |
M48*3 | φ48 | M48,G1.1/2" | ¢47.6 | ¢50 | ¢60 | 4 | 3 |
M52*3 | φ52 | M52 | ¢51.6 | ¢54 | ¢66 | 4 | 3 |
M60*3 | φ60 | M60,G2" | ¢59.6 | ¢62 | ¢75 | 4 | 3 |
1.Inside and outside packing is listed as below for your selection or Plain packing as your request
2.FOB QINGDAO or others ports as nornimated
3.Express /Air /SEA shipment is acceptable
Products Series | Material | Payment |
Automotive Oil Seals | NBR,SI,FPM | FOB QINGDAO |
Industrial Oil Seals | NBR | MOQ :USD1000/BL |
Valve Stem Seals | SI,FPM | USD,EU ,RMB is accpetable |
Customers molding Seals | OEM | OEM |
Factory View -Actual Photos
Factory Inspection Machine & Process
Factory Self Inspection report :
3rd Party Inspection requested by customer
Copy right packing design and Registered self-own Brand
Existing Customer
HOW TO SELECT OIL SEAL
Selection Guidelines :
A : Determine the general category of the seal application
B: Determine if operating conditions exceed the design limited
1. Shaft Speed 2. Pressure 3. Eccentricity
C: Select appropriate lip ,case and spring material based on temperature fluid and environment to be sealed and excluded
D: Review bore and shaft configuration to ensure compatibility with seal
E: OEM service will be provided if all usage request exceed all of above
Process
Material Selection
Nitrile Rubber ( NBR )
NBR is most commonly used material. It has good heat resistance properties, good resistance to oils, salt solutions, hydraulic oils, and gasoline. Operation temperatures are recommended from -40° to 120°C. It also functions well under dry environment, but only for intermittent periods. The disadvantage is poor chemical resistance.
Polyacrylate Rubber (PA)
Acrylic rubber has better heat resistance than Nitrile. It is recommended for high surface speed environment. The operation temperatures are recommended from -20° to 150°C. It should not be used with water or in temperature below -20°C.
Silicone Rubber (SI)
Silicone compounds operate effectively in a broad temperature range of -50° to 180°C. It is unsurpassed in its resistance to heat and low temperatures. The high lubricant absorbency of silicone minimizes friction and wear. It is usually used for crank shaft seals. Silicone has poor hydrolysis resistance. It should not be used in oxidized or hypoid oils.
Fluorinated Rubber (VI)
Fluorinated rubber is widely known under the du Pont trade name of Viton R. It has the best resistance to chemicals, and superior performance to high temperatures. Though VITON provides so many good prospects, it has the highest cost.
Performance of Hualei Seals
Material | NBR | PA(ACM) | SI(VMQ) | VI(FKM) |
Temp range(C) | -40~120 | -20~150 | -50~180 | -30~200 |
Hardness | 70/80 | 70/80 | 75/85 | 70/80 |
Cost | most economical | 3rd costly | 2nd costly | highest |
Oil Installation Procedures
Incorrect Installation
