Hot Product S-500 With Good Quality^single Output Adapter Regulated Switching Power Supply

Wenzhou Mseed Electric Co., Ltd.
Hot Product S-500 With Good Quality^single Output Adapter Regulated Switching Power Supply thumbnail-1
Hot Product S-500 With Good Quality^single Output Adapter Regulated Switching Power Supply thumbnail-2
Hot Product S-500 With Good Quality^single Output Adapter Regulated Switching Power Supply thumbnail-3
Hot Product S-500 With Good Quality^single Output Adapter Regulated Switching Power Supply thumbnail-4
Hot Product S-500 With Good Quality^single Output Adapter Regulated Switching Power Supply thumbnail-5
Hot Product S-500 With Good Quality^single Output Adapter Regulated Switching Power Supply thumbnail-6
Hot Product S-500 With Good Quality^single Output Adapter Regulated Switching Power Supply photo-1

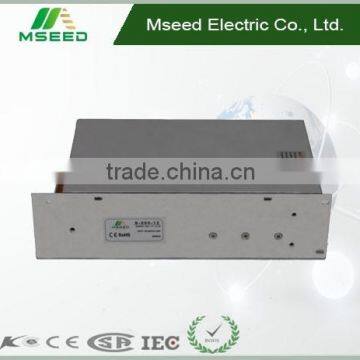

Hot Product S-500 With Good Quality^single Output Adapter Regulated Switching Power Supply photo-2

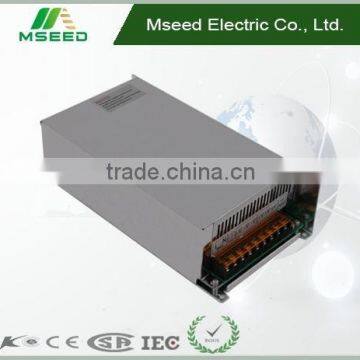

Hot Product S-500 With Good Quality^single Output Adapter Regulated Switching Power Supply photo-3

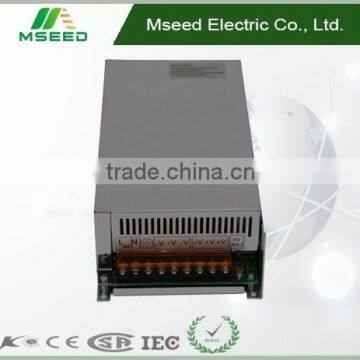

Hot Product S-500 With Good Quality^single Output Adapter Regulated Switching Power Supply photo-4

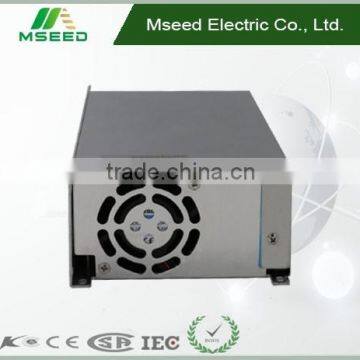

Hot Product S-500 With Good Quality^single Output Adapter Regulated Switching Power Supply photo-5

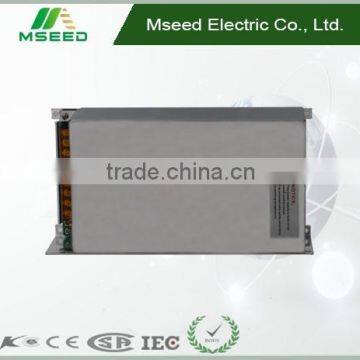

Hot Product S-500 With Good Quality^single Output Adapter Regulated Switching Power Supply photo-6
US$ 21.2 - 25.5 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Mseed
Model Number:
S-500
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Mseed
Model Number S-500
Output Power Other, 500W
Output Type Single
Input Voltage Other, 90-130VAC/170-260VAC
Output Voltage 5V/12V/24V/36V/48V
Output Frequency 50Hz
Output Current other
Product Details
Product Introduction

Quick details.

Place of Origin: Zhejiang, China (Mainland)
Brand Name: Mseed
Model Number:S-500
Output Power: 500W
Output Type: Single
Input Voltage: 90-130VAC/170-260VAC
Output Voltage:5V/12V/24V/36V/48V
Output Frequency: 50Hz

Safety: IEC CE ROSH SAA KC

Features

• Universal AC input / Full range
• Protections:Short circuit/Over load/Over voltage
• Built-in cooling Fan ON-OFF control
• 100% full load burn-in test
• Fixed switching frequency at 25KHz
• Load stability +/-0.5%
•Low ripple noise
•High withstand voltage insulation
•Operation temperature high up to 70℃
•Meet EN61000/EN60950 heavy industrial level, CE certificate
•3-year warranty

Parameters
Model
S500-12
S500-15
S500-24
S500-36
S500-48
Input
Voltage Frequency
70-260VAC, 47-63Hz; 240-370VDC
Current
3.4A/230V
Efficiency(AC220V)
84%
84%
85%
85%
86%
Inrush Current
46A/230V at cold start
Output
Voltage
12V
15V
24V
36V
48V
Current
42A
34A
21A
13.9A
10.4A
Regulation Line
±1%
±1%
±1%
±1%
±1%
Regulation Load
±1%
±1%
±0.5%
±0.5%
±0.5%
Ripple Noise
≤200mVp-p
≤200mVp-p
≤240mVp-p
≤360mVp-p
≤480mVp-p
Temperature Drift
±0.02% / ℃(0-50℃)
Rated Power
505W
510W
505W
500W
500W
Rise&Holding Time
1s, 100ms, 50ms
Circuit Protection
Over Current Protection
Works at over 105%-120% of rating and recovers automatically
Over Voltage Protection
13.8-16.2V
18-21V
27-32V
39-42V
57-67V
Over-Heat Protection
≥55℃Fan start; ≥65℃Fan speed up;≥80℃Output close
Withstand voltage Insulation
Input-Output
AC1500V;500VDC/100MΩ
Input-Case,FG
AC1500V;500VDC/100MΩ
Output-Case,FG
AC500V;500VDC/100MΩ
Environment
Operating Temp and Humid
(-10)℃- (+60)℃, 20%-90%RH
Storage Temp and Humid
(-20)℃- (+85)℃, 10%-95%RH
Vibration
10-500Hz at 2G, 10minutes period,60minutes along X, Y and Z axis
Safety
Safety Regulation
IEC CE ROSH SAA KC
EMC
IEC / EN60950-1 EN61347-1:2008
IP
IP
IP22
Applications

These products are Constant Voltage LED Drivers. For dimming purpose, please equip with compatible low voltage dimmer switches and arrange your circuit in the following sequence:

Mains – LED Driver – Low Voltage Dimmer – Low Voltage LEDs

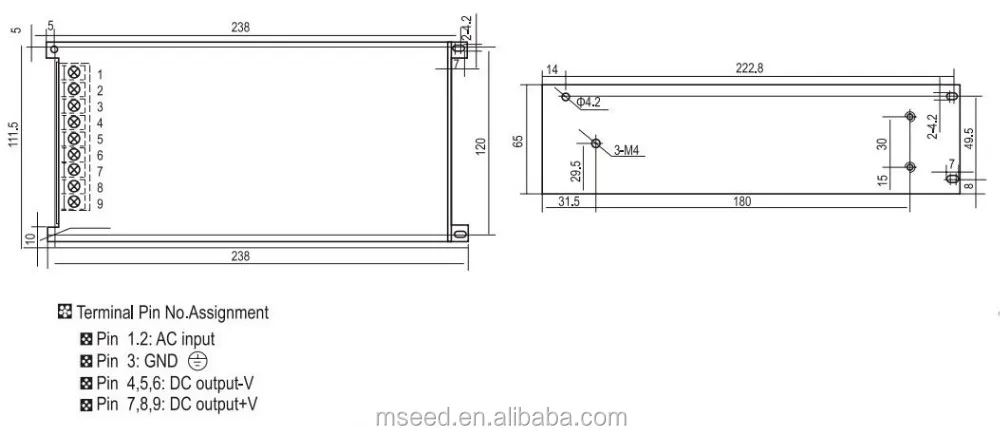

Dimension
Packing Details

Being packed according to the international standard is to guarantee safe delivery during the transportation.

Factory Details


Why Choose Us

•Professional manufacturer with internationally standard production lines and a devoted technical team.

•Strict test procedure with advanced test equipment

•Responsive and responsible service team.

•Door to door service when needed.

•Helpful and enthusiastic in developing the buyers’ business.



•Treat your career as our career.

Certifications:
