Hot Sale DIN Rail Switching Power Supply %DR-120 With Good Quality

Wenzhou Mseed Electric Co., Ltd.
Hot Sale DIN Rail Switching Power Supply %DR-120 With Good Quality thumbnail-1
Hot Sale DIN Rail Switching Power Supply %DR-120 With Good Quality thumbnail-2
Hot Sale DIN Rail Switching Power Supply %DR-120 With Good Quality thumbnail-3

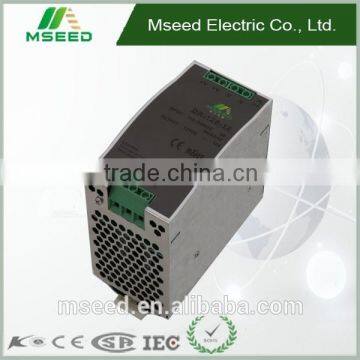

Hot Sale DIN Rail Switching Power Supply %DR-120 With Good Quality photo-1

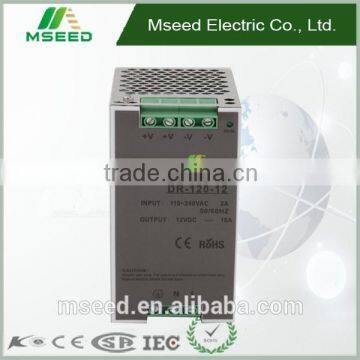

Hot Sale DIN Rail Switching Power Supply %DR-120 With Good Quality photo-2

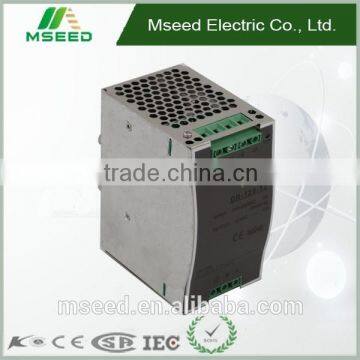

Hot Sale DIN Rail Switching Power Supply %DR-120 With Good Quality photo-3
US$ 13.8 - 15.8 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Mseed
Model Number:
DR-120
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Mseed
Model Number DR-120
Output Power Other, 120W
Output Type Single
Input Voltage Other, 85-264VAC
Output Voltage 12V/15V/24V/48v
Output Frequency 50Hz
Product Details
Product Introduction

Quick details.

Place of Origin: Zhejiang, China (Mainland)
Brand Name: Mseed
Model Number:DR-120
Output Power: 120W
Output Type: Single
Input Voltage: 85-264VAC
Output Voltage: DC12V 20A
Output Frequency: 50Hz   innov switching power supply

Safety: IEC CE ROSH SAA KC

din rail switching power supply

Features

• Universal AC input / Full range
• Protections:Short circuit/Over load/Over voltage
• Built-in cooling Fan ON-OFF control
• 100% full load burn-in test
• Fixed switching frequency at 25KHz
• Load stability +/-0.5%
•Low ripple noise  din rail switching power supply
•High withstand voltage insulation
•Operation temperature high up to 70℃     innov switching power supply
•Meet EN61000/EN60950 heavy industrial level, CE certificate
•3-year warranty  din rail switching power supply

Parameters
Model
DR120-12
DR120-15
DR120-24
DR120-48
Input
Voltage Frequency
85-264VAC, 120-370VDC
Current
0.85A/230V
Efficiency(AC220V)
80%
81%
84%
85%
Inrush Current
20A/115V 40A/230V at cold start
Output
Voltage
12V
15V
24V
48V
Current
10A
8A
5A
2.5A
Regulation Line
0.5%
0.5%
0.5%
0.5%
Regulation Load
1%
0.5%
0.5%
0.5%
Ripple Noise
≤75mVp-p
≤75mVp-p
≤75mVp-p
≤100mVp-p
Temperature Drift
±0.02% / ℃(0-50℃)
Direct Output Wattage
120W
120W
120W
120W
Rise&Holding Time
500ms,70ms,30ms
Circuit Protection
Over Current Protection
Works at over 105%-120% of rating and recovers automatically
Over Voltage Protection
115%-135%
Over Voltage Protection
/
Withstand
voltage Insulation
Input-Output
AC1500V;500VDC/100MΩ
Input-Case,FG
AC1500V;500VDC/100MΩ
Output-Case,FG
AC500V;500VDC/100MΩ
Environment
Operating Temp and Humid
(-10)℃- (+50)℃, 20%-90%RH
Storage Temp and Humid
(-20)℃- (+85)℃, 10%-95%RH
Vibration
10-500Hz at 2G, 10minutes period,60minutes along X, Y and Z axis
Safety
Safety Regulation
IEC CE ROSH SAA KC
EMC
IEC / EN60950-1 EN61347-1:2008
IP
IP
IP22
Applications

These products are Constant Voltage LED Drivers. For dimming purpose, please equip with compatible low voltage dimmer switches and arrange your circuit in the following sequence:   18v switching power supply

Mains – LED Driver – Low Voltage Dimmer – Low Voltage LEDs  18v switching power supply

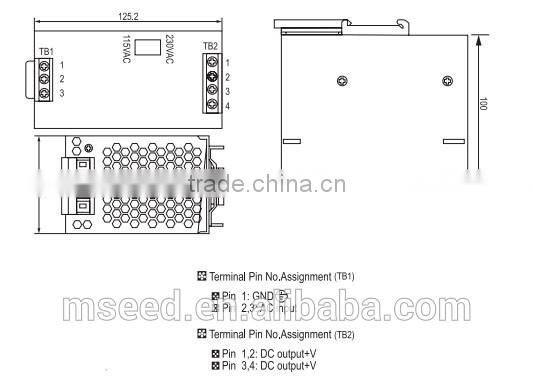

Dimension
Packing Details

Being packed according to the international standard is to guarantee safe delivery during the transportation.

Why Choose Us

•Professional manufacturer with internationally standard production lines and a devoted technical team.

•Strict test procedure with advanced test equipment

•Responsive and responsible service team.

•Door to door service when needed.

•Helpful and enthusiastic in developing the buyers’ business.


•Treat your career as our career.
