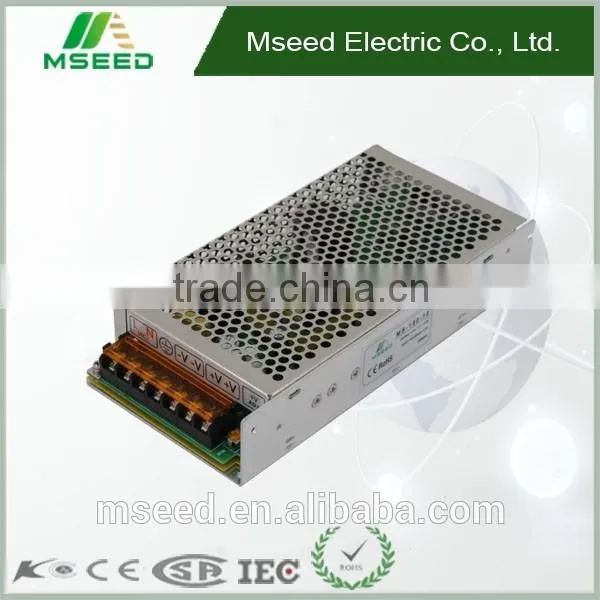

Switching Power Supply MS-150^ With Good Quality Switch Mode Power Supply

Switching Power Supply MS-150^ With Good Quality Switch Mode Power Supply thumbnail-1
Switching Power Supply MS-150^ With Good Quality Switch Mode Power Supply thumbnail-2
Switching Power Supply MS-150^ With Good Quality Switch Mode Power Supply thumbnail-3
Switching Power Supply MS-150^ With Good Quality Switch Mode Power Supply photo-1

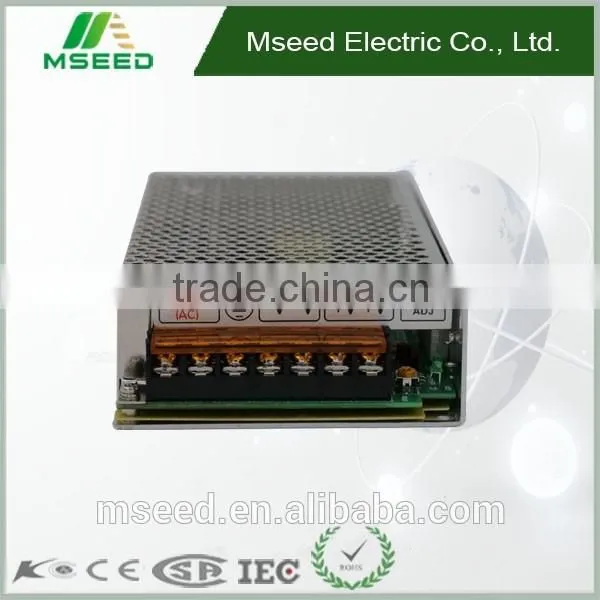

Switching Power Supply MS-150^ With Good Quality Switch Mode Power Supply photo-2

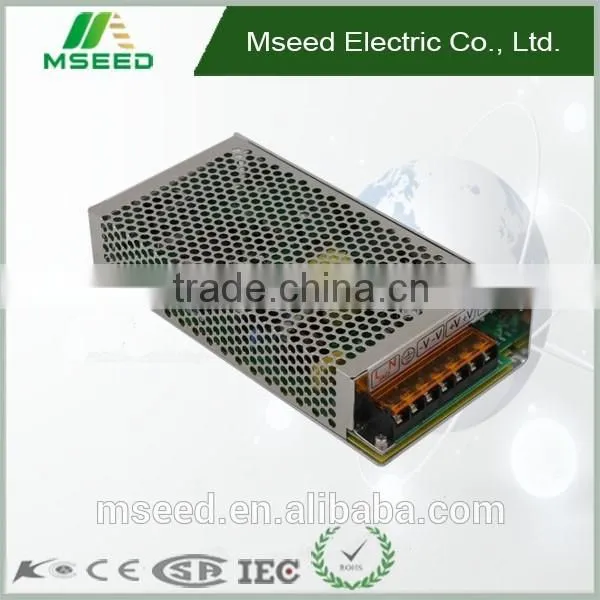

Switching Power Supply MS-150^ With Good Quality Switch Mode Power Supply photo-3
US$ 6.1 - 8.1 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Mseed
Model Number:
MS-150
Contact Supplier Request Quote Chat Now
Wenzhou Mseed Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Mseed
Model Number MS-150
Output Power Other, 150W
Output Type Single
Input Voltage Other, 90-130VAC/170-260VAC
Output Voltage 5V/12V/24V
Output Frequency 50Hz
Product Details
Product Introduction

Quick details.

Place of Origin: Zhejiang, China (Mainland)
Brand Name: Mseed
Model Number:MS-150
Output Power: 150W
Output Type: Single  150w switching power supply
Input Voltage: 90-130VAC/170-260VAC
Output Voltage:5V/12V/24V
Output Frequency: 50Hz   12v 60a switching power supply

Safety: IEC CE ROSH SAA KC switching power supply

Features

• Universal AC input / Full range
• Protections:Short circuit/Over load/Over voltage
• Built-in cooling Fan ON-OFF control
• 100% full load burn-in test
• Fixed switching frequency at 25KHz         12v 60a switching power supply
• Load stability +/-0.5%
•Low ripple noise   150w S.M.P.S. switching power supply
•High withstand voltage insulation
•Operation temperature high up to 70℃
•Meet EN61347 standard, CE certificates
•2-year warranty  switching power supply

Parameters
Model
MS150-5
MS150-7.5
MS150-12
MS150-15
MS150-24
MS150-36
MS150-48
Input
Voltage Frequency
90-130VAC/170-260VAC selected by swit 47-63Hz; 240-370VDC
Current
2A/150V 1A/130V
Efficiency(AC220V)
78%
80%
81%
81%
84%
84%
83%
Inrush Current
30A/115V 60A/230V at cold start
Output
Voltage
5V
7.5V
12V
15V
24V
36V
48V
Current
28A
20A
12.5A
10A
6.25A
4.2A
3.2A
Regulation Line
±0.5%
±0.5%
±0.3%
±0.3%
±0.2%
±0.2%
±0.2%
Regulation Load
±1%
±0.5%
±0.3%
±0.3%
±0.2%
±0.2%
±0.2%
Ripple Noise
≤50mVp-p
≤60mVp-p
≤60mVp-p
≤60mVp-p
≤100mVp-p
≤100mVp-p
≤120mVp-p
Temperature Drift
±0.02% / ℃(0-50℃)
Rated Power
140W
150W
150W
150W
150W
151W
154W
Rise&Holding Time
200ms,100ms, 30ms
Circuit Protection
Over Current Protection
Works at over 105%-120% of rating and recovers automatically
Over Voltage Protection
/
Over-Heat Protection
/
Withstand voltage Insulation
Input-Output
AC1500V;500VDC/100MΩ
Input-Case,FG
AC1500V;500VDC/100MΩ
Output-Case,FG
AC500V;500VDC/100MΩ
Environment
Operating Temp and Humid
(-10)℃- (+60)℃, 20%-90%RH
Storage Temp and Humid
(-20)℃- (+85)℃, 10%-95%RH
Vibration
10-500Hz at 2G, 10minutes period,60minutes along X, Y and Z axis
Safety
Safety Regulation
IEC CE ROSH SAA KC
EMC
IEC / EN60950-1 EN61347-1:2008
IP
IP
IP22
Applications

These products are Constant Voltage LED Drivers. For dimming purpose, please equip with compatible low voltage dimmer switches and arrange your circuit in the following sequence:
50v switching power supply
Mains – LED Driver – Low Voltage Dimmer – Low Voltage LEDs

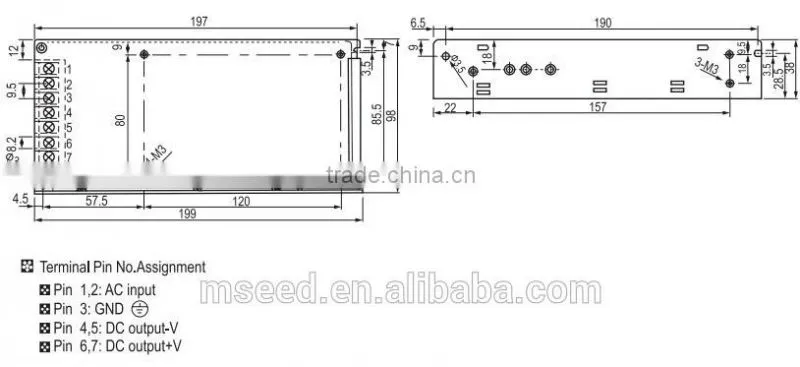

Dimension
Packing Details

Being packed according to the international standard is to guarantee safe delivery during the transportation.

Why Choose Us

•Professional manufacturer with internationally standard production lines and a devoted technical team.

•Strict test procedure with advanced test equipment

•Responsive and responsible service team.

•Door to door service when needed.

•Helpful and enthusiastic in developing the buyers’ business.


•Treat your career as our career.
