Hot Sale Switching Power Supply MS-100 %^with Good Quality Switch Mode Power Supply

Wenzhou Mseed Electric Co., Ltd.
Hot Sale Switching Power Supply MS-100 %^with Good Quality Switch Mode Power Supply thumbnail-1
Hot Sale Switching Power Supply MS-100 %^with Good Quality Switch Mode Power Supply thumbnail-2
Hot Sale Switching Power Supply MS-100 %^with Good Quality Switch Mode Power Supply thumbnail-3
Hot Sale Switching Power Supply MS-100 %^with Good Quality Switch Mode Power Supply photo-1
Hot Sale Switching Power Supply MS-100 %^with Good Quality Switch Mode Power Supply photo-2

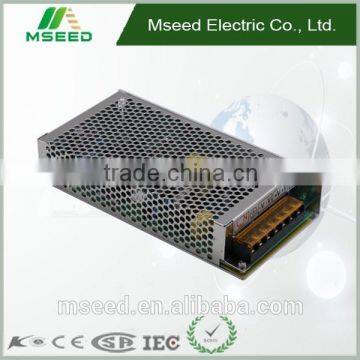

Hot Sale Switching Power Supply MS-100 %^with Good Quality Switch Mode Power Supply photo-3
US$ 5.4 - 7.5 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Mseed
Model Number:
MS-100
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Mseed
Model Number MS-100
Output Power Other, 100W
Output Type Single
Input Voltage Other, 90-130VAC/170-260VAC
Output Voltage 5V/12V/24V
Output Frequency 50Hz
Product Details
Product Introduction

Quick details.

Place of Origin: Zhejiang, China (Mainland)
Brand Name: Mseed
Model Number:MS-100
Output Power: 100W
Output Type: Single  5v 30a switching led power supply
Input Voltage: 90-130VAC/170-260VAC
Output Voltage:5V/12V/24V
Output Frequency: 50Hz

Safety: IEC CE ROSH SAA K switching power supply

Features

• Universal AC input / Full range
• Protections:Short circuit/Over load/Over voltage
• Built-in cooling Fan ON-OFF control
• 100% full load burn-in test
• Fixed switching frequency at 25KHz         led switching power supply
• Load stability +/-0.5%
•Low ripple noise   100w S.M.P.S. switching power supply
•High withstand voltage insulation
•Operation temperature high up to 70℃
•Meet EN61347 standard, CE certificates

* 2 years warranty  switching power supply
Parameters
Model
MS100-12
MS100-15
MS100-24
MS100-36
MS100-48
Input
Voltage Frequency
170-260VAC, 47-63Hz; 240-370VDC
Current
0.7A/230V
Efficiency(AC220V)
73%
73%
75%
76%
76%
Inrush Current
30A/230V 30A/230V at cold start
Output
Voltage
12V
15V
24V
36V
48V
Current
8A
6A
4A
2.7A
2.1A
Regulation Line
1%
1%
1%
1%
1%
Regulation Load
1%
1%
0.5%
0.5%
0.5%
Ripple Noise
≤120mVp-p
≤150mVp-p
≤240mVp-p
≤360mVp-p
≤480mVp-p
Temperature Drift
±0.03% / ℃(0-50℃)
Rated Power
75W
75W
75W
75W
75W
Rise&Holding Time
1s, 100ms, 50ms
Circuit Protection
Over Current Protection
Works at over 105%-120% of rating and recovers automatically
Over Voltage Protection
Over-Heat Protection
Withstand voltage Insulation
Input-Output
AC1500V;500VDC/100MΩ
Input-Case,FG
AC1500V;500VDC/100MΩ
Output-Case,FG
AC500V;500VDC/100MΩ
Environment
Operating Temp and Humid
(-10)℃- (+60)℃, 20%-90%RH
Storage Temp and Humid
(-20)℃- (+85)℃, 10%-95%RH
Vibration
10-500Hz at 2G, 10minutes period,60minutes along X, Y and Z axis
Safety
Safety Regulation
IEC CE ROSH SAA KC
EMC
IEC / EN60950-1 EN61347-1:2008
IP
IP
IP22
Applications

These products are Constant Voltage LED Drivers. For dimming purpose, please equip with compatible low voltage dimmer switches and arrange your circuit in the following sequence:
bi switching power supply
Mains – LED Driver – Low Voltage Dimmer – Low Voltage LEDs

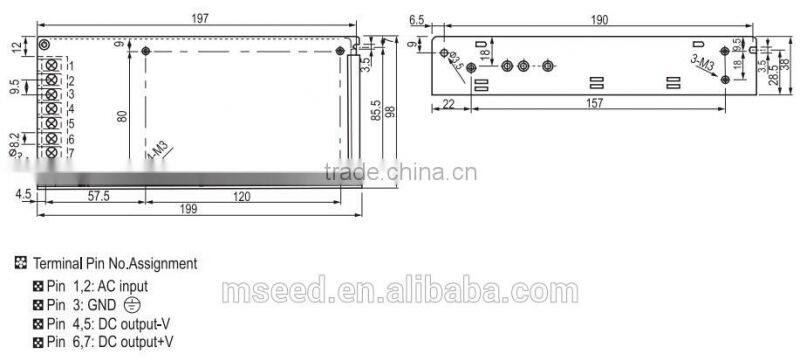

Dimension
Packing Details

Being packed according to the international standard is to guarantee safe delivery during the transportation.

Why Choose Us

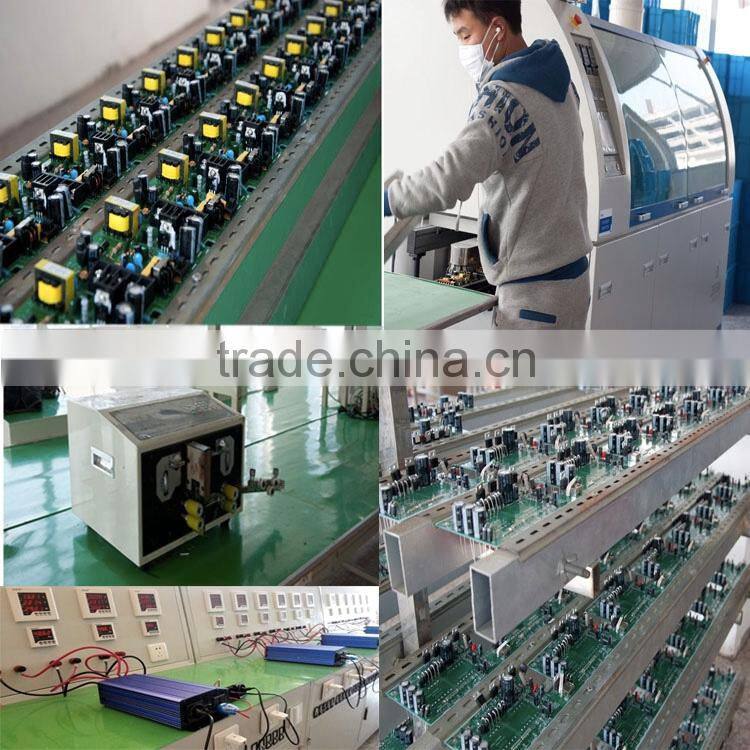

•Professional manufacturer with internationally standard production lines and a devoted technical team.

•Strict test procedure with advanced test equipment

•Responsive and responsible service team.

•Door to door service when needed.

•Helpful and enthusiastic in developing the buyers’ business.


•Treat your career as our career.

Certifications:

Welcome to contact us:

For sales or information inquiry, please contact us in the following ways:
Mob:+8613588948320
Tel: +86-577-55770369
Skype: angelwu7777(+86-13588948320)
Trade messenger:Angel Wu
Website: http://mseed.en.china.cn
