Specifications

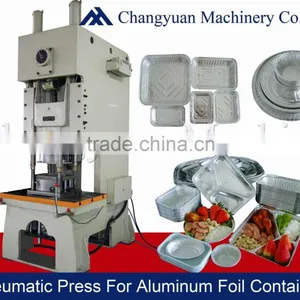

Aluminium Container Machine:1.Steady & good quality.
2.Adopt SIEMENS Motor & PLC
3.Pass ISO 9001:2008
Aluminium Container Machine is Fully Automatic machine, Adopt imported Seimens motor & PLC and Schneider electronic componets to make sure the machine's top quality, the whole line include:
Auto-lubricated feeder -- control panel -- length controller-- 45T pneumatic press --mould-- full-automatic stacker—Scrap Presser
1).Adopt imported brand &best quality PLC control system anf electric components,make sur the producing ahd running more accurately and steady.
2).We are desinging & making mould by ourself for 8 years,after finishing the mould,we testing on machine time by time to make sure the good quality and high precision,also can according to customer sample to make one cavity,2 cavites,and mulit cavites moulds.
3).The feeding system control feeding length and stepping by computer,which assure a high-precision steps.
4). Our company’s adwantage is that:we can according to your target price and requirment to make the right model for you.
Main Technical data:
ITEM |
CYAL-45T |
CYAL-63T |
Strokes |
40-75times/min |
30-70times/min |
Motor Capacity |
6.5KW |
7.9KW |
Voltage |
3-380V 50HZ 4wires |
3-380V 50HZ 4wires |
Total Weight |
6500KGS (approximate) |
7500KGS (approximate) |
Area |
7mx3m |
7mx3m |
Press Dimension |
1620x1050x2960 |
1820x1250x3080 |
Core Coil Head Dia |
3min/6inch |
3min/6inch |
Max. Foil Roll Outer Dia |
700mm |
800mm |
Max. Foil Width |
550mm |
670mm |
Machine Parts:
Auto feeding part:
Pneumatic press:
Mould:
Auto Stacker:
Finished Products:
