Help CenterStainless Steel 2PC Ball Valve, Threaded End, 1000PSI WOG Quality Choice
Related Products
We Tianjin Ansheng Valve Co., Ltd specialize in valve manufacturing for 15 years, with best quality, best service and competitive price, and we are Alibaba Gold Supplier.
More services we can provide:
1. Professional free design
2. OEM support
3. Low MOQ
4.Fast delivery
5. Free sample
6. Door to door service
Stainless Steel 2PC Ball Valve, Threaded End, 1000PSI WOG
Application Norm
Size:1/4"-4"(DN8-DN100)
Working pressure:1000psi-2000psi
Temperature range: -40°c~+180°c ~ +250°c
Suitable medium:Gas Water Oil Acid

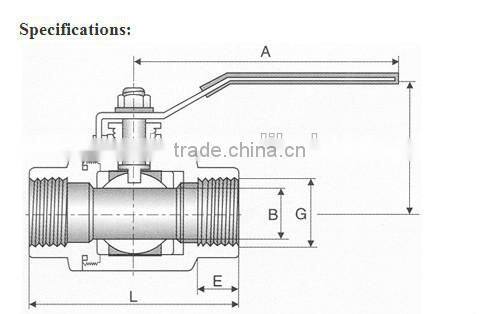

Main Outer Size:
| DN | G | B | L | E | H | A |
| 8 | 1/4" | 8 | 54 | 11.5 | 52 | 105 |
| 10 | 3/8" |
10 | 54 | 11.5 | 52 | 105 |
| 15 | 1/2" | 15 | 62.5 | 14 | 65 | 135 |
| 20 | 3/4" | 20 | 73.5 | 15 | 70 | 135 |
| 25 | 1" | 25 | 86 | 15 | 78 | 150 |
| 32 | 1-1/4" | 32 | 101 | 18 | 82 | 180 |
| 40 | 1-1/2" | 40 | 110 | 19 | 90 | 200 |
| 50 | 2" | 50 | 123 | 19 | 98 | 200 |
| 65 | 2-1/2" | 65 | 165 | 23 | 140 | 240 |
| 80 | 3" | 80 | 190 | 25 | 135 | 260 |
| 100 | 4" | 100 | 220 | 28 | 170 | 300 |

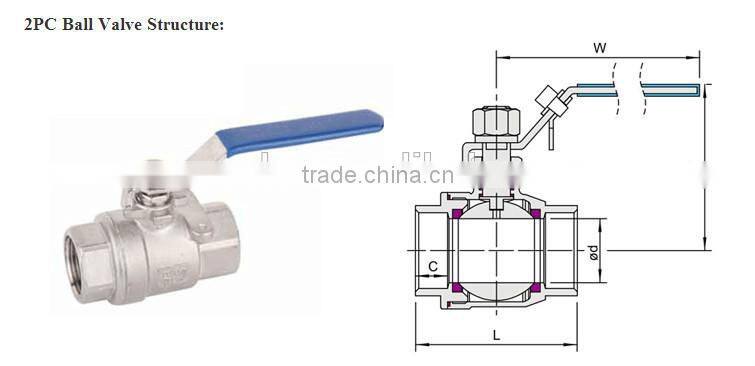

Main parts and materials:
Temperature: -40°c~+180°c -40°c~+230°c
| PART NAME | MATERIAL |
| Joint Ring | PTFE |
| Ball | SS201,304,316 |
| Joint Gasket | PTFE |
| Cap | SS201,304,316 |
| Body | SS201,304(CF8),316(CF8M) |
| Stem | SS201,304,316 |
| Thrust Washer | PTFE |
| Stem Packing | PTFE |
| Gland Nut | SS201,304,316 |
| Stem Washer | SS201,304,316 |
| Stem Nut | SS201,304,316 |
| Handle Cover | PLASTIC |
| Handle | SS201,304 |
1. Shrink bag --> 2. Small Box --> 3. Carton --> 4.Strong Plywood Case
1.100% factory price, because we are direct producer of butterfly valves, check/non-return valves, gate valves and so on.
2.Market, technical support and after-sale service within 24 hours.
3. You can order your own configuration.
A: Manual B: pneumatic C: electric D: bare shaft E: disc with pin F: disc without pin G: double half shaft H: one piece body I: two pieces body J: logo
4.All valves are tested twice before and after hammer pin to ensure its perfect sealing property.
5.Valves' back seats are phenolic resin under DN350 while above DN400 are aluminium back seat to prolong its working life.
6.Concentric valves can ensure zero leakge.
Our factory & Workshop:
Our company established in year 2001. Our plant occupies 6000 square kilometers and we have more than 100 sets of lathes. We are professional Valve manufactuer for about 20 years. We have 4 Engineers, 10 more Technicians, 10 more Craftsmen.
Our Customers
1.What's payment terms?
30% down payment, 70% balance paid before shipment.
2.What's MOQ?
One set.
3.How control the quality of globe valve?
Select high quality raw material
Strict required during machining
Seat material comply with food grade
Tested twice to insure zero leakage
First copper plating disc, then nickle plating disc to increase the adhesiveness
4.Delivery time?
15-25 days after received the advance payment.
24 hours online chat tool:
A good supplier is here waiting for you
